32/1531-ANF 901 43 Uen B2 2016-04-01
Installation Guide
Base Station
18

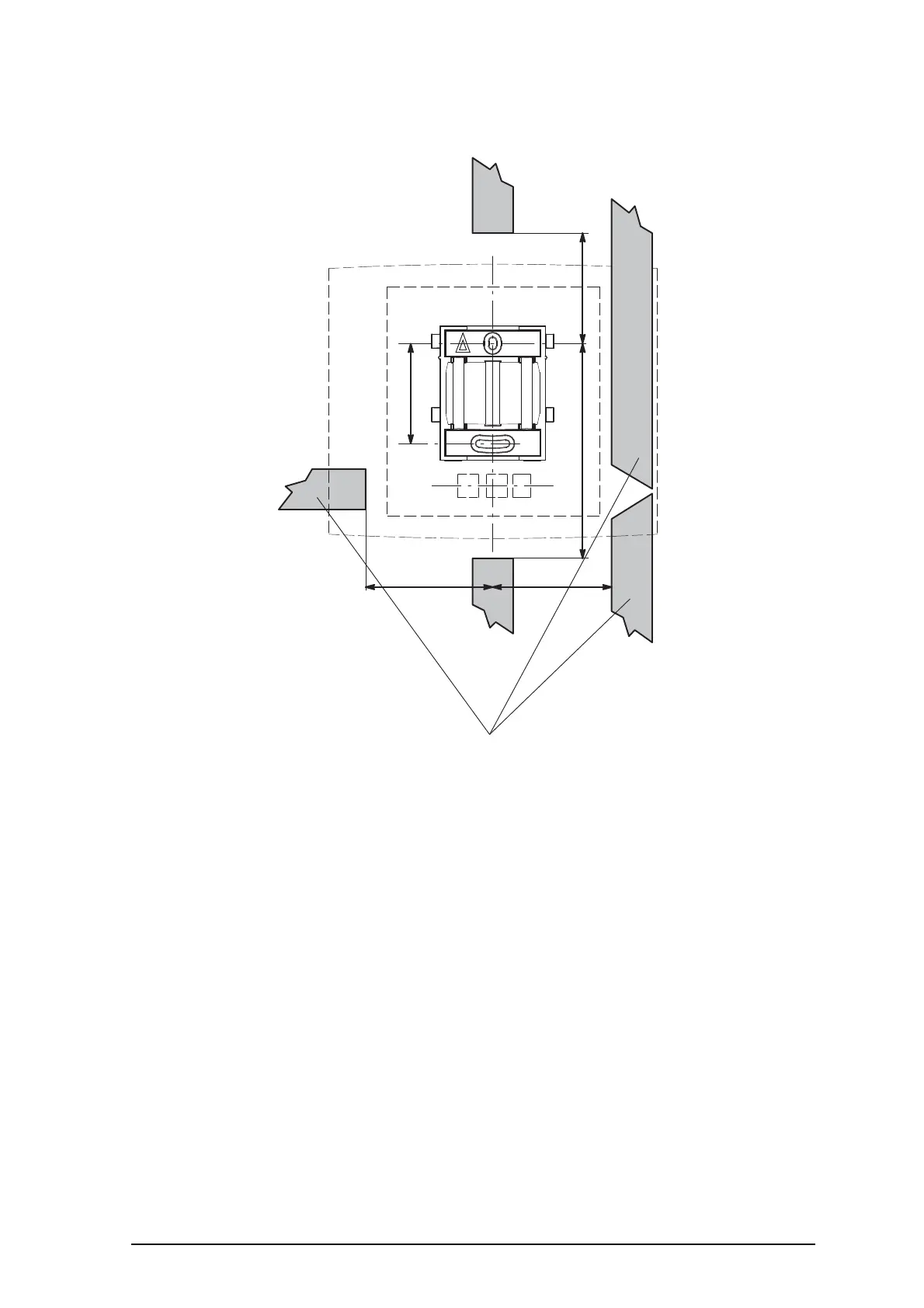

Figure 9. Minimum distances between a cable duct and the mounting bracket.
3.2.5 CONNECT EXTERNAL ANTENNAS (ONLY IPBS4X2 AND BS3X2)
1 Position the included antenna bracket above the mounting bracket with a
minimum distance of 74 mm (250 mm maximum) and mark the two holes for the
antenna bracket, see figure 10 on page 19 (1).
2 When using wall plugs: Drill the two holes using a 6 mm drill and insert the
included wall plugs.
3 Position the antenna bracket to the wall and fasten it with the two included
3.5 mm screws.
4 Mount the two included coaxial cables on the antenna bracket figure 10 on page
19 (2). Fasten the coaxial cables with the lock nuts which are found on the
coaxial cable antenna connectors.
5 Mount the antennas on the antenna connectors (2).
TOP
65
mm
125 mm
70 mm75 mm
57 mm
15 mm thick cable ducts
013
