3. POSITIONING SIGNALS
3 − 30
(14) Speed change "0" accepting flag (M2240 to M2271)............Signal from PCPU
to SCPU

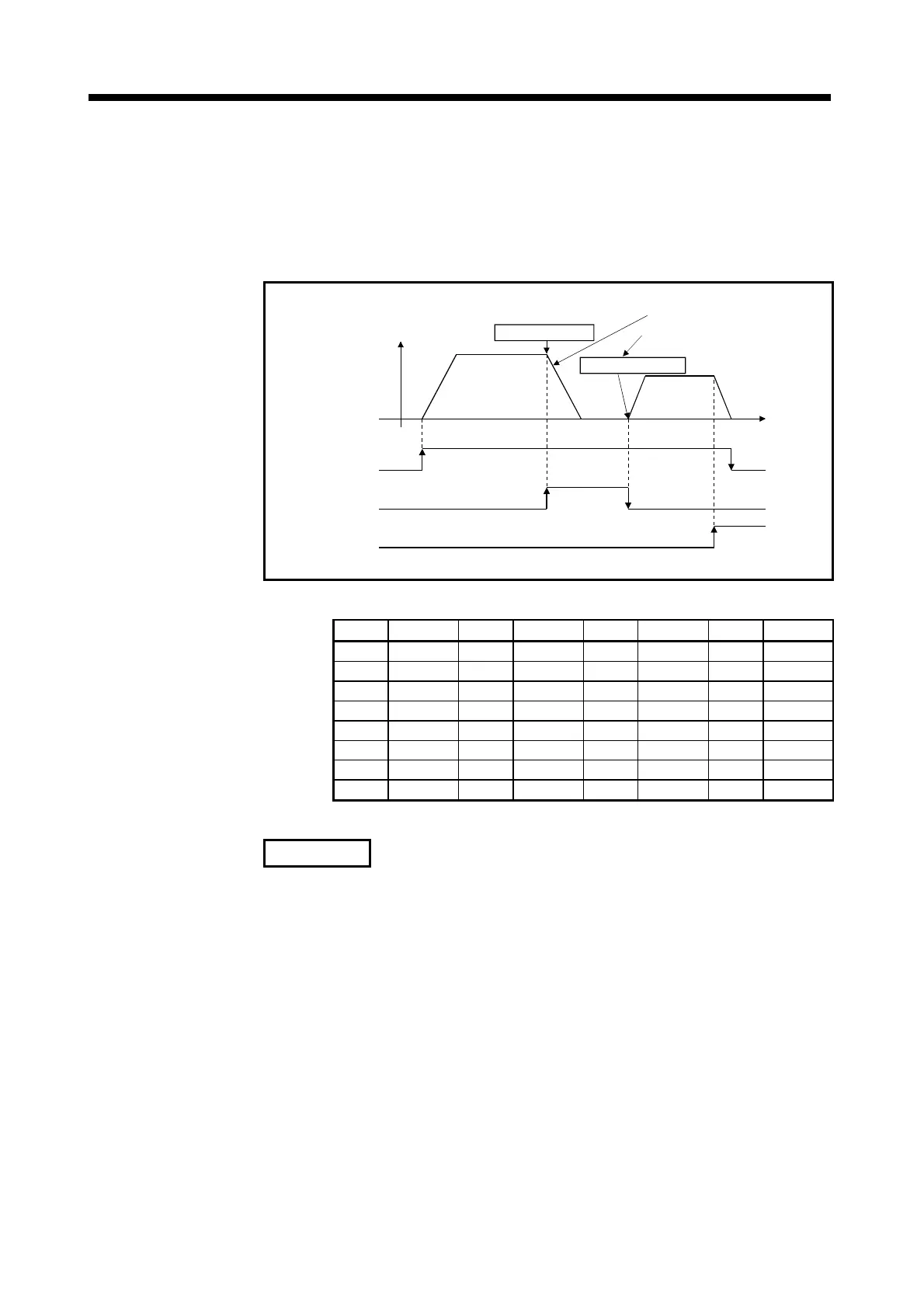

The speed change "0" accepting flag is ON while a speed change request for
speed "0" is being accepted.
This signal turns ON when the speed change request for speed "0" is
accepted during a start. After that, this signal turns OFF when a speed change
to other than speed "0" is accepted or on completion of a stop due to a stop
cause.
V
t
S
tart acceptance
f
lag
ON
OFF
S
peed change "0"
a
ccepting flag
Positioning
c
ompletion
Speed change "0"
Speed change V2
Decelerated to stop when speed
change "0" is accepted.
Thereafter, restarted when
speed is changed to other than 0.
V
1
V
2
The speed change "0" accepting flag list is given below.
Axis No. Device No. Axis No. Device No. Axis No. Device No. Axis No. Device No.
1
M2240
9
M2248
17
M2256
25
M2264
2
M2241
10
M2249
18
M2257
26
M2265
3
M2242
11
M2250
19
M2258
27
M2266
4
M2243
12
M2251
20
M2259
28
M2267
5
M2244
13
M2252
21
M2260
29
M2268
6
M2245
14
M2253
22
M2261
30
M2269
7
M2246
15
M2254
23
M2262
31
M2270
8
M2247
16
M2255
24
M2263
32
M2271
REMARK
(1) Even during a stop, the ON status of the start acceptance flag (M2001 to
M2032) indicates that the speed change "0" request is accepted. Check
with this speed change "0" flag.
(2) During interpolation, the flags corresponding to the interpolation axes are
set.
(3) In any of the following cases, the speed change "0" request is invalid.
• After deceleration due to JOG OFF
• During manual pulse generator operation
• After positioning automatic deceleration start
• After deceleration due to stop cause
(4) In the SV22 virtual mode, the flag is that of the virtual servo motor shaft.
