10. PROGRAMMING
10 - 41

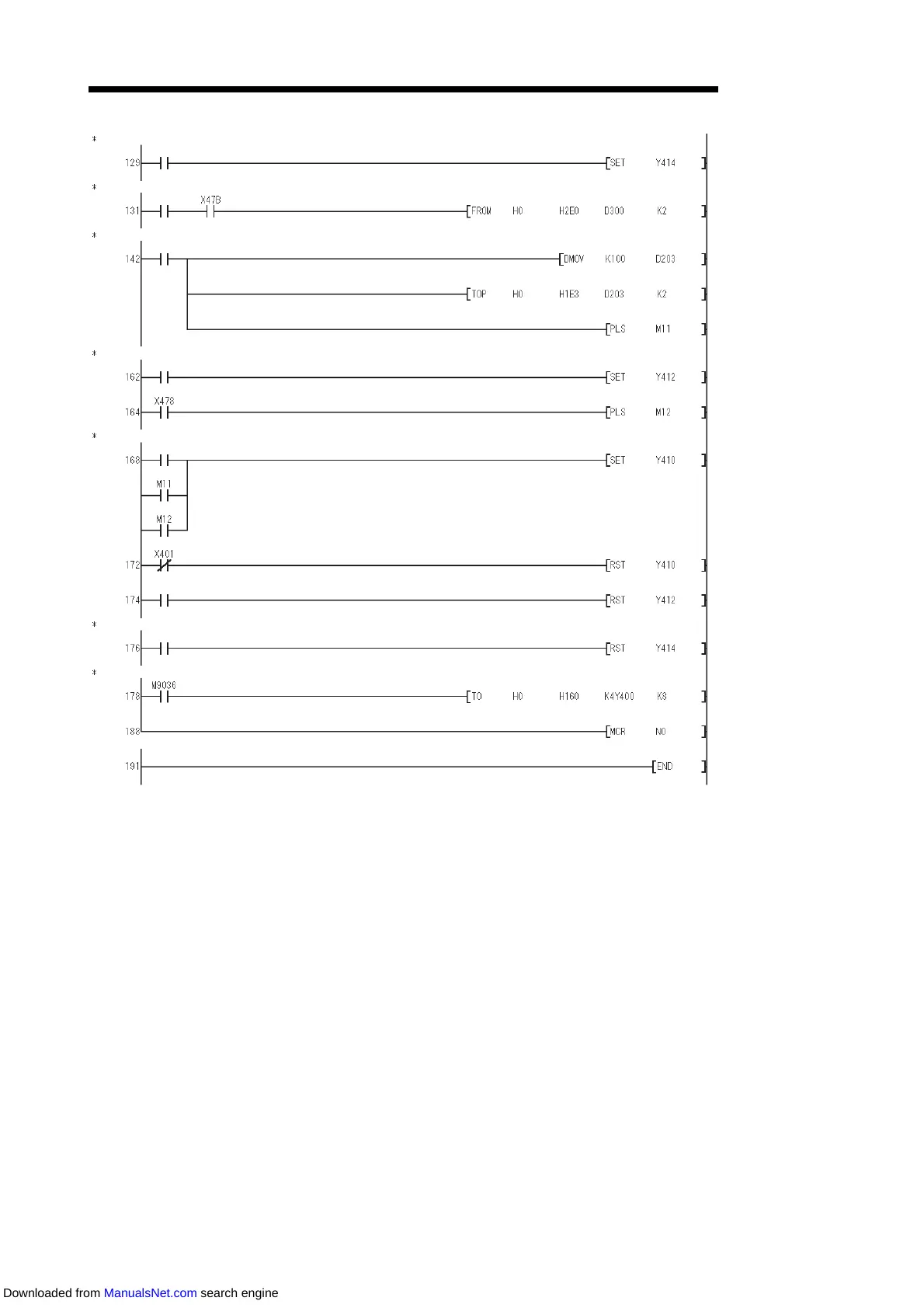

Pulse count start
Start of counting
Current value reading
Current value
reading
Coincidence output data settings
Coincidence output data settings
Coincidence output command
Coincidence output command
Coincidence signal reset
Coincidence signal reset
Coincidence output reset
Pulse count stop
Stop of counting
Remote output signal write
CH.1 count enable
(RY14) is ON.
CH.1 current value
(RWr0, RWr1) is read.
CH.1 coincidence output
point No. 1 is set.
(RWw3, RWw4): 100
Write to master station
CH.1 coincidence output
enable (RY12) is ON.
CH.1 point No. 1
coincidence signal reset
command (RY10) is ON.
CH.1 point No. 1
coincidence signal reset
command (RY10) is OFF.
CH.1 coincidence output
enable (RY12) is OFF.
CH.1 count enable
(RY14) is OFF.
RY00 to RY7F is written
to Y400 to Y47F.
