2. SYSTEM CONFIGURATION
2 - 2
2.2 Applicable System
Application system is described.
(1) Applicable master module
For available master modules, visit the CC-Link Partner Associations (CLPA)
website at:
http://www.cc-link.org/
REMARK
Check the specifications of the master module before use.
POINT
When AJ61BT11, A1SJ61BT11, AJ61QBT11 and A1SJ61QBT11 are used, be
sure to use the type with the number (9707 B or later) in the date column of
the rating nameplate shown below. The system cannot be used with the
module which does not indicate "9707 B" in the date column.

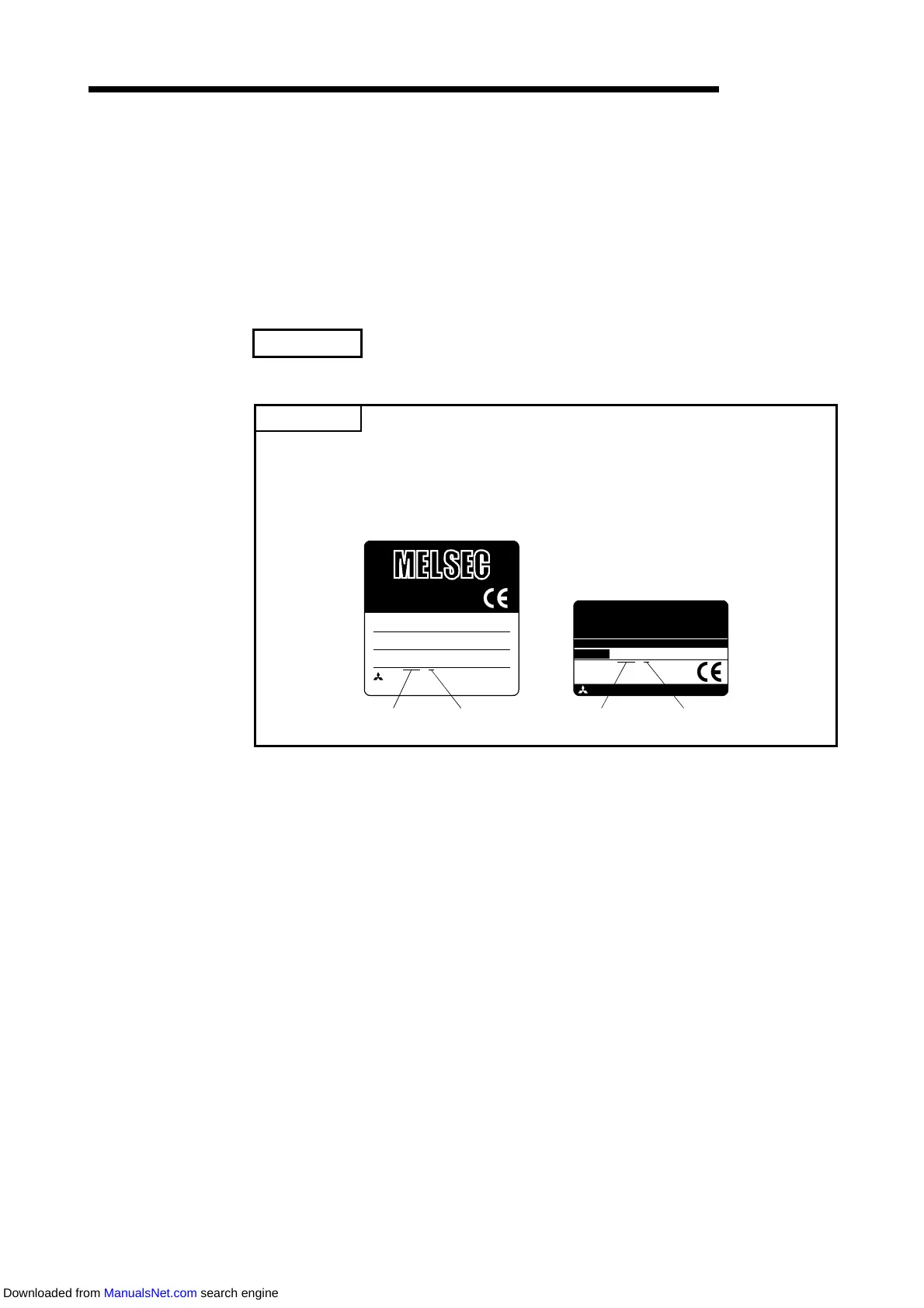

MITSUBISHI
MITSUBISHI ELECTRIC BD992D008H40
CPU UNIT
MODEL
DATE
PROGRAMMABLE CONTROLLER
DATE 9707 B
MITSUBISHI ELECTRIC CORPORATION JAPAN
BD992D008H40
9707 B
Manufacturing
y
ear and month
Function version
Manufacturing
y
ear and month
Function versio
n
<Large type>
<Small type>
(2) Limitations for use of dedicated command (RLPA, RRPA) for CC-Link
The dedicated command (RLPA, RRPA) for CC-Link may not be used depending
on the programmable controller CPU and the master module.
For details of limitations, refer to the A series master module user's manual
(Detail) and the AnSHCPU/AnACPU/AnUCPU programming manual (Dedicated
command).
Dedicated commands other than RLPA and RRPA cannot be used on the high-
speed counter module.
Refer to Section 10.5 for a program example using dedicated command (RLPA,
RRPA).
