2. SYSTEM CONFIGURATION
2 - 1
2. SYSTEM CONFIGURATION
This chapter describes a system configuration using the high-speed counter module.
2.1 Overall Configuration

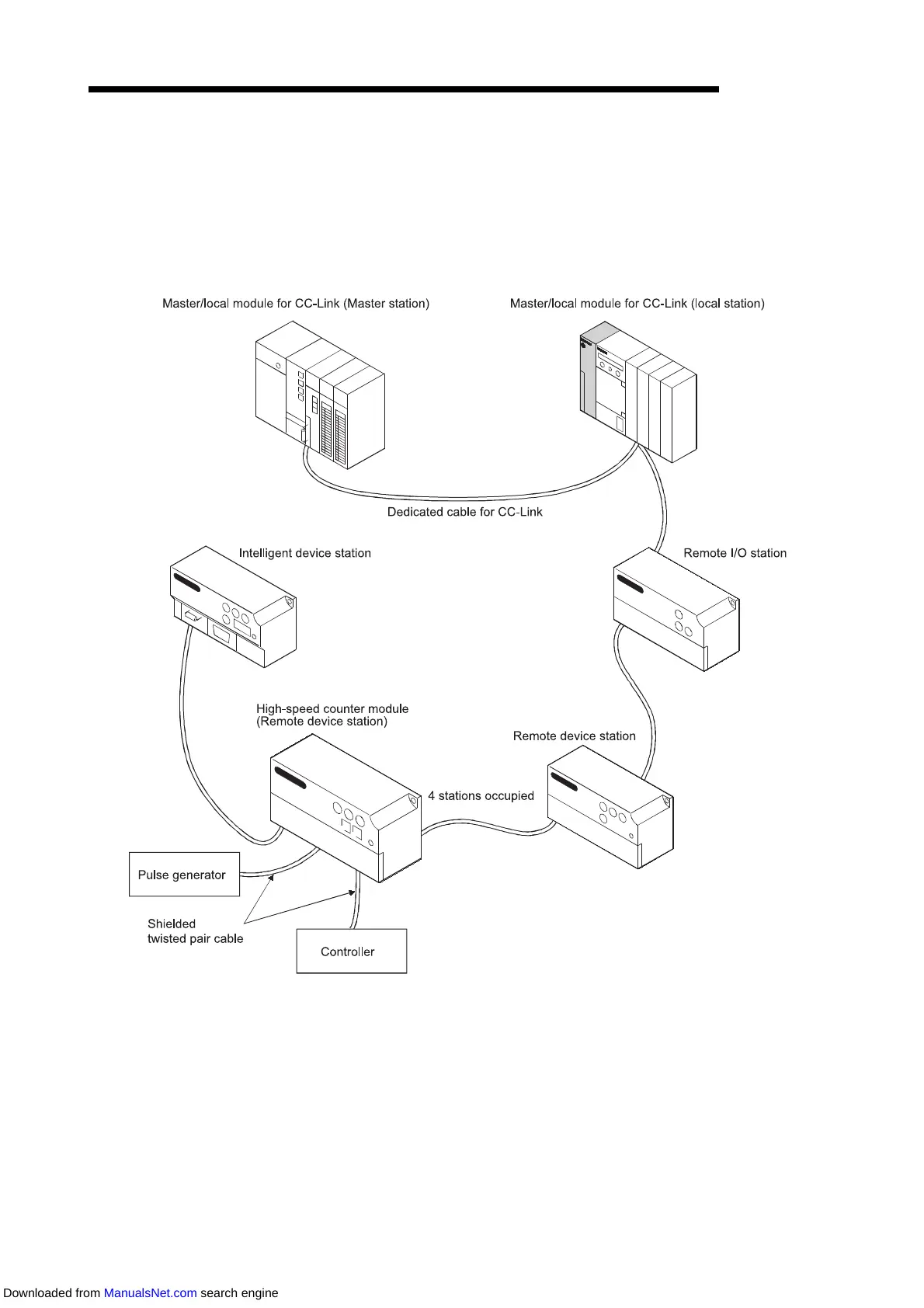

The overall configuration using the high-speed counter module is shown below.
