Mitsubishi Electric AJ65BT-D62 - Wiring Examples of Controller and External Input (PRESET, F.START) Terminals

MELSEC-A
4. INSTALLATION AND PRE-OPERATION SETTING PROCEDURE
4 - 14

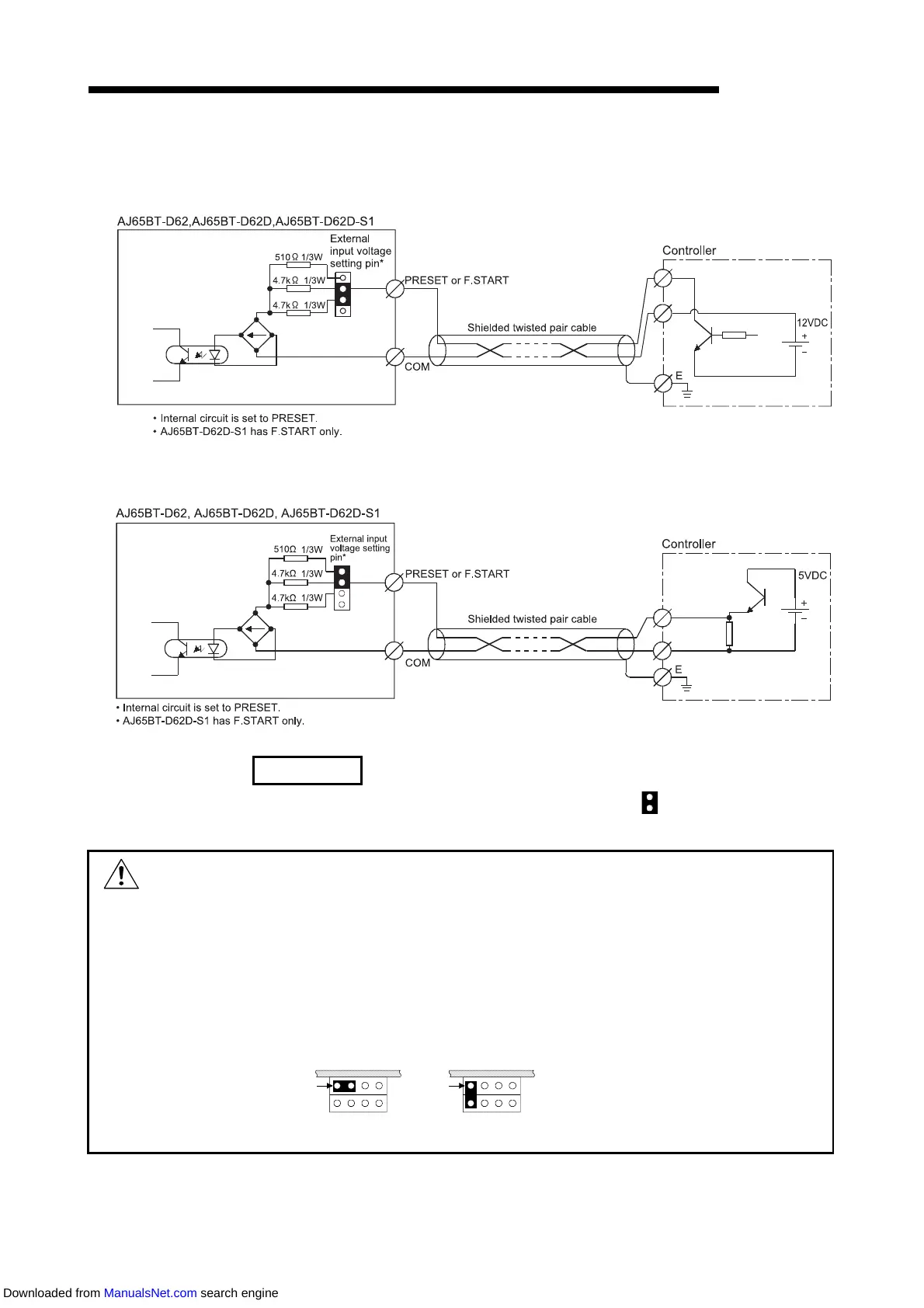

4.6.4 Wiring examples of controller and external input (PRESET, F.START) terminals
(1) Controller (sink load type) is 12V
(2) Controller (source load type) is 5V
REMARK
* ............. Set the external input voltage setting pins in the position.
CAUTION
 Set the pulse/external input voltage setting pins correctly after confirming the
rated voltage of the external power supply.
Miss-wiring (wrong setting) can cause a fire or failure.
 The pulse/external input voltage setting pins must be set after switching power
off externally in all phases.
Otherwise, the module can fail or misoperate.
 Set the jumper to the pulse/external input voltage setting pins in the correct
inserting orientation.
Otherwise, a failure can occur.
<Correct>
Jumper Jumper
<Incorrect>
