Mitsubishi Electric AJ65BT-D62 - 4.3 Part Names and Settings

MELSEC-A
4. INSTALLATION AND PRE-OPERATION SETTING PROCEDURE
4 - 4

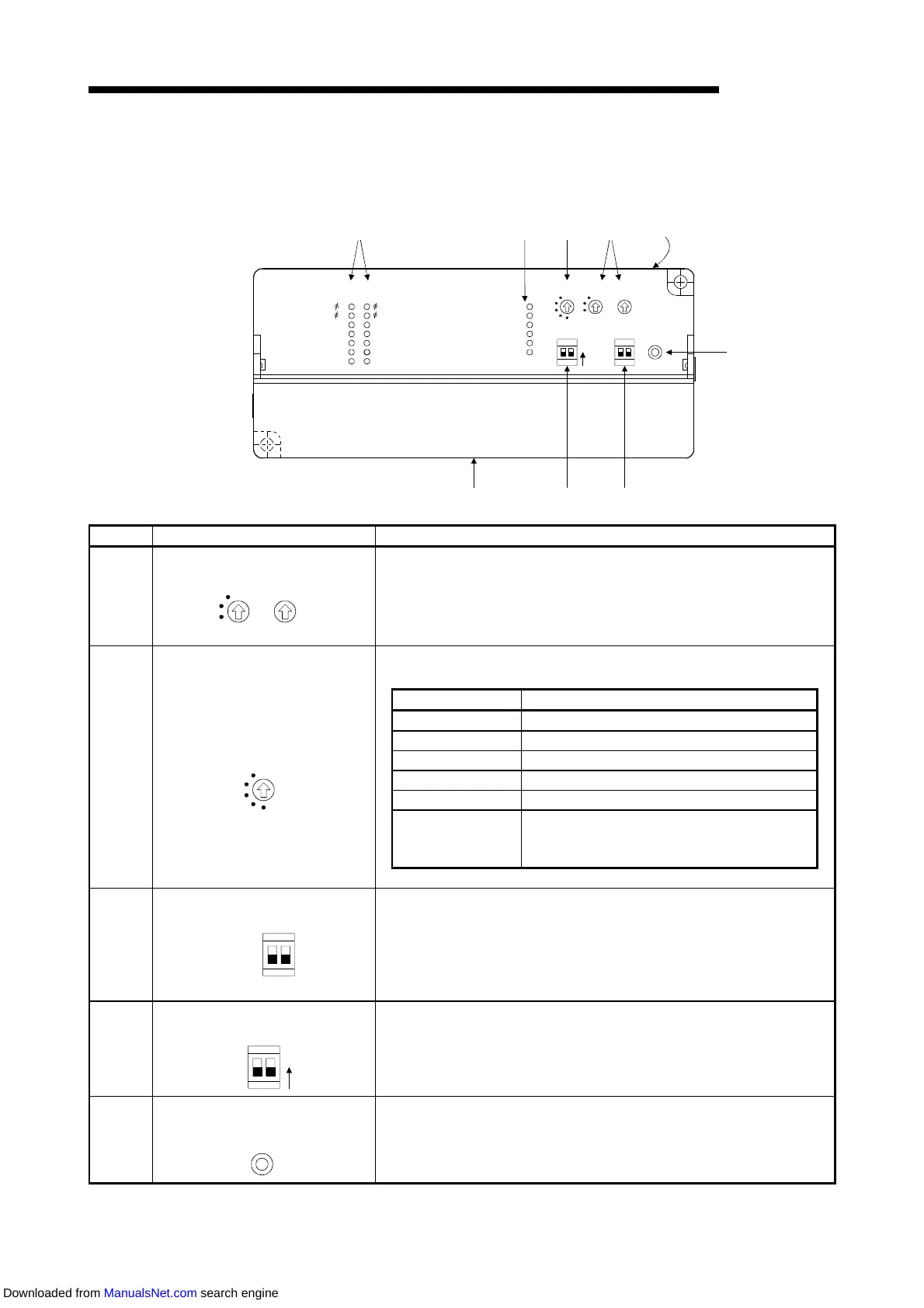

4.3 Part Names and Settings
This section gives the names and settings of the high-speed counter module
controls.
1)2)6)7)
5)
4
)
3
)
8
)
9)
RESET
B RATE STATION NO.
×
10
×
1
5
0
6
9
2
7
8
1
3
4
5
0
6
2
1
3
4
0
2
1
3
4
RING
CH. 1 2
PLS
CH. 1 2
LOW
HIGH
A
DEC
PRE
F ST.
EQU1
EQU2
A
B
DEC
PRE
F ST.
EQU1
EQU2
CH.1 CH.2
ON
PW
RUN
L RUN
SD
RD
L ERR.
MITSUBISHI MELSEC
AJ65BT-D62
B
Number Name Description
1)
Station number setting switches
STATION NO.
×
10
×
1
5
6
9
2
7
8
1
3
4
5
0
6
2
1
3
4
0
Used to set the station number of the high-speed counter module between 1 and
61.
Use "10" to set the tens.
Use "1" to set the modules.
(Factory setting: 00)
2)
Transmission baud rate setting switch Used to set the transmission speed of the high-speed counter module.
(For data link)
B RATE
0
2
1
3
4
Number to Be Set Transmission Baud rate
0 156kbps (factory setting)
1 625kbps
2 2.5Mbps
3 5Mbps
4 10Mbps
Other than 0 to 4
Unused (If the value set is other than 0 to 4, the
L ERR. LED lights up to indicate a communication
error.)
3)
Counting speed setting switch LOW position: Up to 10kPPS can be counted for 1-phase input or up to 7kPPS
for 2-phase input.
HIGH position: Up to 400(200)kPPS can be counted for 1-phase input or up to
300 (200)kPPS for 2-phase input.
Values in parentheses are those for use of the AJ65BT-D62.
(Factory setting: HIGH position)
PLS
CH. 1 2
LOW
HIGH
4)
Ring counter setting switch Used to select whether the ring counter function is used or not.
When using the ring counter: ON
When not using the ring counter: OFF
(Factory setting: OFF position)
ON
RING
CH. 1 2
5)
Reset switch Hardware reset
Used to initialize the remote registers in the high-speed counter module.
By turning this switch on, the initial data processing flag switches on.
R
ESET
