MELSEC-A
4. INSTALLATION AND PRE-OPERATION SETTING PROCEDURE
4 - 9
4.6 Wiring
4.6.1 Connection of cables with the modules

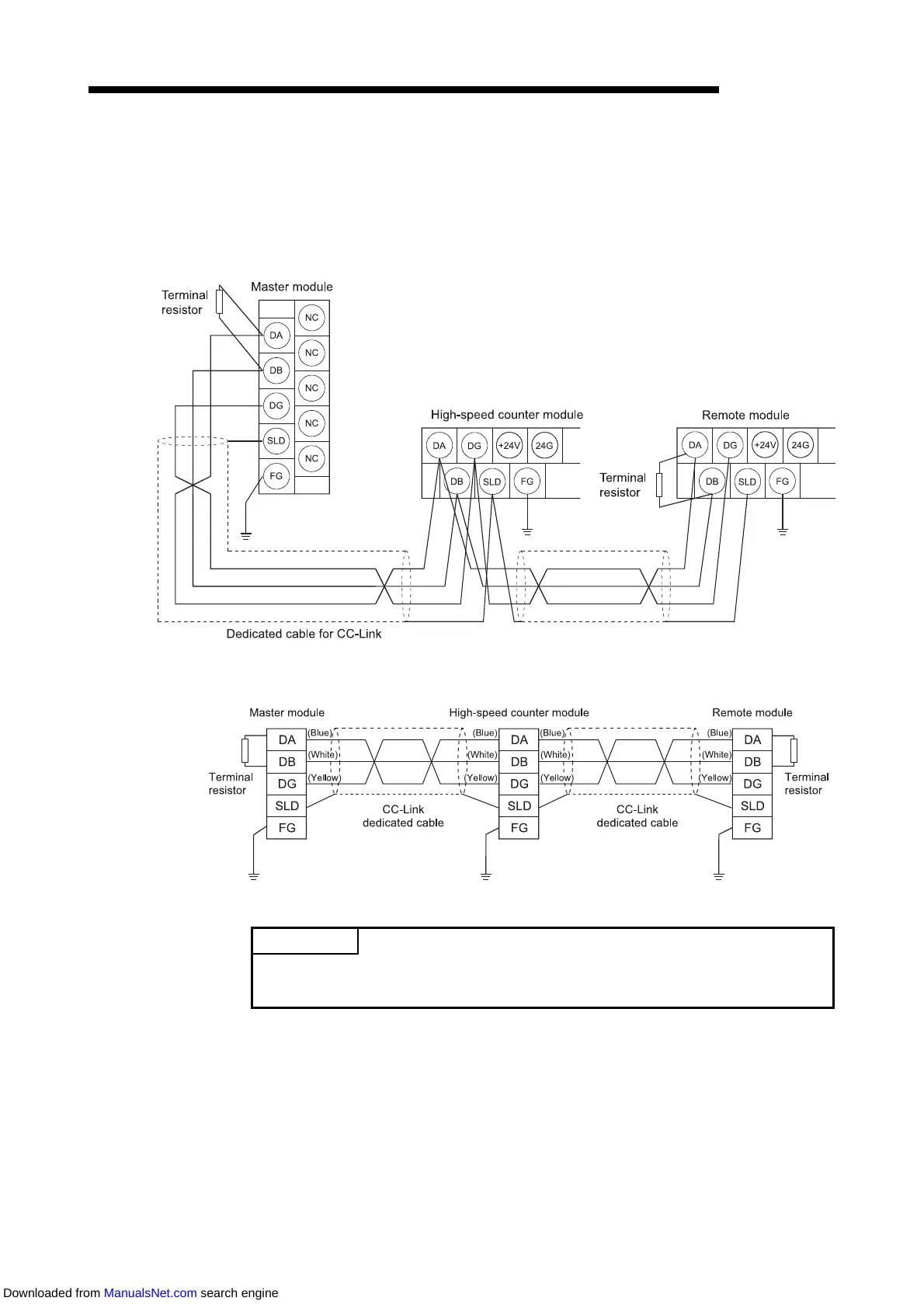

The following diagram shows the wiring of the master module, remote module and
high-speed counter module with dedicated cable for CC-Link.
[Sketch]
POINT
The "terminal resistors" supplied with the master module must be connected to
the modules at both ends of data link. (Connect them across DA-DB.)
