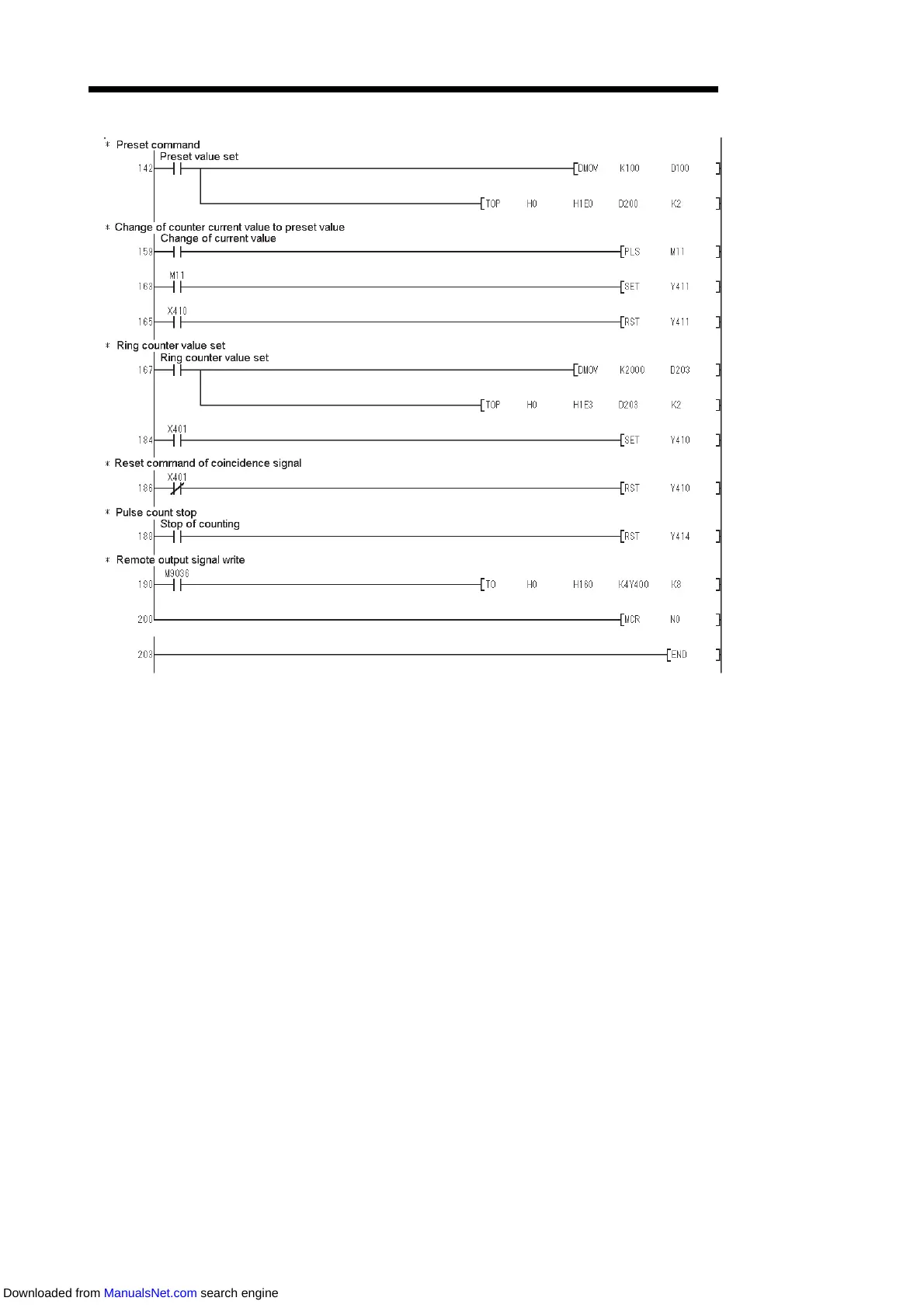

10. PROGRAMMING
10 - 47
CH.1 preset value is set.
(RWw0, RWw1): 100
Write to master station
CH.1 preset command
(RY11) is ON.
CH.1 coincidence
output point No. 1 set
(RWw3, RWw4): 2000
CH.1 count enable
(RY14) is OFF.
CH.1 preset command
(RY11) is OFF.
Write to master station
CH.1 point No. 1
coincidence signal reset
command (RY10) is ON.
CH.1 point No. 1
coincidence signal
reset command
(RY10) is OFF.
RY00 to RY7F is
written to Y400 to
Y47F.
