9. Graphics
9.5 GRF MODE
I-328

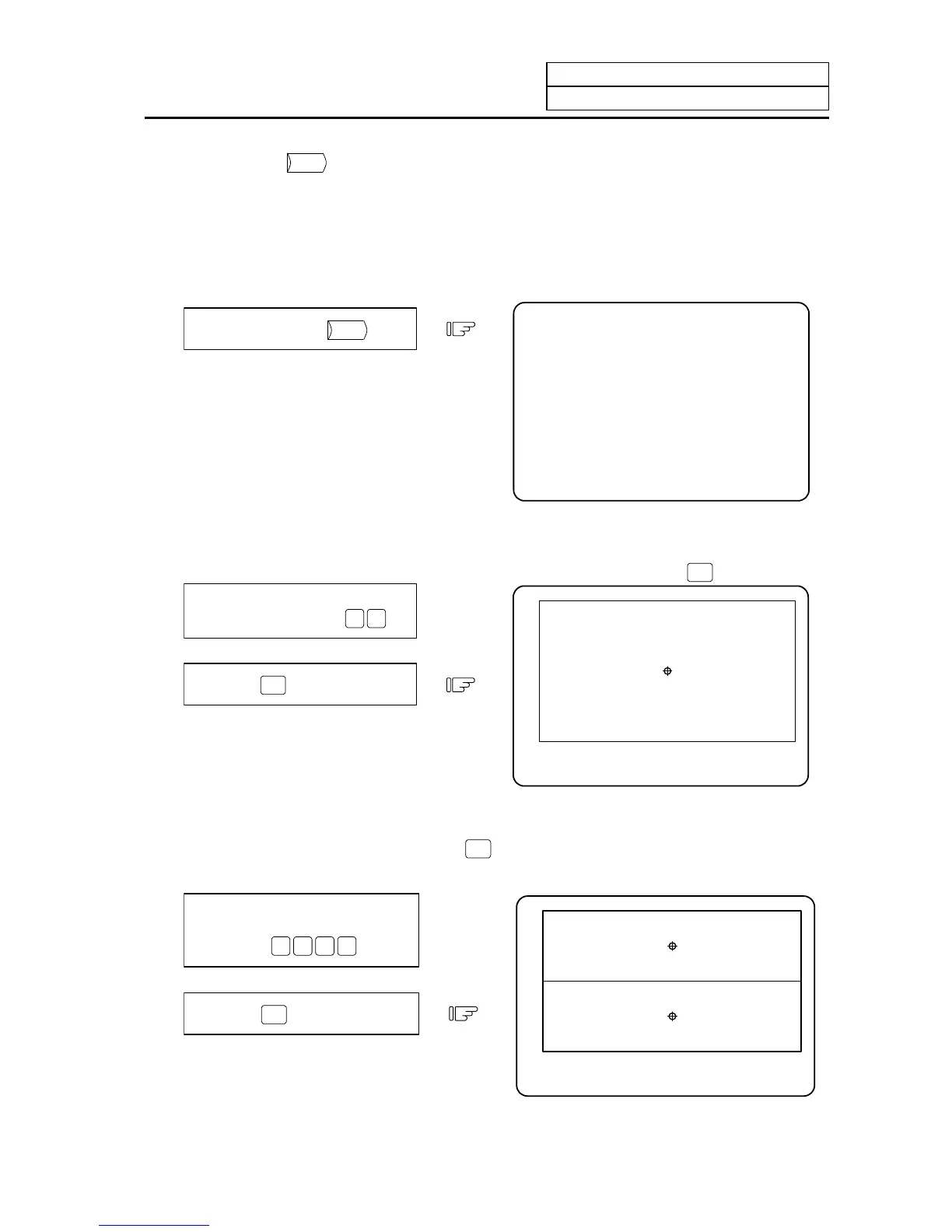

9.5 GRF MODE (
GRF
MODE
)
(1) GRF mode types
There are three types of GRF modes: 1-plane, 2-plane and 3-dimensional. The axes of each
plane or solid object can be randomly designated. The set display mode will be retained even
after the power has turned OFF and ON again.
(2) Setting the GRF mode
GRF MODE ( )
Press the menu key
GRF
MODE
.
1) The "GRF MODE" setting area appears.
2) Directly set the axis names according to
the following examples.
(Example 1) Setting the 1-plane display mode
Set the horizontal and vertical axis names in order, and press the
INPUT
key.
X
Press the
INPUT
key.
1) When the GRF mode changes over, all
already drawn graphics are erased, and
the new coordinate axes, etc., appear.
Set the GRF mode.
(Example)
GRF mode (
X Y
)
Y
(Example 2) Setting the 2-plane display mode (M system only)
Set the horizontal and vertical axis names of the upper plane and those of the lower
plane in order, and press the
INPUT
key.
Designate a common name for the horizontal axes of the upper and lower planes.
X
Press the
INPUT
key.
1) When the GRF mode changes over, all
already drawn graphics are erased, and
the new coordinate axes, etc., appear.
Set the GRF mode.
(Example)
GRF mode
(
X Y X Z
)
Z
Y
