3. Tool Offset (L system)
3.2 Tool Length Data
I-80
Refer to "3 (II). Tool Offset (M system)" for M system.

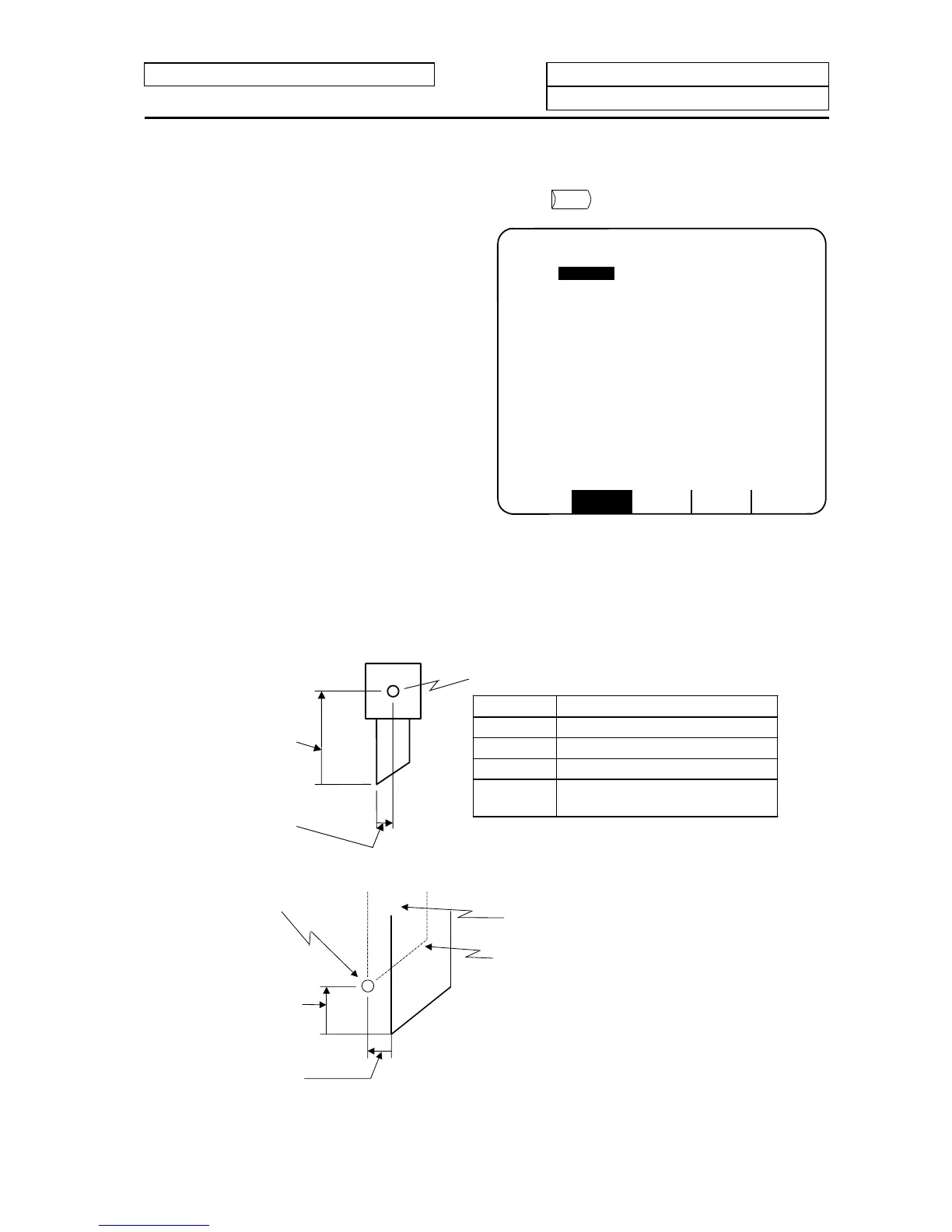

3.2 Tool Length Data
The TOOL DATA screen will appear when the menu key
T-DATA
is pressed.
T-OFSET T-DATA NOSE-R LIFE MENU
[TOOL DATA] TOOL 2.1/4
[MACHINE] X 123.456
#I :INC. #A :ABS Z 345.678
# C 0.000
1 X -12.345 Z 23.456 C 0.000
2 X -100.100 Z 10.123 C 0.000
3 X 55.123 Z 100.234 C 0.000
4 X 0.000 Z 0.000 C 0.000
5 X 0.000 Z 0.000 C 0.000
6 X 0.000 Z 0.000 C 0.000
7 X 0.000 Z 0.000 C 0.000
8 X 0.000 Z 0.000 C 0.000
9 X 0.000 Z 0.000 C 0.000
10 X 0.000 Z 0.000 C 0.000
T M
(
)
X
(
)
Z
(
)
C
(
)
Set the tool length in respect to the program basic position of each tool used.
When the tool compensation No. is designated by the tool command (T command), compensation is
carried out matching the wear data of the previous screen. Generally, the program basic point position
is either the turret center position or the basic tool nose position.
(1) Turret center position
Data Function
X X axis tool length offset
Z Z axis tool length offset
C Additional axis tool length offset
MACHINE
Same value as on the
MONITOR screen.
Program basic position
Z axis tool
length offset
X axis tool
length offset
(2) Basic tool nose position
Z axis tool
length offset
Tool used for work
Basic tool
X axis tool
length offset
Basic position
(Note 1) Whether to apply the tool nose wear compensation of the additional axis on the 3rd axis or
4th axis can be selected with the parameter (#1520 Tchg34).
