11. Visual Analyzer (Waveform display)
I
-342
11. Visual Analyzer (Waveform display)
Pressing the function selection key
F0
displays the VISUAL ANALYZER screen. On this screen,
changes in the spindle and servo operation status can be displayed in time units simultaneously for
both channels.
During synchronous tap, the difference of the spindle and tap axis position deviation (synchronous
error amount) can be displayed as a waveform.
The waveform data can be output; refer to "6.2.6 Outputting Waveform Data".
(Note)
The VISUAL ANALYZER screen is valid when the setup parameter "#1222 aux06/bit2" is set
to 1.

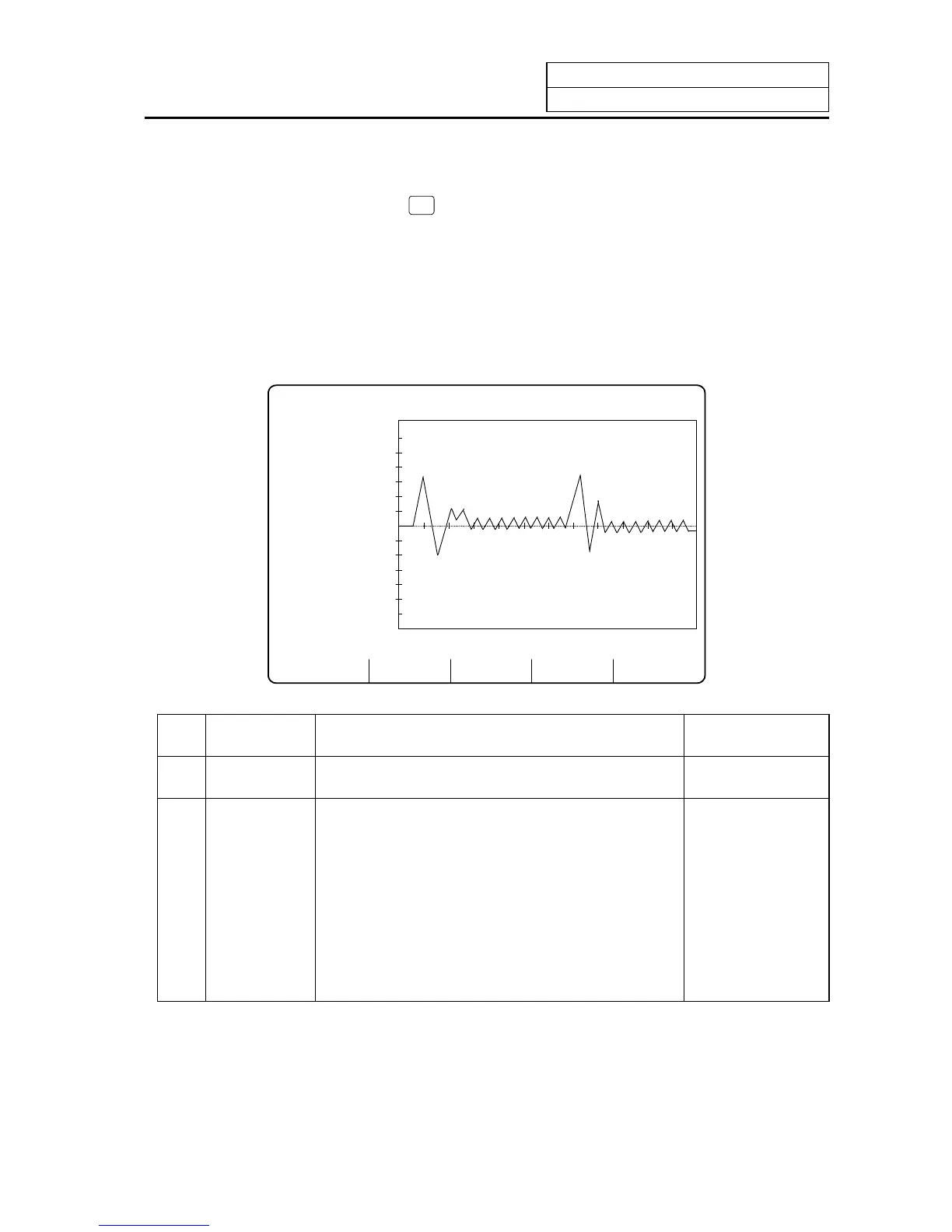

SINGLE AUTO DISPLAY
[VISUAL ANALYZER] VISUAL ANALYZER 1.
#1 time (1000)
(ms/div) 5
2 CH1 ax (X1)
3 data (1)
4 range ( 100)
5 level (0)
6 CH2 ax ( ) 0
7 data ( )
8 range ( )
9 level ( )
10 type ( )
11 signal ( ) -5
#( )data( )( )
# Parameter Description
Setting range
(units)
1 time (ms/div) Specify the unit of a time axis (horizontal axis)
gradation in milli-second (ms).
1 to 9999
2 CH1 ax Specify the name of the axis to be displayed for CH1.
No waveform data is displayed if ( ) is left blank.
Input "/" to erase the displayed waveform.
Servo axis:
Axis name
[2 characters]
(X1, Y1, Z1, etc.)
Spindle:
S1 to S2
(Just S is sufficient
for the first
spindle.)
"/" will cancel the
axis name.
