M800W/M80W Series Connection and Setup Manual

7 Connection of Control Unit

259

IB-1501268-K

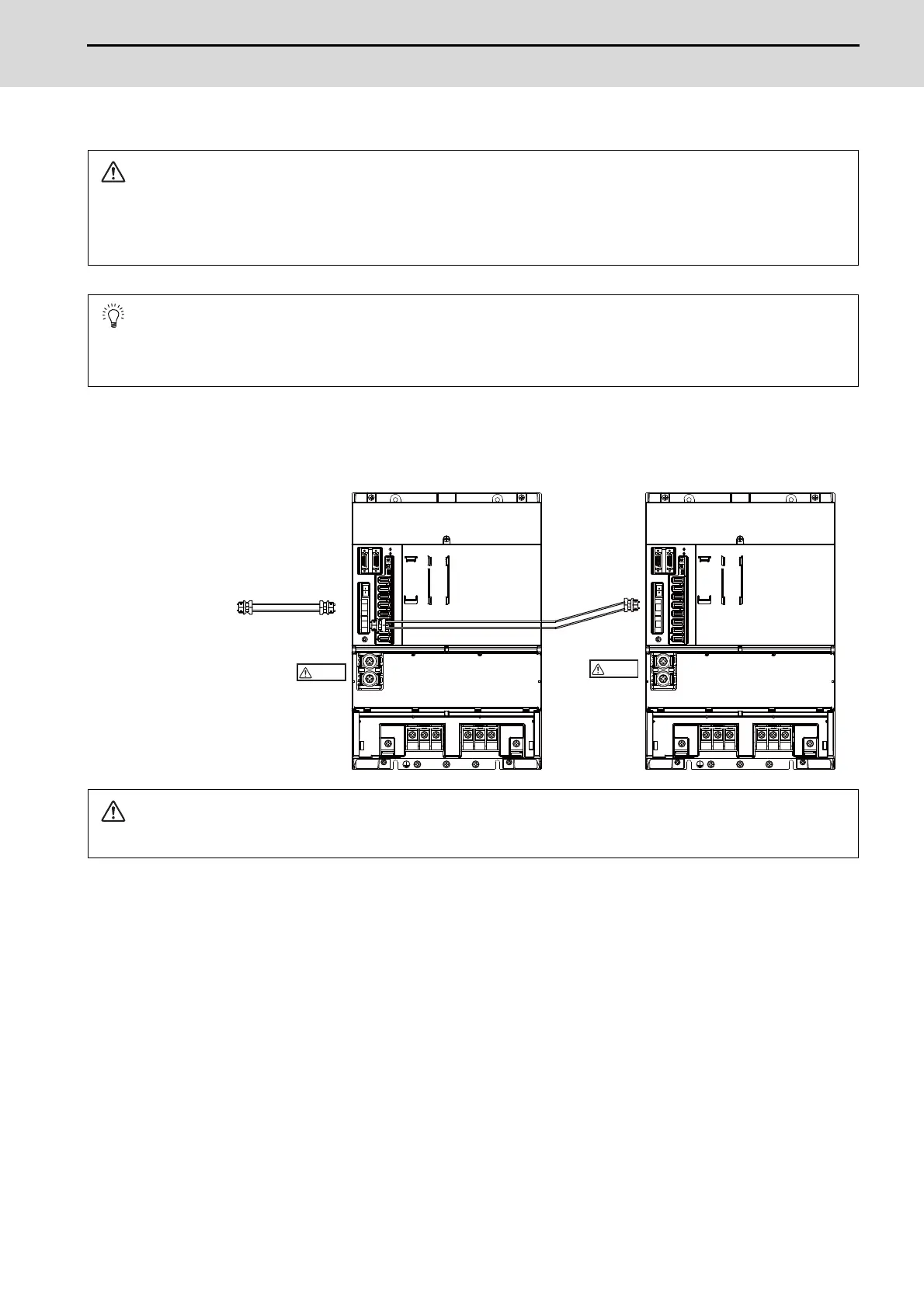

7.8.2 Connecting with Drive Unit MDS-EM/EMH Series

(1) When using only MDS-EM/EMH-SPV Series

CAUTION

Connect the NC and the drive units by the optical communication cables. The distance between the NC and the

final drive unit must be within 30m and the specified bending radius (for wiring inside panel: 25mm, and for wiring

outside panel: 50mm) or more.

POINT

Axis Nos. are determined by the rotary switch for setting the axis No. (Refer to the manual of drive unit.) The axis

No. has no relation to the order for connecting to the NC.

CAUTION

Confirm that the TE2 (L+, L-) wiring is not connected to other power supply before turning the power ON.

MDS-EM/EMH-SPV3

Spindle:1st axis

Servo:2nd/3rd/4th axis

to the NC

Connected

communication

Optical

cable

Spindle:5th axis

Servo:6th/7th/8th axis

CAUTION

Refer to the

instruction

manuals of NC

for details.
