Mitsubishi Electric M800W Series User Manual

M800W/M80W Series Connection and Setup Manual
7 Connection of Control Unit
274
IB-1501268-K

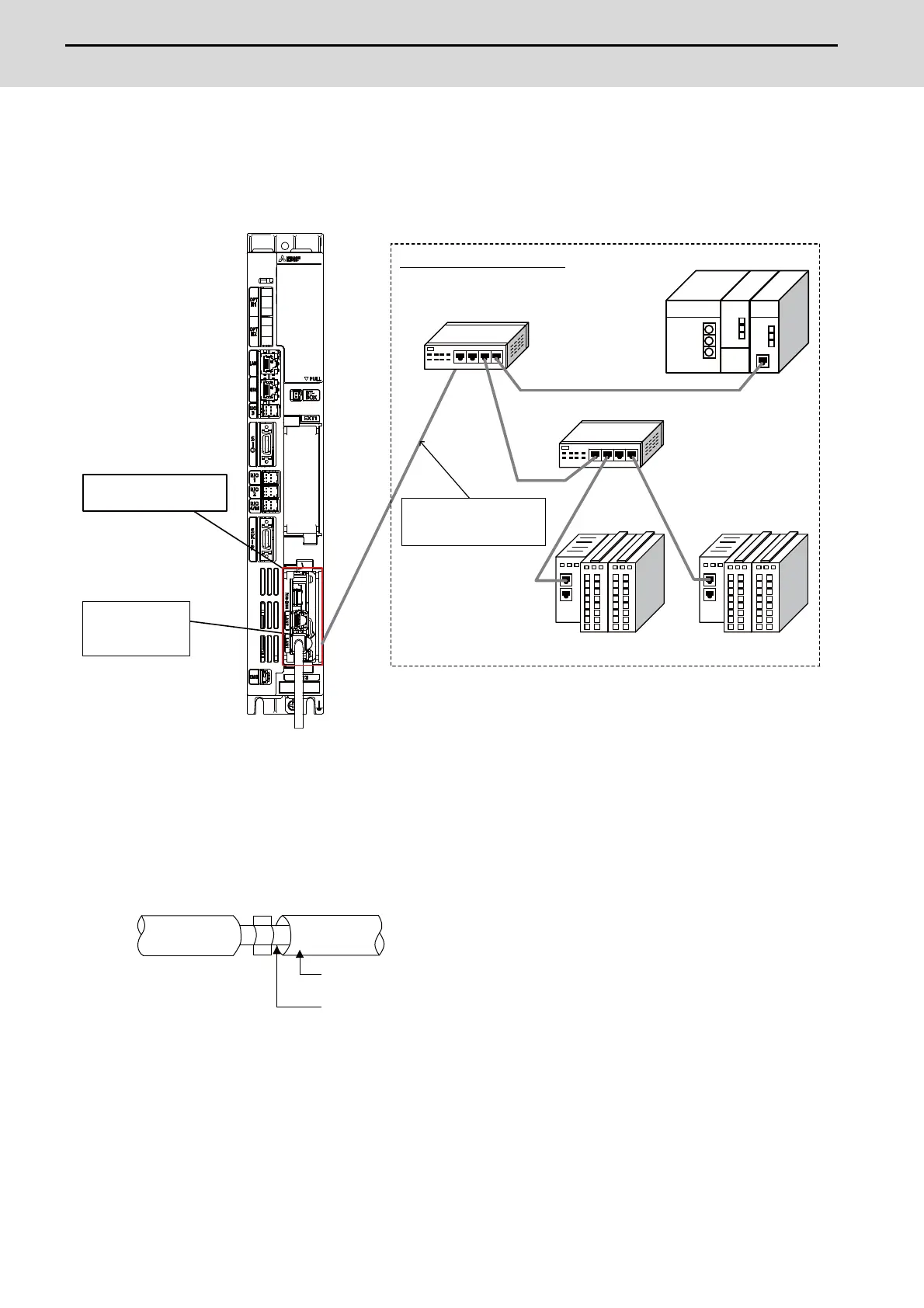

7.13.4 Connecting I/O Device via EtherNet/IP
The expansion unit FCU8-EX565 functions as a scanner or an adapter of EtherNet/IP. Connect the EtherNet/IP-
compatible equipment with an ethernet cable (category 5e or above and twisted pair shield cable).
For details, refer to "M800/M80 Series EtherNet/IP Specifications manual".
(Note 1) EtherNet/IP unit is equipped with two RJ-45 connectors (LAN1 and LAN2); however, the function of EtherNet/
IP is available only on LAN1. Do not connect any cable to LAN2 port.
[Noise countermeasures of ethernet cable]
When the EtherNet/IP expansion unit is being used, expose the cable by removing a part of the cable sheath and
make sure to use the shield clamp for the exogenous noise countermeasure.
When you cannot use the shield clamp, make sure to install a ferrite core as a substitute to ethernet cable (near the
expansion unit).
<Related item>
Shield clamp fitting: "EMC Installation Guidelines: EMC Countermeasure Parts: Shield Clamp Fitting"
Ferrite core: "EMC Installation Guidelines: EMC Countermeasure Parts: Ferrite Core"
(FCU8-EX565)
EtherNet/IP
EtherNet/IP unit
network connector
(Only LAN1)
(* Prepared by MTB)
Industrial switching hub
Adapters
Scanners
Industrial switching hub
Ethernet cable
(category 5e or above and
twisted pair cable with shield)
EtherNet/IP-compatible equipment
Shield
Ethernet cable

Mitsubishi Electric M800W Series Specifications

General

Number of control axes	Up to 8 axes
High-speed processing	Yes
Positioning control	Yes
Synchronized control	Yes
Spindle control	Yes
Operating Temperature	0 to 45°C
Storage Temperature	-20 to 60°C
Control Method	Digital Servo Control
Display	15-inch LCD
Communication interfaces	Ethernet, RS-232
Power Supply	AC 200 to 240V
Type	CNC Control System
