M800W/M80W Series Connection and Setup Manual
11 Connection of Operation Panel I/O Unit
296
IB-1501268-K

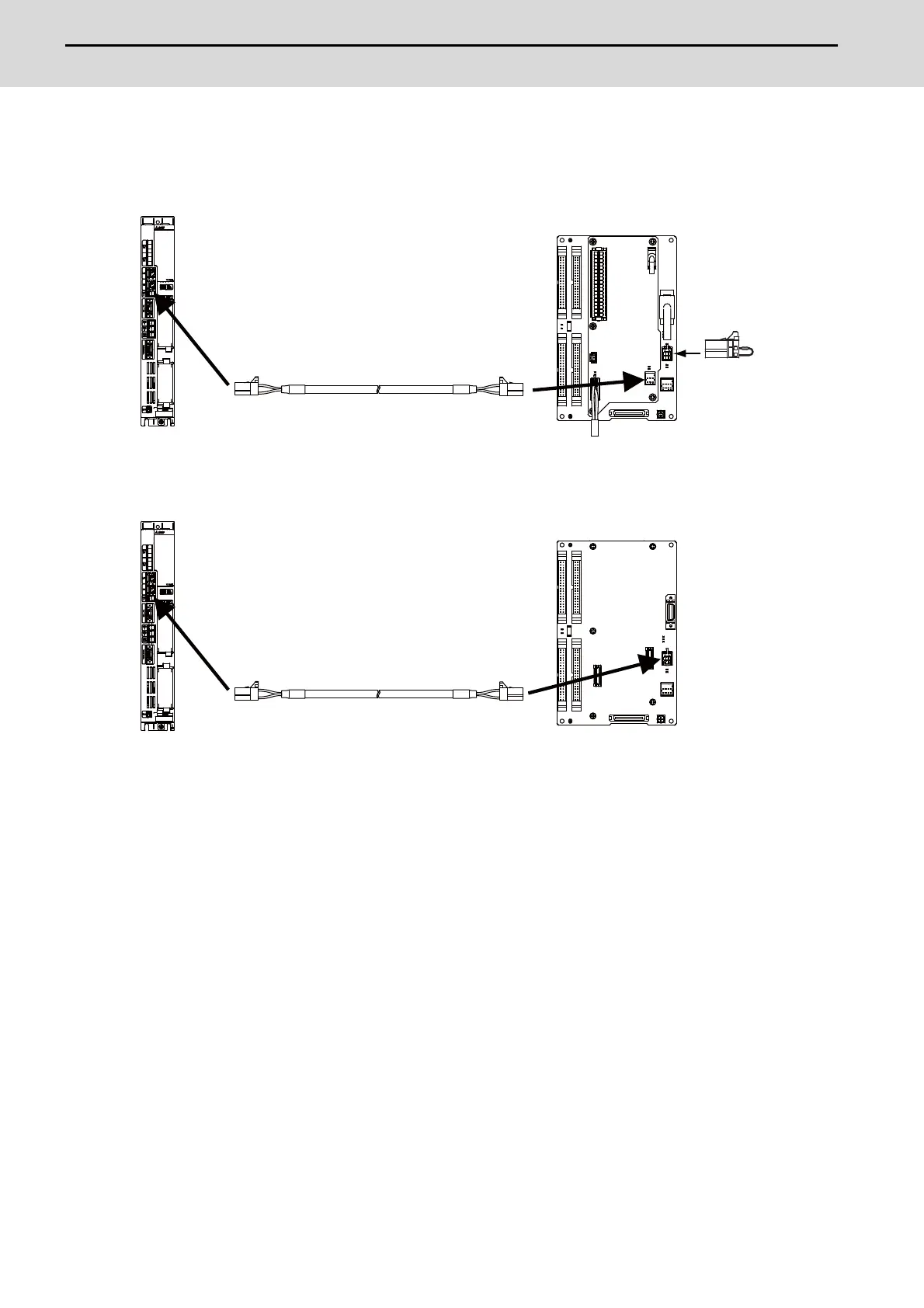

11.5 Connecting with Control Unit
[Windows-based display]
Connect the control unit to RIO3 connector of the operation panel I/O unit.
[Non-Windows-based display]
Connect the control unit to RIO3EXT connector of the operation panel I/O unit.
<Related items>
Cable drawing: "Cable: J210 Cable"
Connector pin assignment: "General Specifications: Operation Panel I/O Unit" (RIO3 connector, RIO3EXT
connector)
RIO3
RIO3
J210
RIO3EXT
RIO2.0
(R2-TM)
A
B
AMP D-2
Control unit Operation panel
I/O unit
Terminator
Connector
RIO3
J210
RIO3EXT
Control unit Operation panel
I/O unit

Mitsubishi Electric M800W Series Specifications

General

Number of control axes	Up to 8 axes
High-speed processing	Yes
Positioning control	Yes
Synchronized control	Yes
Spindle control	Yes
Operating Temperature	0 to 45°C
Storage Temperature	-20 to 60°C
Control Method	Digital Servo Control
Display	15-inch LCD
Communication interfaces	Ethernet, RS-232
Power Supply	AC 200 to 240V
Type	CNC Control System
