M800W/M80W Series Connection and Setup Manual
16 Connection of Machine Operation Panel
357
IB-1501268-K

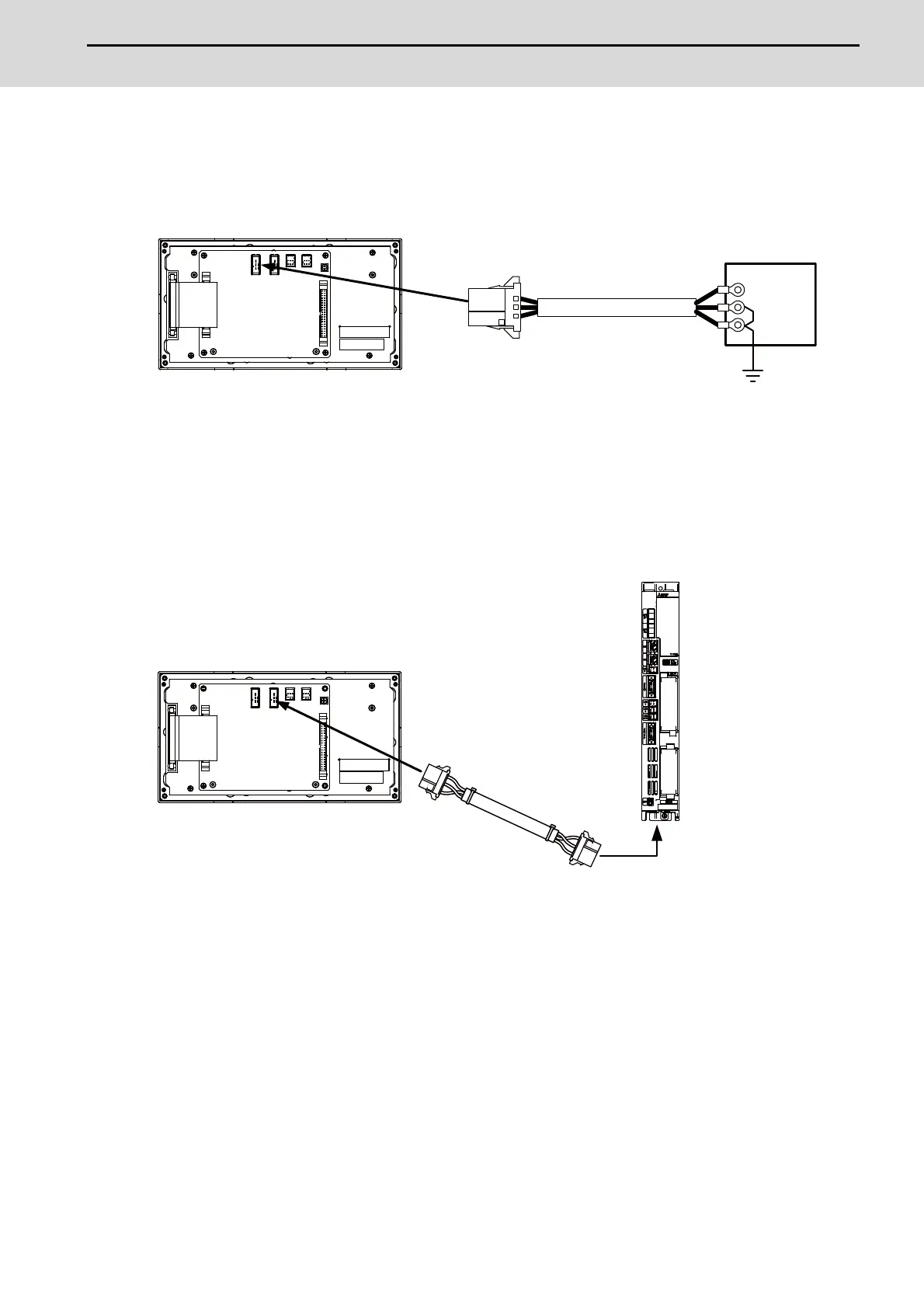

16.2 Connecting with Power Supply
Connect 24VDC power supply (general-purpose stabilized power supply) to the main panel of the machine operation
panel.
[FCU8-KB921/KB922/KB923/KB924/KB925/KB926]
<Related items>
Cable drawing: "Cable: J070/J071 Cable"
Connector pin assignment: "General Specifications: Machine Operation Panel: Main Panel A,B" (DCIN connector)
When sharing the 24VDC power supply with the control unit, connect a 24VDC relay cable.
[FCU8-KB921/KB922/KB923/KB924/KB925/KB926]
<Related items>
Cable drawing: "Cable: G071 Cable"
Connector pin assignment: "General Specifications: Machine Operation Panel: Main Panel A,B" (DCOUT
connector)
DCIN
J070/J071
1 2 3
Y
0V
FG
24VDC(+)
Stabilized power supply
G071
DCOUT
DCIN
Y
Y
Control unit

Mitsubishi Electric M800W Series Specifications

General

Number of control axes	Up to 8 axes
High-speed processing	Yes
Positioning control	Yes
Synchronized control	Yes
Spindle control	Yes
Operating Temperature	0 to 45°C
Storage Temperature	-20 to 60°C
Control Method	Digital Servo Control
Display	15-inch LCD
Communication interfaces	Ethernet, RS-232
Power Supply	AC 200 to 240V
Type	CNC Control System
