3.3 Outside dimensions/Installation dimensions
3.3.1 Outside dimensions

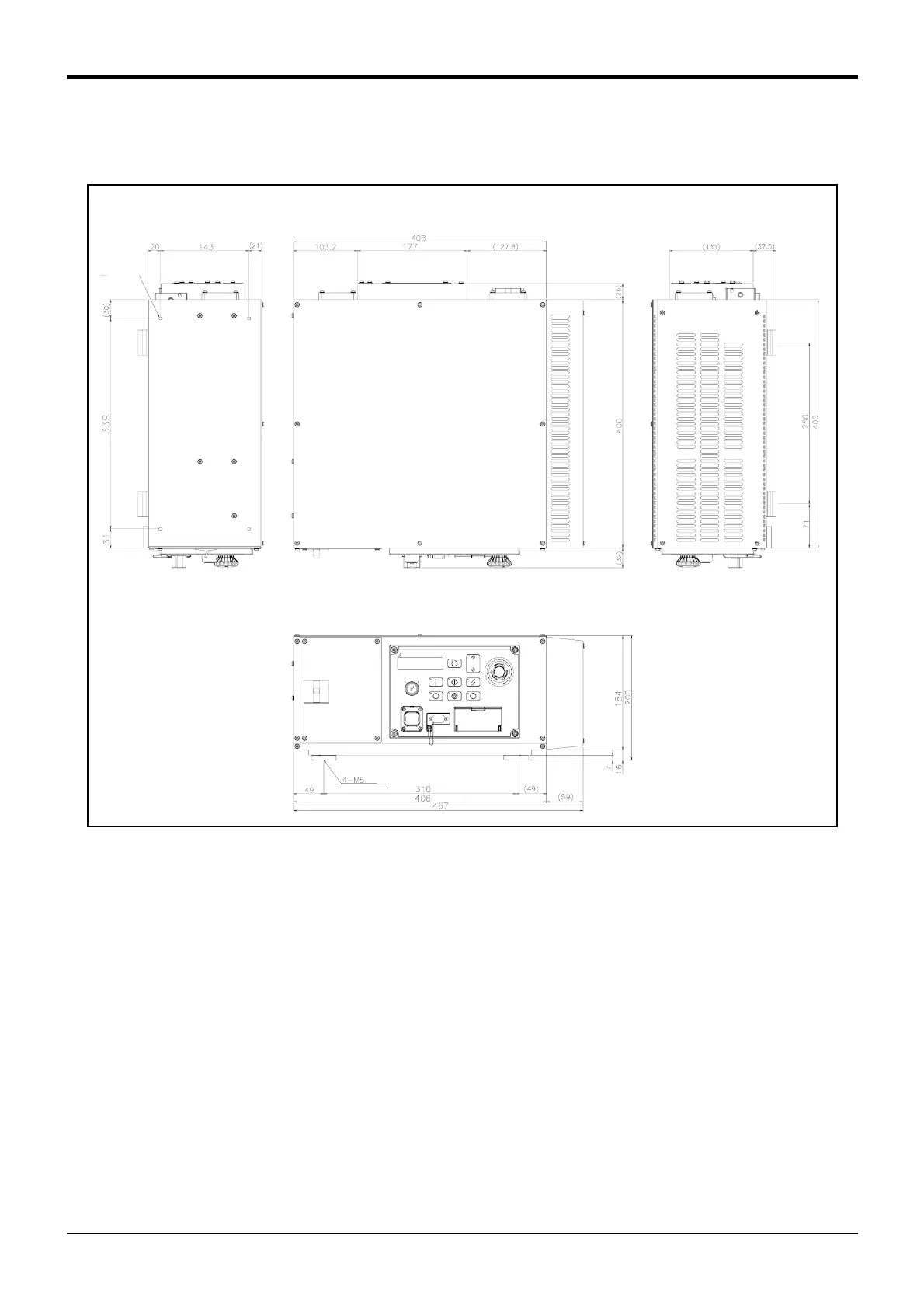

Fig.3-8 ： Outside dimensions of controller(CR2DA-700)
<CR2DA-700 series>
screw
4-M5 screw
For vertical
installation
