4D68 ENGINE (E-W) -
Glow Plug, Fuel Inje c tion Pump And Inje c tion N oz zle
11A-5-3

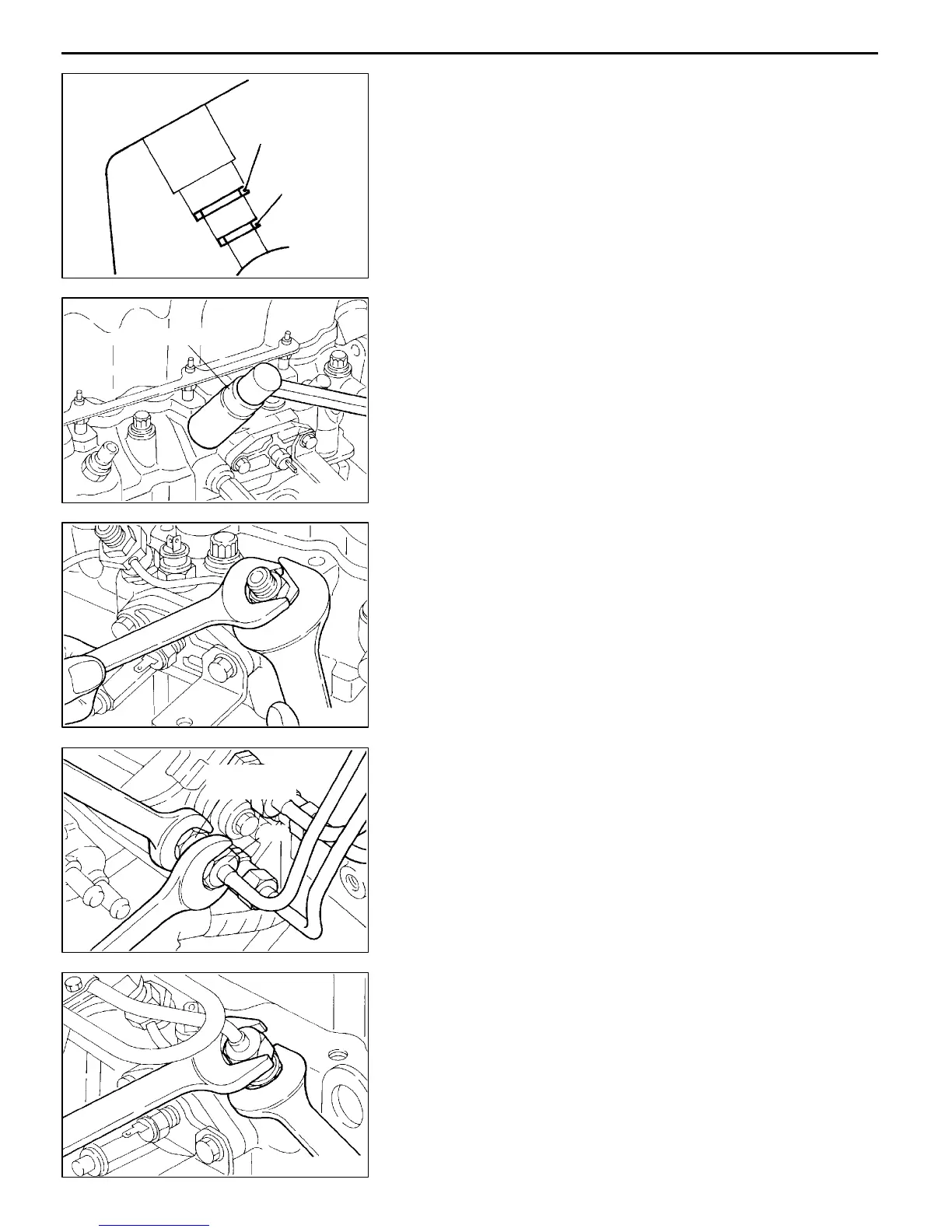

INSTALLATION SERVICE POINTS
"
A
A
NOZZLE GASKET / HOLDER GASKET
INSTALLATION
(1) Clean nozzle holder installation areas of the cylinder head.
(2) Fit a new nozzle gasket and holder gasket into the nozzle
holder hole in the cylinder head.
"
B
A
INJECTION NOZZLE INSTALLATION
"
C
A
FUEL RETURN PIPE NUT INSTALLATION
(1) While holding the fuel hexagon nut of the fuel return pipe
with a wrench, tighten the fuel return pipe nut to the
specified torque.
"
D
A
INJECTION PIPE INSTALLATION
(1) When tightening the injection pipe nuts, hold the delivery
valve holder with a spanner in order to prevent it from
rotating along with the nut.
(2) When tightening the injection pipe nuts, hold the hexagon
nut of the return pipe with a spanner in order to prevent
it from rotating along with the nut.
PWEE9609
E
Dec. 1996Mitsubishi Motors Corporation
DFU616
Holder gasket
Nozzle
gasket
DEN0763
Deep socket wrench
DEN0761
DEN0759
Delivery
valve holder
Nut
DEN0760
To Next Page
