4D68 ENGINE (E-W) -
Water Pump, Thermostat, Hose and Pipes
11A-7-2
INSTALLATION SERVICE POINTS
"
A
A

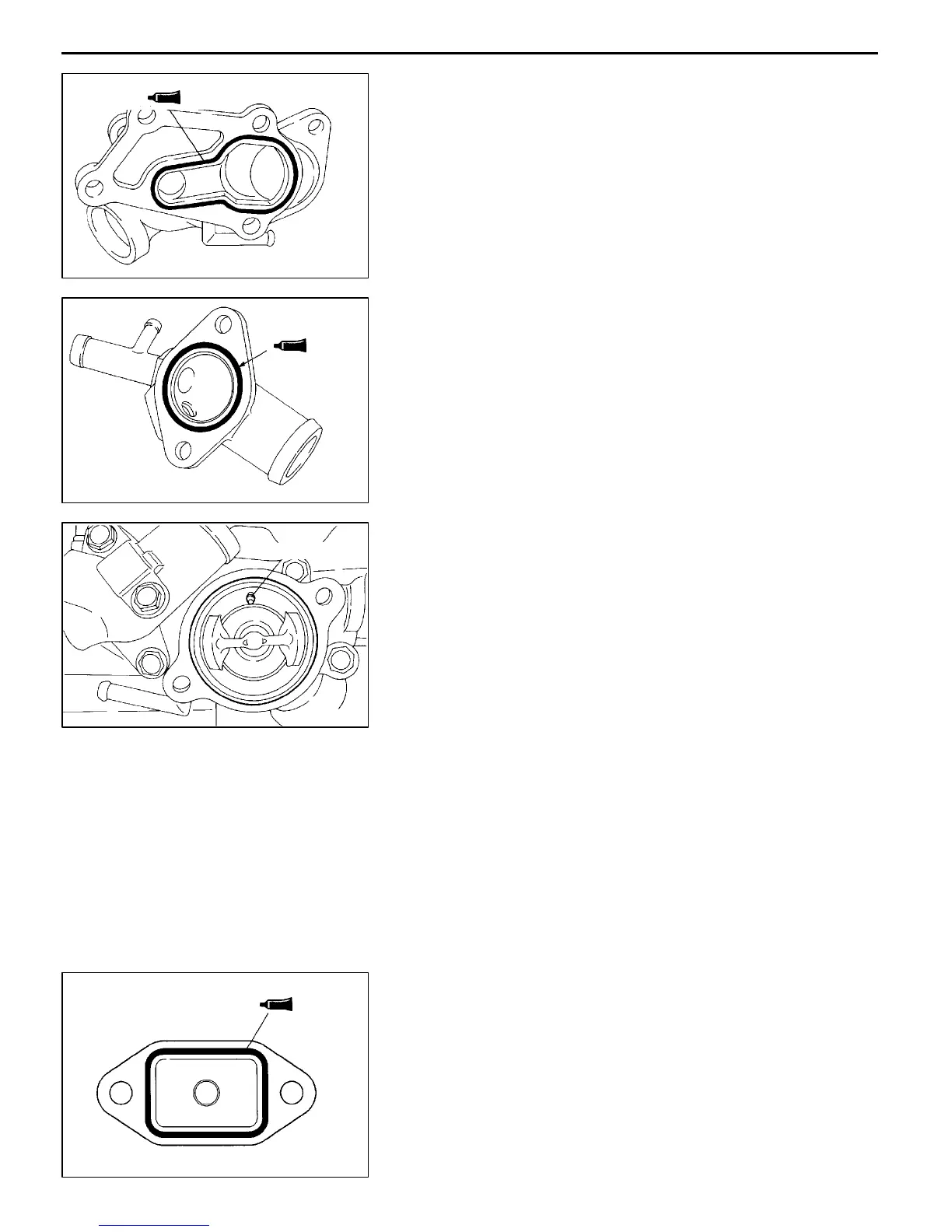

THERMOSTAT HOUSING INSTALLATION
(1) Apply a 3 mm bead of form-in-place gasket (FIPG) to
the mounting surface.
Specified sealant:
Mitsubishi Genuine Part No. MD970389 or
equivalent.
"
B
A
WATER OUTLET FITTING INSTALLATION
(1) Apply a 3 mm bead of form-in-place gasket (FIPG) to
the mounting surface.
Specified sealant:
Mitsubishi Genuine Part No. MD970389 or
equivalent.
"
C
A
THERMOSTAT INSTALLATION
(1) Install the thermostat with the jiggle valve up as shown
in the illustration.
"
D
A
WATER INLET PIPE / O-RING INSTALLATION
(1) Wet the O-ring (with water) to facilitate assembly.
Caution
D
Keep the O-ring free of oil or grease.
D
Secure the water pipe after the thermostat housing
has been installed.
"
E
A
COVER INSTALLATION
(1) Apply a 3 mm bead of form-in-place gasket (FIPG) to
the mounting surface.
Specified sealant:
Mitsubishi Genuine Part No. MD970389 or
equivalent.
PWEE9609
E
Dec. 1996Mitsubishi Motors Corporation
DEN0768
DEN0769
DEN0770
Jiggle valve
DEN0846
Back side of cover
