4D68 ENGINE (E-W) -
Front Case, Counter ba la nc e Shaft s and Oil Pan
11A-10-4
(4) Insert the installer aligning with the guide pin and install
the bearing.
"
C
A

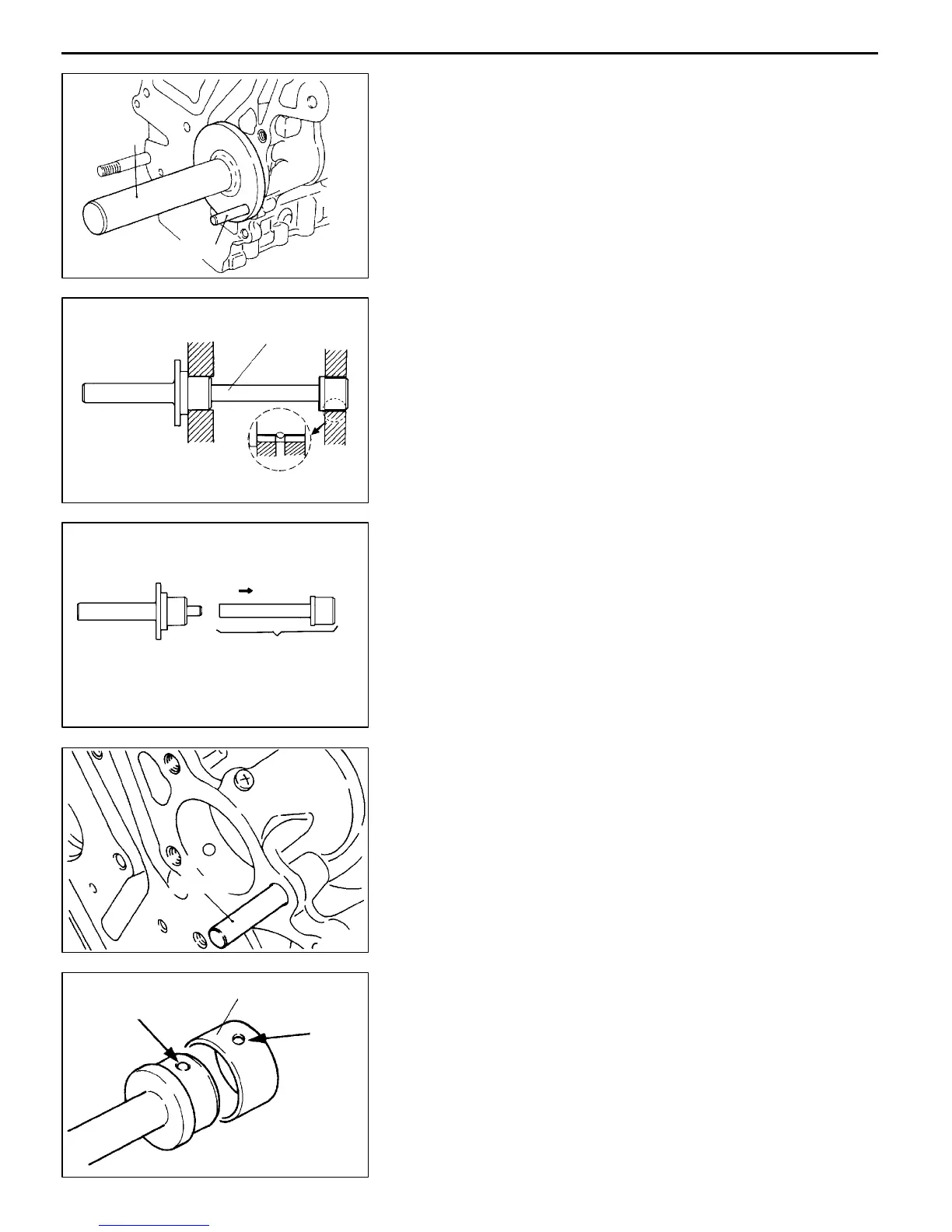

COUNTERBALANCE SHAFT FRONT BEARING
INSTALLATION
(1) Remove the rear bearing installing portion from the special
tool.
(2) Install the guide pin of the special tool to the threaded
hole of the cylinder block as illustrated.
(3) Install the bearing to the special tool, aligning the ratchet
ball of the special tool with the oil hole of the front bearing.
(4) Apply engine oil to the outer circumference of the bearing
and to the bearing hole of the cylinder block.
PWEE9609
E
Dec. 1996Mitsubishi Motors Corporation
6EN0775
MD998705
Guide pin
6EN0776
MD998705
6EN0777
Rear bearing
installer
6EN0774
Guide pin
6EN324
Oil
hole
Ratchet ball
Front bearing
