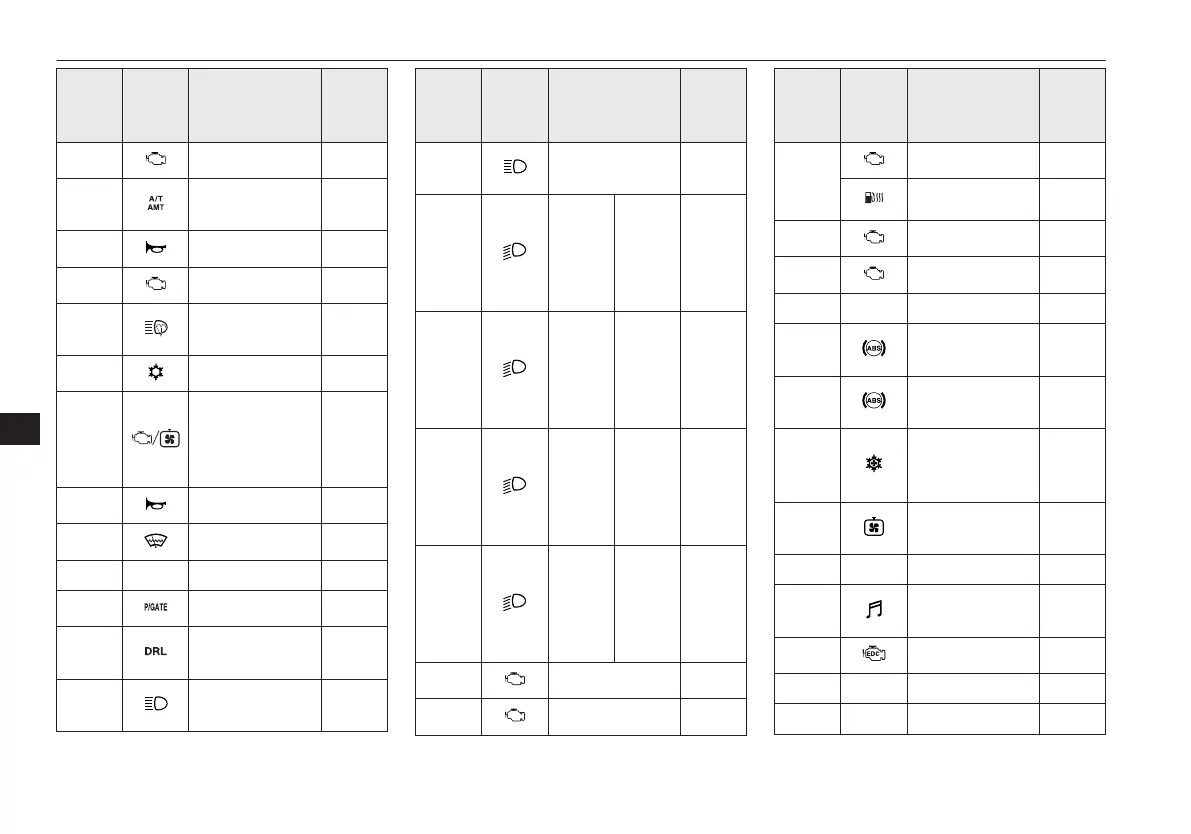

Mitsubishi ASX 2016

No.
Sym-
bol
Electrical sys-
tem
Ca-
paci-
ties
2 Engine 7.5 A
3
Automatic trans-
mission
20 A
4 Horn 10 A
5 Alternator 7.5 A
6
Headlamp wash-
er
20 A
7 Air conditioning 10 A
8
ETV/Oil cooler
fan
(Twin Clutch
SST)
15 A
9 Security horn 20 A
10 Wiper de-icer 15 A
11 — — —
12 Electric tailgate 30 A
13
Daytime running
lamps
10 A
14
Headlamp high-
beam (left)
10 A
*
: Fusible link
No.
Sym-
bol
Electrical sys-
tem
Ca-
paci-
ties
15
Headlamp high-
beam (right)
10 A
16
Head-
lamp
low
beam
(left)
Dis-
charge
20 A
17
Head-
lamp
low
beam
(right)
Dis-
charge
20 A
18
Head-
lamp
low
beam
(left)
Halo-
gen
10 A
19
Head-
lamp
low
beam
(right)
Halo-
gen
10 A
20 ENG/POWER 10 A
21 Ignition coil 10 A
*
: Fusible link
No.
Sym-
bol
Electrical sys-
tem
Ca-
paci-
ties
22
ENG/POWER 20 A
Fuel line heater 25 A
23 Fuel pump 15 A
24 Starter
30 A
*
25 — — —
26
Anti-lock brake
system
40 A
*
27
Anti-lock brake
system
30 A
*
28
Air conditioning
condenser fan
motor
30 A
*
29
Radiator fan mo-
tor
40 A
*
30 IOD IOD 30 A
31
Audio system
amp
30 A
32 Diesel 30 A
33 — Spare fuse 10 A
34 — Spare fuse 15 A
*
: Fusible link
Fuses
10-24
OGAE15E5
Maintenance
10
