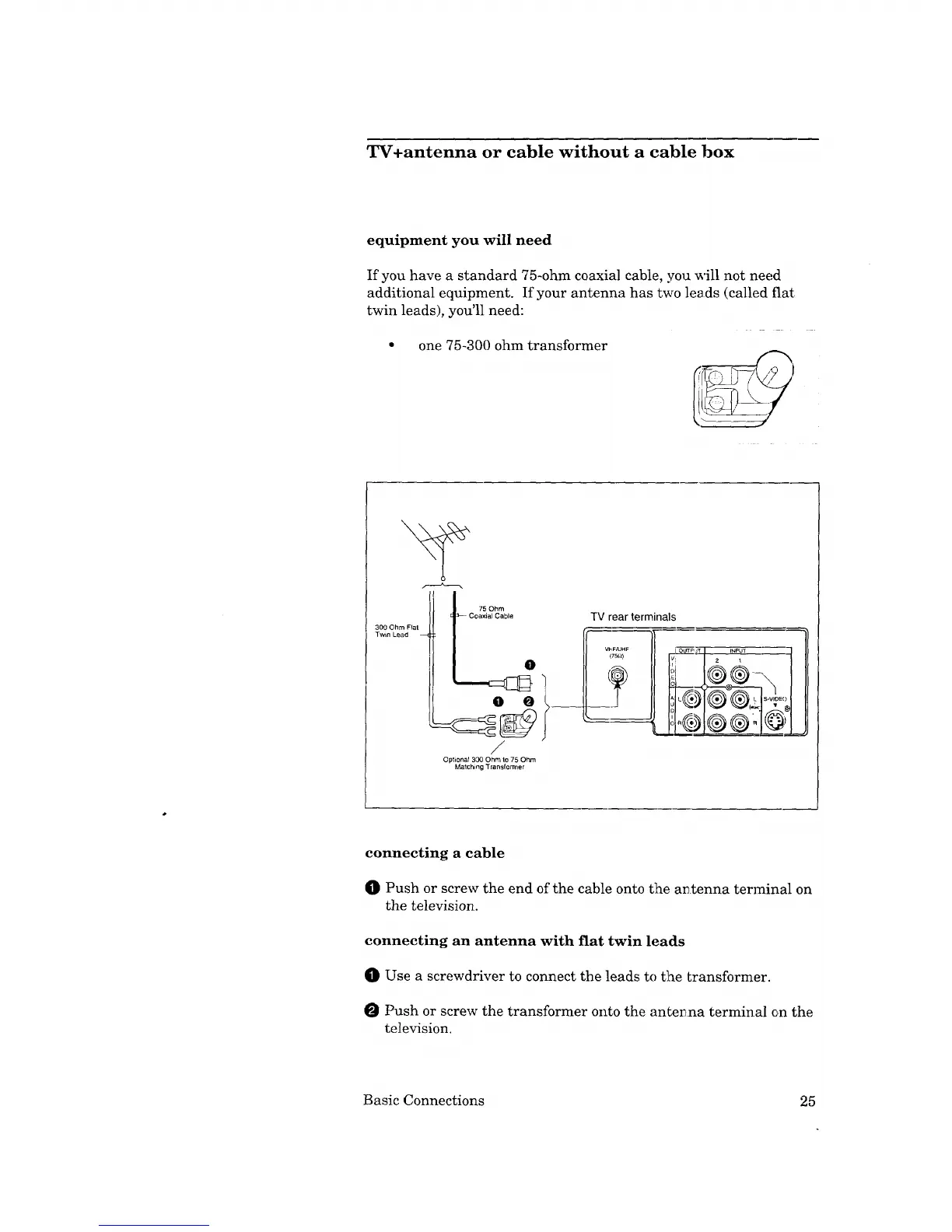

TV+antenna or cable without a cable box
equipment you will need
If you have a standard 75-ohm coaxial cable, you _11 not need
additional equipment. If your antenna has two leads (called flat
twin leads), you'll need:
one 75-300 ohm transformer
300 Ohm Flal
Twin Lead --(
75 Ohm
}_ Coaxial Cable
O
O O
/
Optional 300 Ohm to 75 Ohm
Matching Transformer
TV rear terminals
VI_F,_IHF ''_ JT INPUT 1
1
connecting a cable
O Push or screw the end of the cable onto the a_tenna terminal on
the television.
connecting an antenna with fiat twin leads
O Use a screwdriver to connect the leads to the transformer.
O Push or screw the transformer onto the antenna terminal on the
television.
Basic Connections 25
