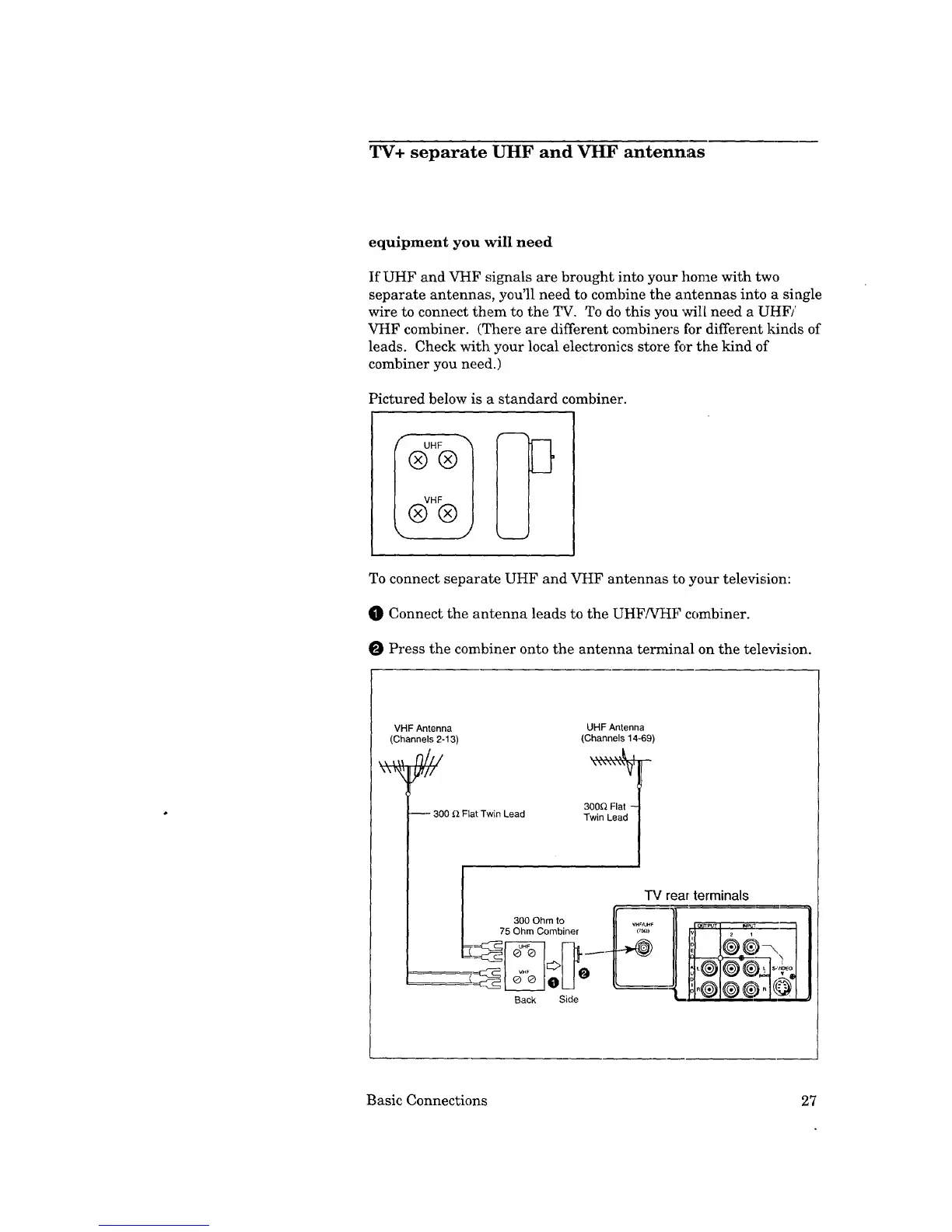

TV+ separate UHF and VHF antennas
equipment you will need
If UHF and VHF signals are brought into your home with two
separate antennas, you'll need to combine the antennas into a single
wire to connect them to the TV. To do this you will need a UHFi
VHF combiner. (There are different combiners for different kinds of
leads. Check with your local electronics store for the kind of
combiner you need.)
Pictured below is a standard combiner.
To connect separate UHF and VHF antennas to your television:
O Connect the antenna leads to the UHF/VHF combiner.
O Press the combiner onto the antenna terminal on the television.
VHF Antenna
(Channels 2-13)
,,,u _///
-- 300 _ Flat Twin Lead
UHF Antenna
(Channels 14-69)
\\\_,\\X_l
300_ Flat -
Twin Lead
L=_ TV rear terminals
300 Ohm to ]_--'7_ F ,o_,,_'--_'_--_----_
75OhmCombiner II _' II I,_1 I _ ' ----] I
h
Basic Connections 27
