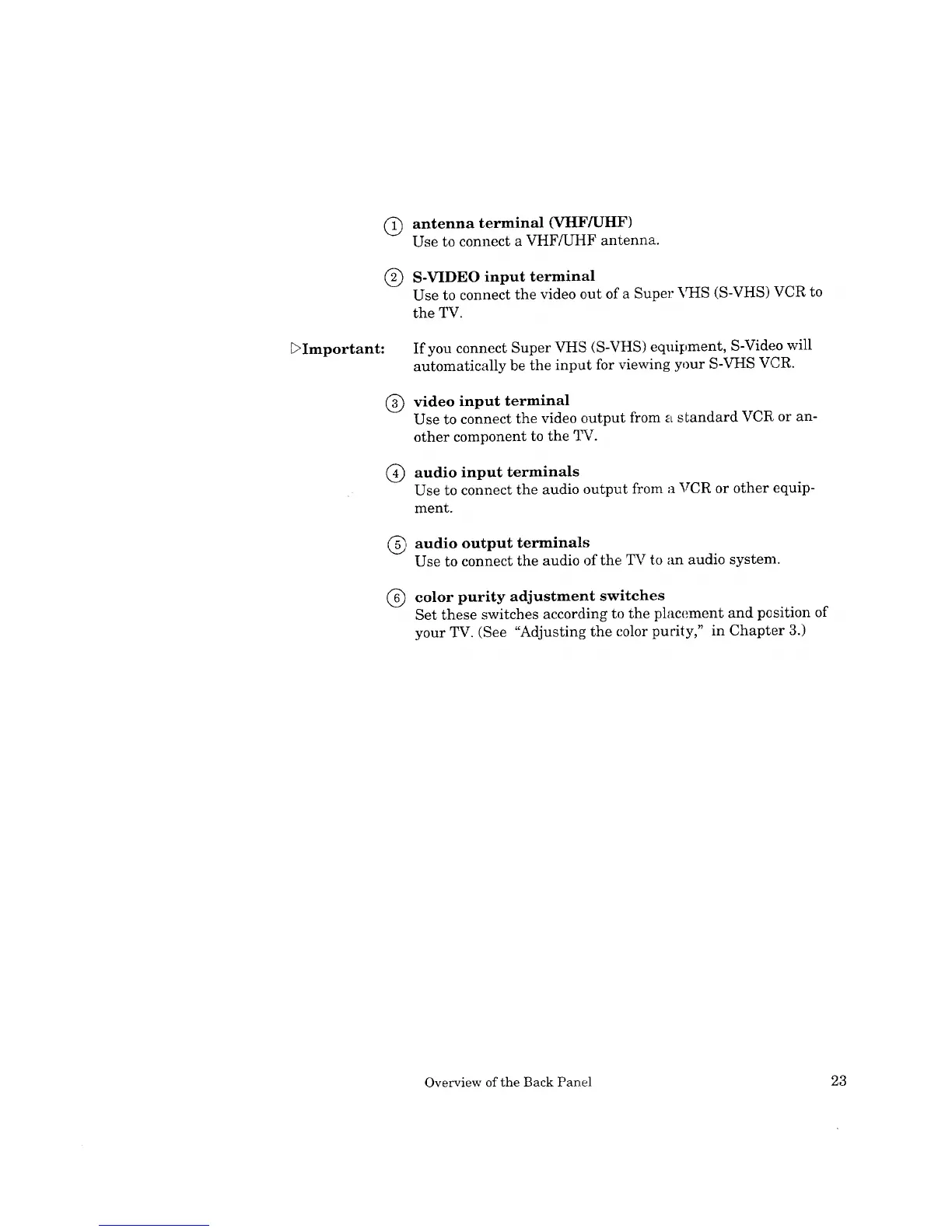

(_ antenna terminal (VttF/UHF)
Use to connect a VHF/UHF antenna.
_>Important:
®
®
Q
S-VIDEO input terminal
Use to connect the video out of a Super \_HS (S-VHS) VCR to
the TV.
If you connect Super VHS (S-VHS) equipment, S-Video will
automatically be the input for viewing your S-VHS VCR.
video input terminal
Use to connect the video output from a sLandard VCR or an-
other component to the TV.
audio input terminals
Use to connect the audio output from a VCR or other equip-
ment.
(_ audio output terminals
Use to connect the audio of the TV to an audio system.
® color purity adjustment switches
Set these switches according to the placement and pesition of
your TV. (See "Adjusting the color pucity," in Chapter 3.)
Overview of the Back Panel 23
