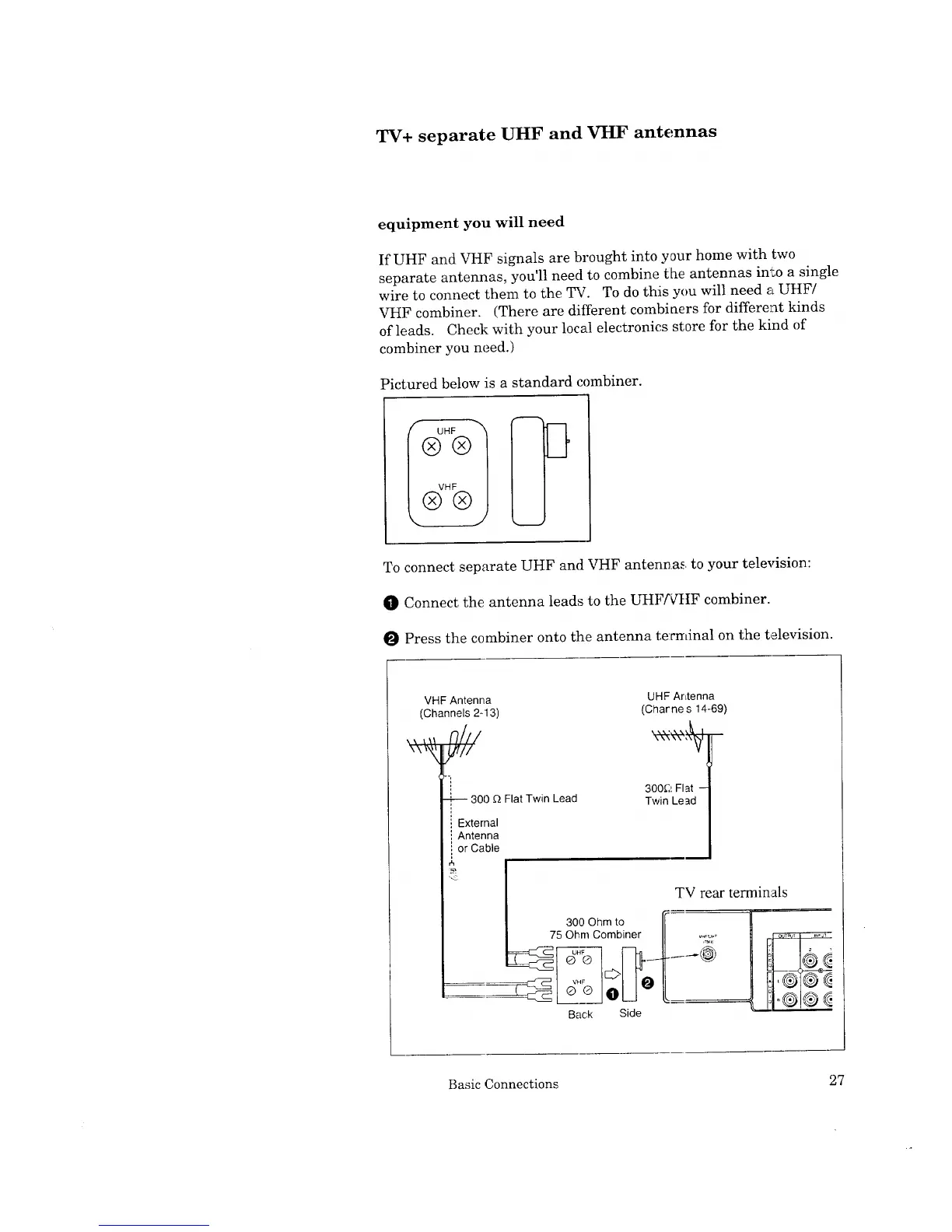

TV+ separate UHF and VHF antennas
equipment you will need
If UHF and VHF signals are brought into your home with two
separate antennas, you'll need to combine the antennas into a single
wire to connect them to the TV. To do this you will need a UHF/
VHF combiner. (There are different combiners for different kinds
of leads. Check with your local electronics store for the kind of
combiner you need.)
Pictured below is a standard combiner.
To connect separate UHF and VHF antennas, to your television:
O Connect the antenna leads to the UHFNttF combiner.
Press the combiner onto the antenna terminal on the television.
\\ t\\
VHF Antenna UHF Antenna
(Channels 2-13) (Char ne s 14-69)
hill
-
300 £2 Flat Twin Lead
External
Antenna
or Cable
300£,_FIat
Twin Lead
TV rear terminals
¢r
300 Ohm to II
75 Ohm Combiner "11 ,_:_o
Back Side
Basic Connections 27
