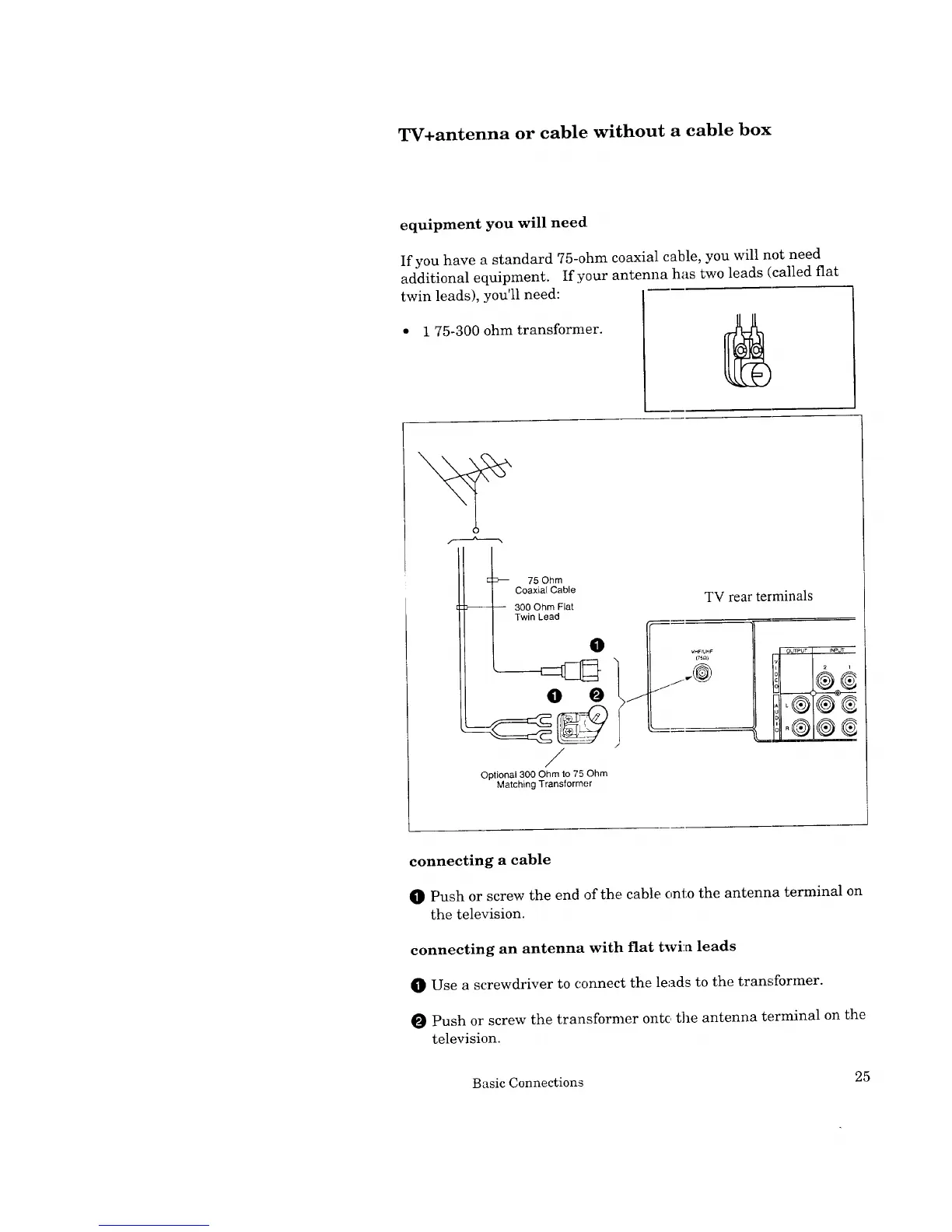

TV+antenna or cable without a cable box
equipment you will need
If you have a standard 75-ohm coaxial cable, you will not need
additional equipment. If your antenna has two leads (called flat
twin leads), you'll need:
• 1 75-300 ohm transformer. _
/----'---x
75 Ohm
Coaxial Cable
-- 300 Ohm Flat
Twin Lead
/
Optional 300 Ohm to 75 Ohm
Matching Transformer
TV rear terminals
VHF/UHF
(75n)
///_@
V OUTPUT INP,jT
i 2 i
t.el®®
connecting a cable
O Push or screw the end of the cable onto the antenna terminal on
the television.
connecting an antenna with fiat twin leads
0 Use a screwdriver to ccmnect the leads to the transformer.
0 Push or screw the transformer onto the antenna terminal on the
television.
Basic Connections 25
