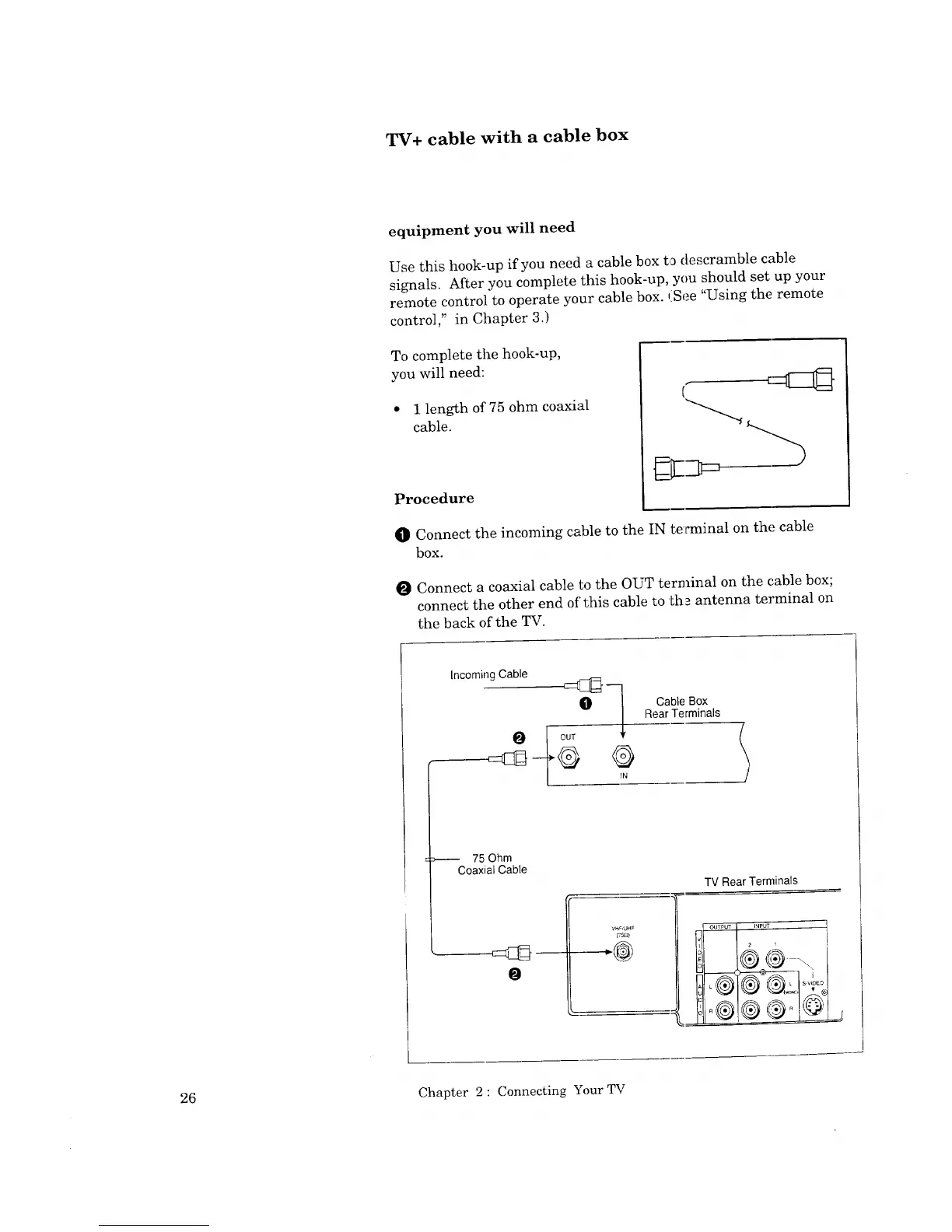

TV+ cable with a cable box
equipment you will need
Use this hook-up if you need a cable box to descramble cable
signals. After you complete this hook-up, you should set up your
remote control to operate your cable box. (See "Using the remote
control," in Chapter 3.)
To complete the hook-up,
you will need:
• I length of 75 ohm coaxial
cable.
Procedure
O Connect the incoming cable to the IN te:rminal on the cable
bOX.
O Connect a coaxial cable to the OUT terminal on the (',able box;
connect the other end of this cable to th_ antenna terminal on
the back of the TV.
Incoming Cable
Cable Box
Rear Terminals
75 Ohm
Coaxial Cable
TV Rear Terminals
O
VH_IUHF
@TPUT 2 INPUT i
I
[
26 Chapter 2 : Connecting Your TV
