NOTE
l
When you move the selector lever to the “R”
position with the front-view displayed on the
driver’s side screen, the driver’s side screen
switches to the Rear-view mode. When you
move the selector lever to any other position,
the driver’s side screen switches to the
Front-view mode.
l
When the switch is pressed at the vehicle
speed of approximately 10 km/h (6 mph) or
higher, only the side-view can be displayed
on the passenger’s side screen.
l
The front-view will not be displayed when
the vehicle speed exceeds approximately
10 km/h (6 mph).
l
The display of the view may be delayed dur-
ing switching of the screen.
How to read the screen
E00645400112
In any mode other than the Bird’s eye-view
mode, the lines in the screen give the follow-
ing information. Use them only as a guide.
CAUTION
l
When you accidentally hit the camera and its
circumference against something, the view
and the lines in the screen may not be dis-
played correctly. Be sure to have it inspected
by a MITSUBISHI MOTORS Authorized
Service Point.

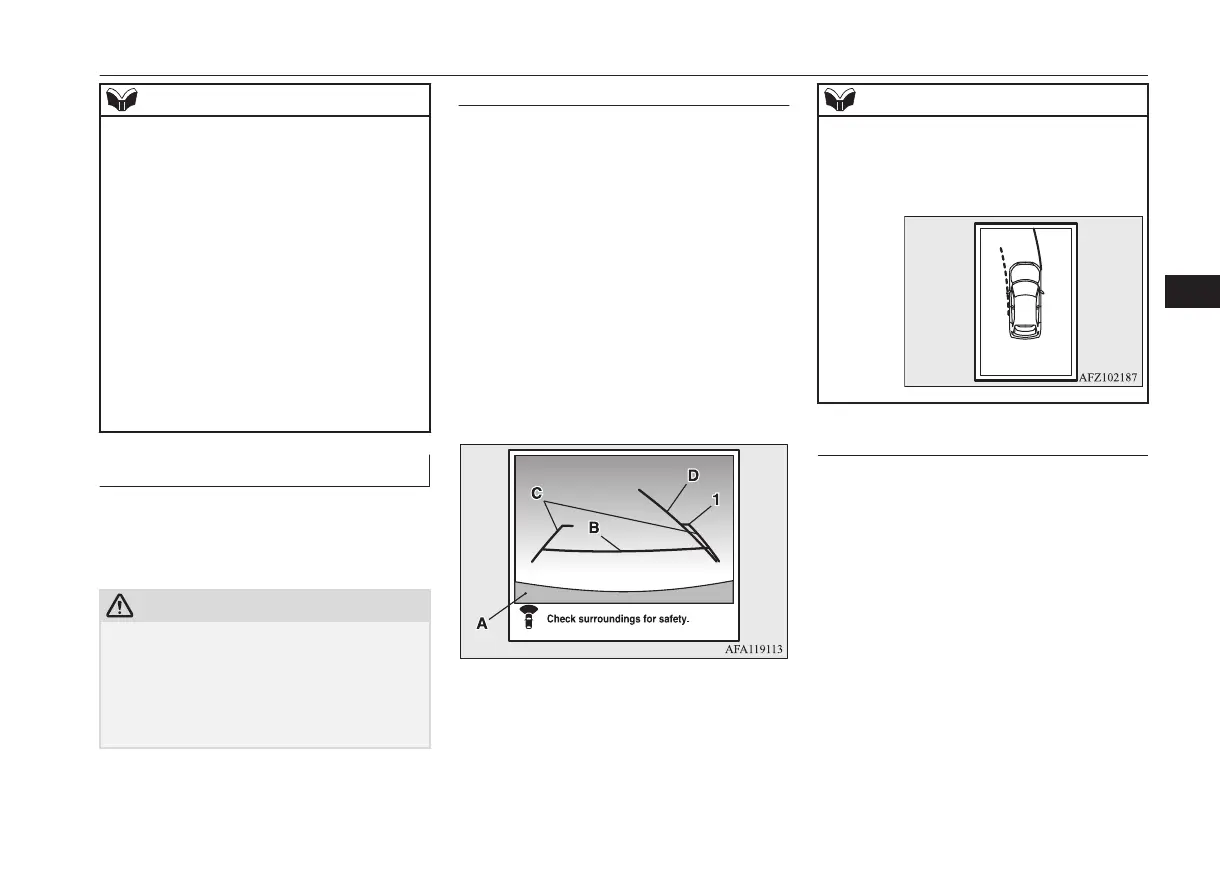

Front-view mode
Reference lines for the distance and the vehi-
cle width and upper surface of the front
bumper (A) are displayed on the screen.
l
The Red line (B) indicates approximate-
ly 50 cm from the front edge of the front
bumper.
l
The Two Green lines (C) indicate the ap-
proximate vehicle width.
l
The Orange line (D) indicates an expec-
ted course when the vehicle moves for-
ward with the steering wheel turned. It
disappears when the steering wheel is in
the neutral position.
l
The approximate distance from the vehi-
cle body is as follows:
l
1- Approximately 100 cm from the
front edge of the front bumper
NOTE
l
When the expected course lines are dis-
played in the front-view, the expected course
lines are also displayed in the bird’s eye-
view (Front: solid line, Rear: broken line).
Rear-view mode
E00645600130
Reference lines for the distance and the vehi-
cle width and upper surface of the rear bump-
er (A) are displayed on the screen.
l
The Red line (B) indicates approximate-
ly 50 cm behind the rear edge of the rear
bumper.
l
The Two Green lines (C) indicate the ap-
proximately vehicle width.
l
The Orange line (D) indicates an expec-
ted course when the vehicle is reserved
with the steering wheel turned. It disap-
pears when the steering wheel is in the
neutral position.
l
The approximate distance from the vehi-
cle body is as follows:
Multi Around Monitor*
6-121
OGKE18E1
Starting and driving
6
