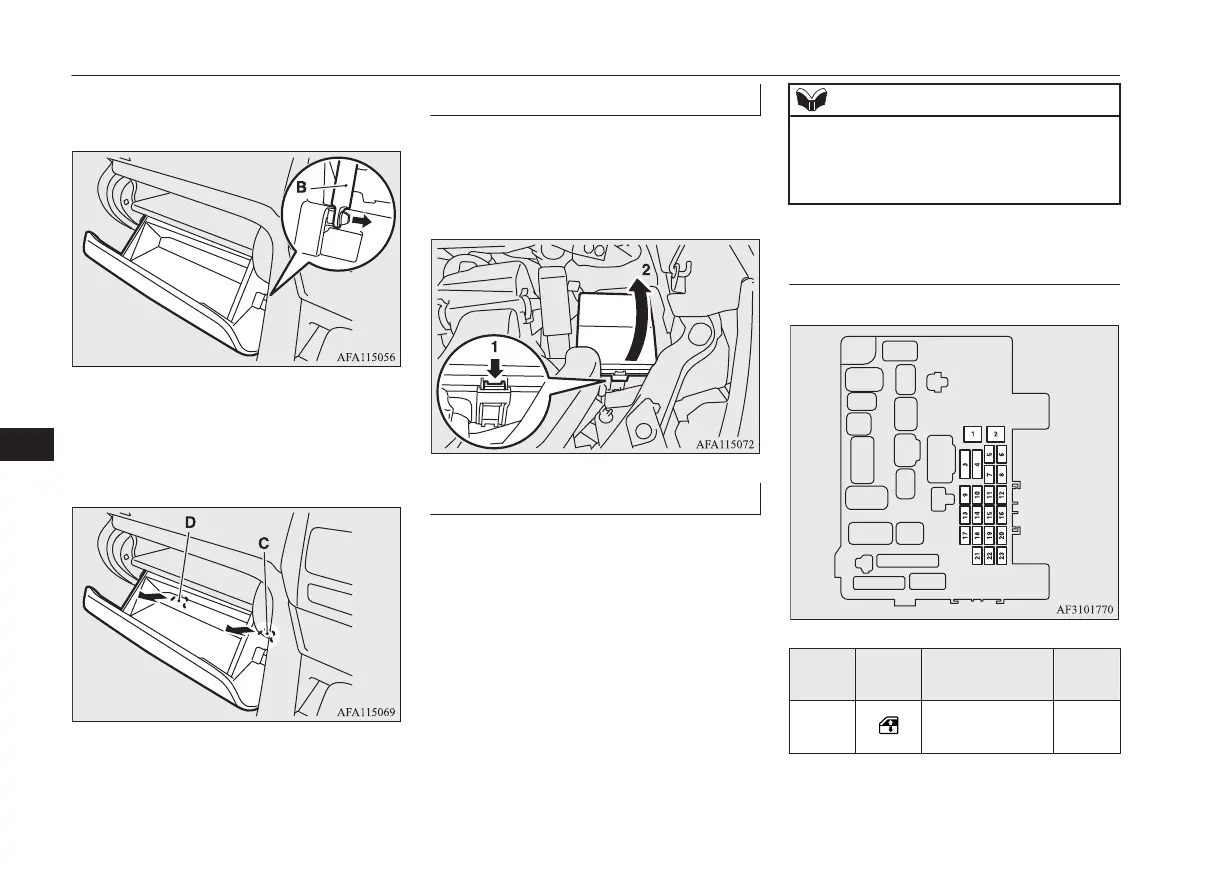

2. Uncouple the rod (B) on the right side of
the glove box.
3. Pull the glove box fastener (C), then the
fastener (D), in the directions of the ar-
rows shown in the illustration to remove
them.
4. Pull the glove box from the bottom to re-
move it.
Engine compartment
The fuse block in the engine compartment is
located as shown in the illustration.
1. Press the tab.
2. Remove the cover.
Fuse load capacity
E01007700684
The fuse capacity and the names of electrical
systems protected by the fuses are indicated
on the inside of the fuse lid (LHD vehicles),
the back side of the glove box (RHD vehi-
cles) and inside of the fuse block cover (in-
side of the engine compartment).
NOTE
l
Spare fuses are provided on the cover of fuse
block in the engine compartment. Always
use a fuse of the same capacity for replace-
ment.
Passenger compartment fuse lo-
cation table
E01007902215
No.
Sym-
bol
Electrical sys-
tem
Ca-
pacity
1
Electric window
control
30 A
*
*
: Fusible link
Fuses
10-18
OGKE18E1
Maintenance
10
