l
Some fuses may not be installed on your
vehicle, depending on the vehicle model
or specifications.
l
The table above shows the main equip-
ment corresponding to each fuse.
The fuse block does not contain spare 7.5 A,
25 A or 30 A fuses. If one of these fuses
burns out, substitute with the following fuse.
7.5 A: 10 A Spare fuse
10 A: 20 A Option
15 A: 30 A Audio system amp fuse
When using a substitute fuse, replace with a
fuse of the correct capacity as soon as possi-
ble.
Identification of fuse
E01008101448
Capacity Colour
7.5 A Brown
10 A Red
15 A Blue
20 A Yellow
25 A Natural (White)
30 A
Green (fuse type) / Pink (fu-
sible link type)
40 A Green (fusible link type)
Fuse replacement
E01007802012
1. Before replacing a fuse, always turn off
the electrical circuit concerned and place
the ignition switch in the “LOCK” posi-
tion or put the operation mode in OFF.

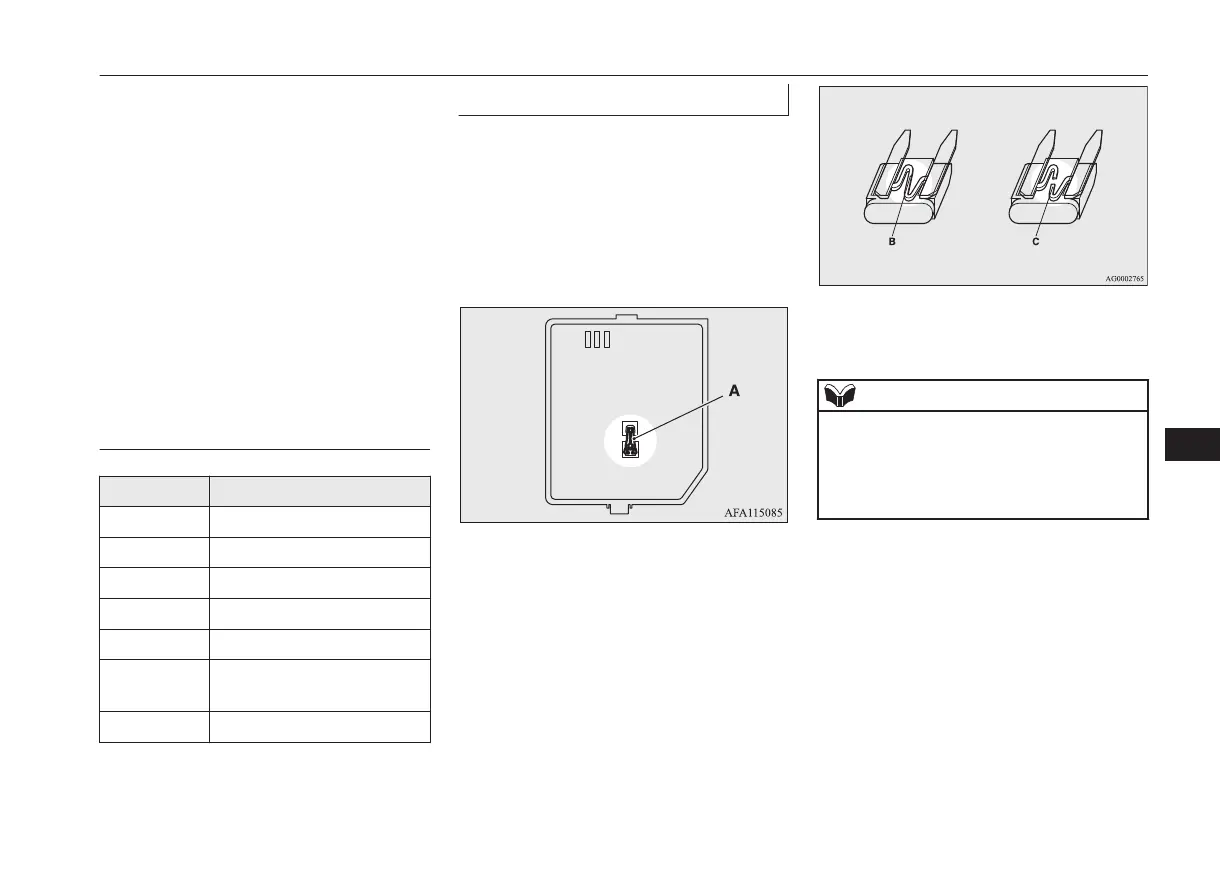

2. Remove the fuse puller (A) from the in-
side of the fuse block cover in the engine
compartment.
3.
Referring to the fuse load capacity table,
check the fuse pertaining to the problem.
B- Fuse is OK
C- Blown fuse
NOTE
l
If any system does not function but the fuse
corresponding to that system is normal, there
may be a fault in the system elsewhere. We
recommend you to have your vehicle
checked.
Fuses
10-21
OGKE18E1
Maintenance
