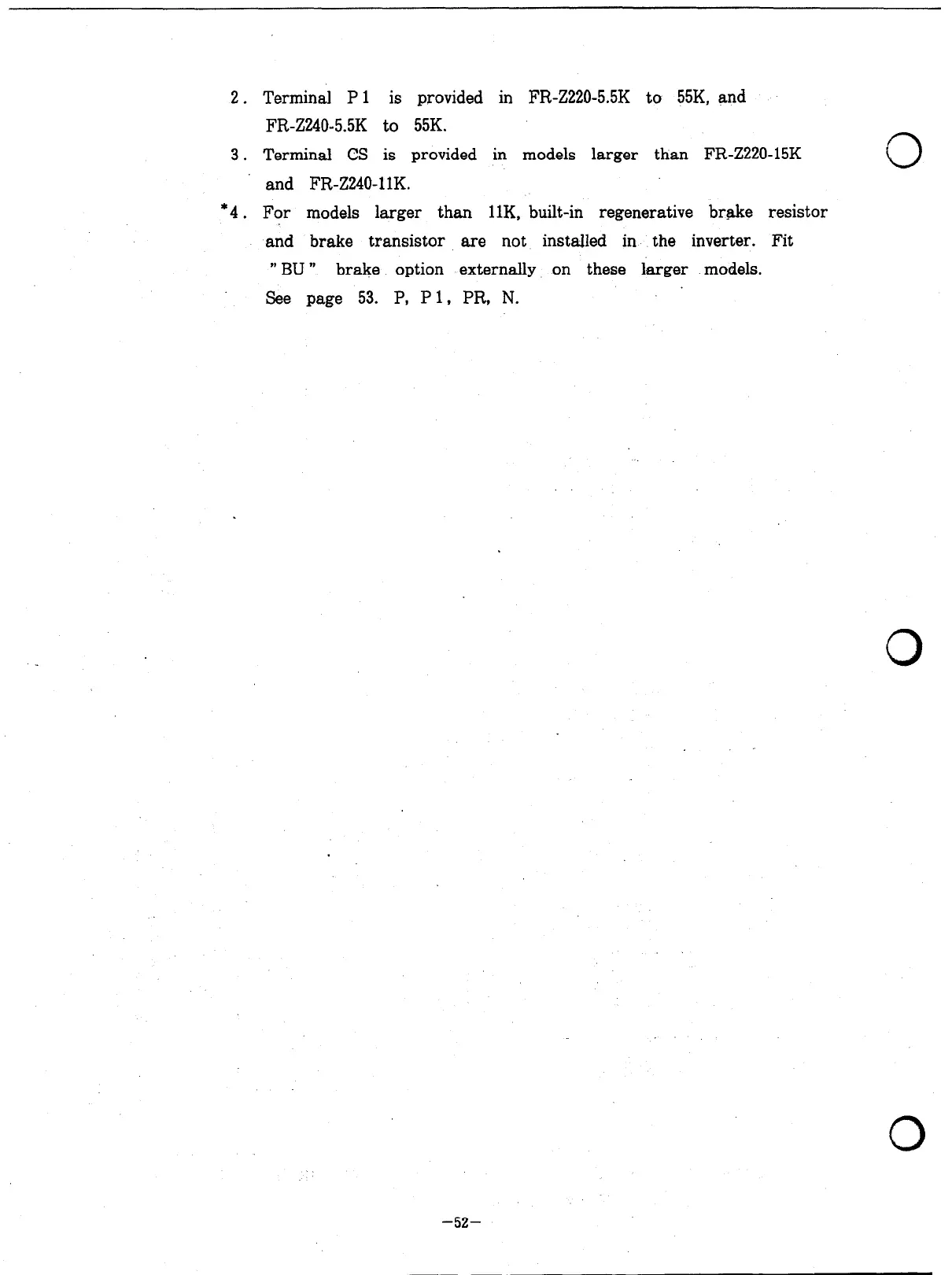

2. Terminal P 1 is provided in FR-Z220-5.5K to 55K, and
FR-Z240-5.5K to 55K.
3. Terminal CS is provided in models larger than FR-Z220-15K
and FR-Z240-11K.
*4 . For models larger than llK, built-in regenerative brake resistor
and brake transistor are not installed in the inverter. Fit
” BU ” brake option externally. on these larger models.
See page 53. P, P 1, PR, N.
0
0
0
-52-
