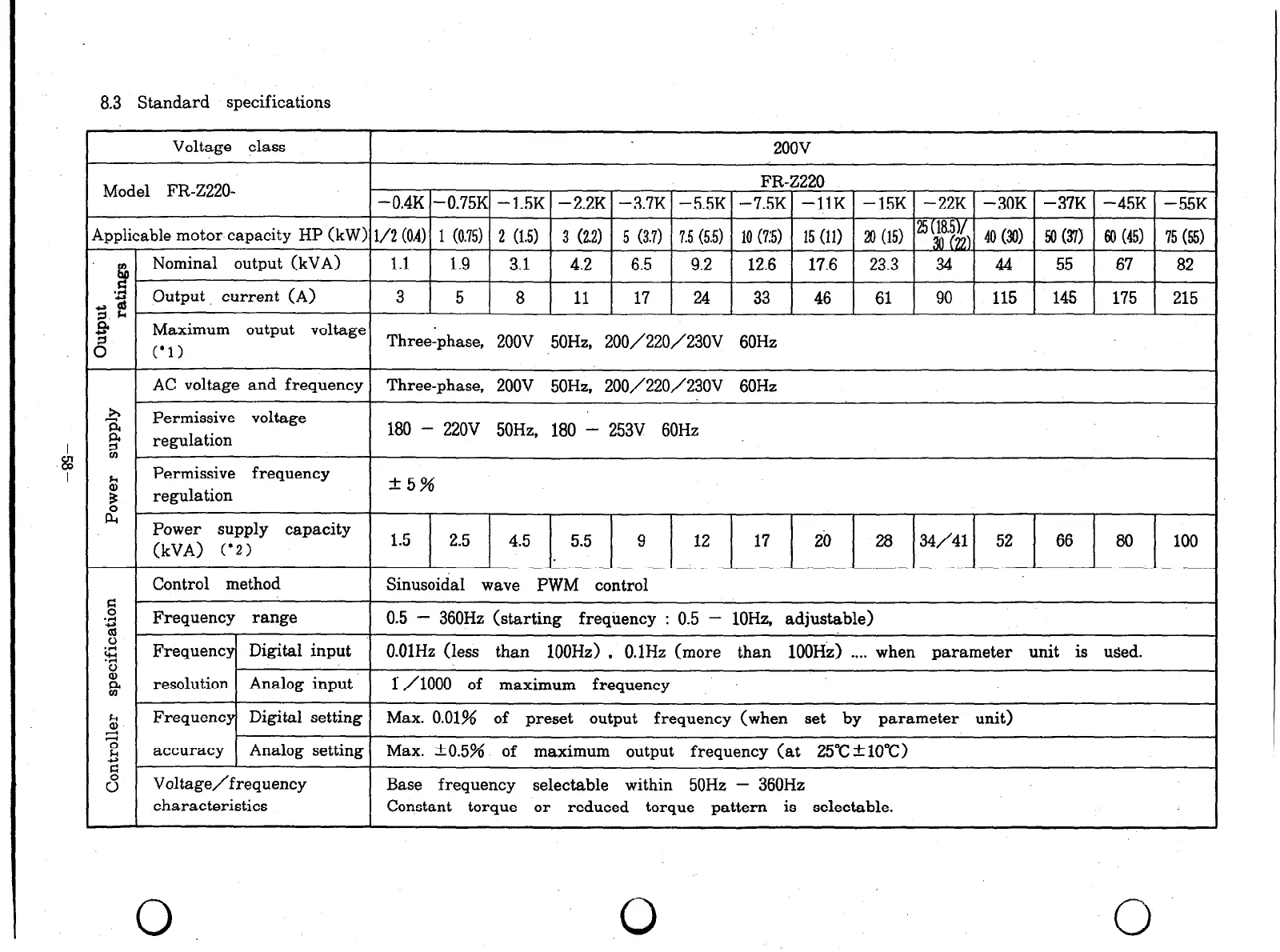

8.3 Standard specifications
Voltage class 2oov
Model FR-ZZZO-
FR-Z220
-0.4K -0.75K -1.5K -2.2K -3.7K -5.5K -7.5K -1lK -15K -22K -3OK -37K -45K -55K
ipplicable motor capacity HP (kW)
i/2 (0.4) 1 (0.75) 2 (1.5) 3 (2.2) 5 (3.7) 7.5 (5.5)
10 (7:5)
15 (11) 20 (15) ‘($t$ 40 (30)
50 (371 60 (45) 75 (55)
0 Nominal output (kVA)
i?
1.1 1.9 3.1 4.2 6.5 9.2
12.6 17.6 23.3
34 44 55 67
82
,.d Output, current (A)
*w
3 5 8 11 17 24
33 46 61
90 115 145 175
215
Sk
9
8
Maximum output voltage
C.1)
Three:phase, 2OOV 50H2, 200/220/23OV 60Hz
AC voltage and frequency
Three-phase, 2OOV 50H2, 200/220/23OV 60Hz
4
$
Permissive voltage
regulation
180 - 22OV 5OH2, 180 253V 60Hz
-
cn
.
k
Permissive frequency
regulation
+5%
B
fc
Power swdy capacity
(kVA) (‘2)
1
5
2 5 4 5 5 5 g 12
17
2b 28 34/41 52
66 80 100
Control method Sinusoidal wave PWM control
Ei
5 Frequency range
0.5
-
360Hz (starting frequency : 0.5 -
lOHz,
adjustable)
d
0
5 Frequency Digital input
O.OlHz (less than 100Hz) , O.lHz (more
than
lOOH&) . . . . when parameter
unit is used.
ii
,a
resolution Analog input I /lOOO of maximum frequency
ii
Frequency Digital setting
Max. 0.01% of preset output frequency (when set by parameter unit)
2
E
z
accuracy Analog setting
Max. *0.5% of maximum output frequency (at 25“C+lO”C)
s
Voltage/frequency Base frequency selectable within 50Hz - 360Hz
characteristics Constant torque or reduced torque pattern is selectable.
0
0
0
