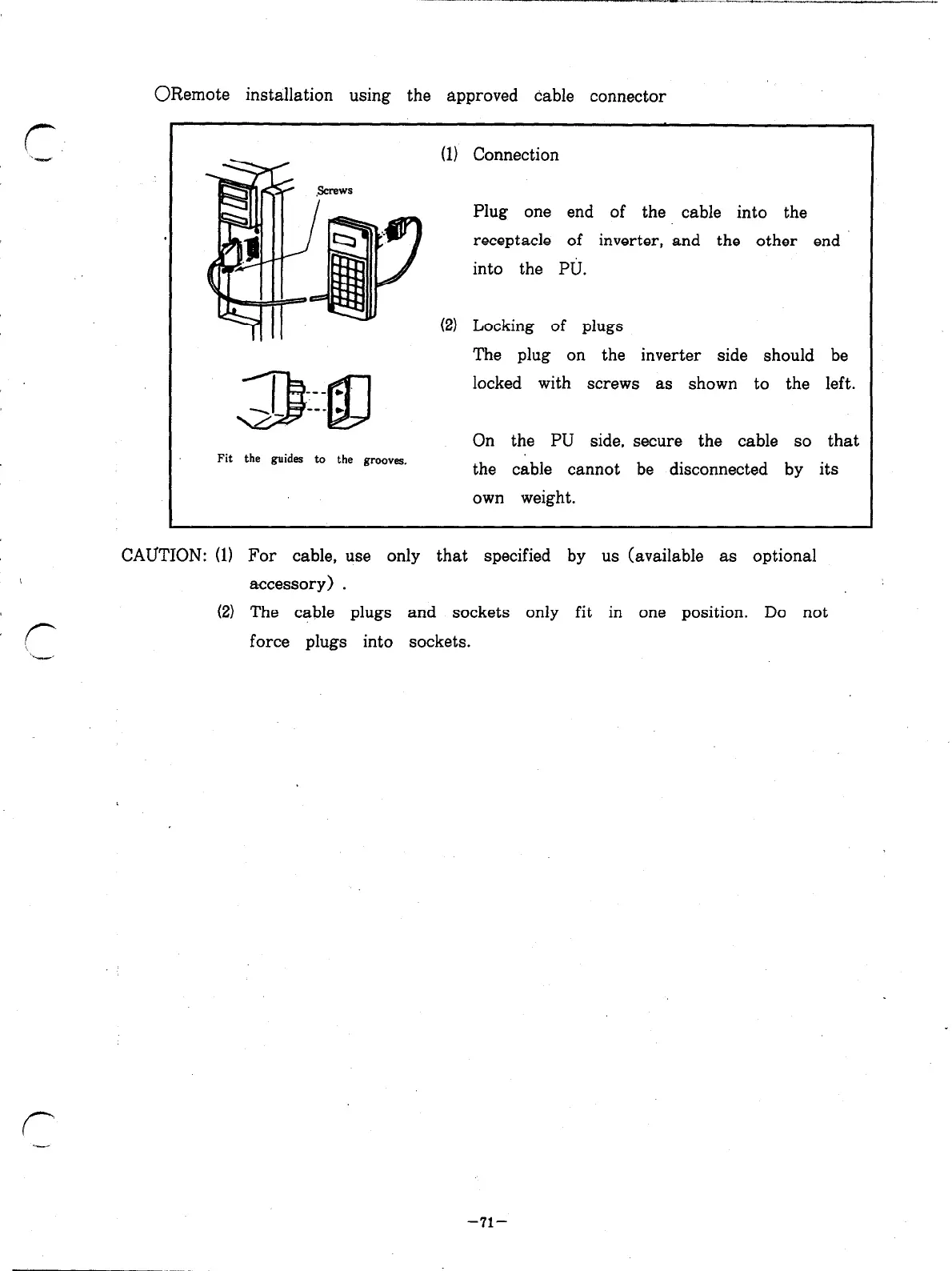

ORemote installation using the approved cable connector
(1)
Connection
Plug one end of the cable into the
receptacle of inverter, and the other end
into the PU.
Locking of plugs
The plug on the inverter side should be
locked with screws as shown to the left.
On the PU side, secure the cable so that
Fit the guides to the grooves.
the cable cannot be disconnected by its
own weight.
CAUTION: (1) For cable, use only that specified by us (available as optional
accessory) .
(2) The cable plugs and sockets only fit in one position. Do not
force plugs into sockets.
-71-
