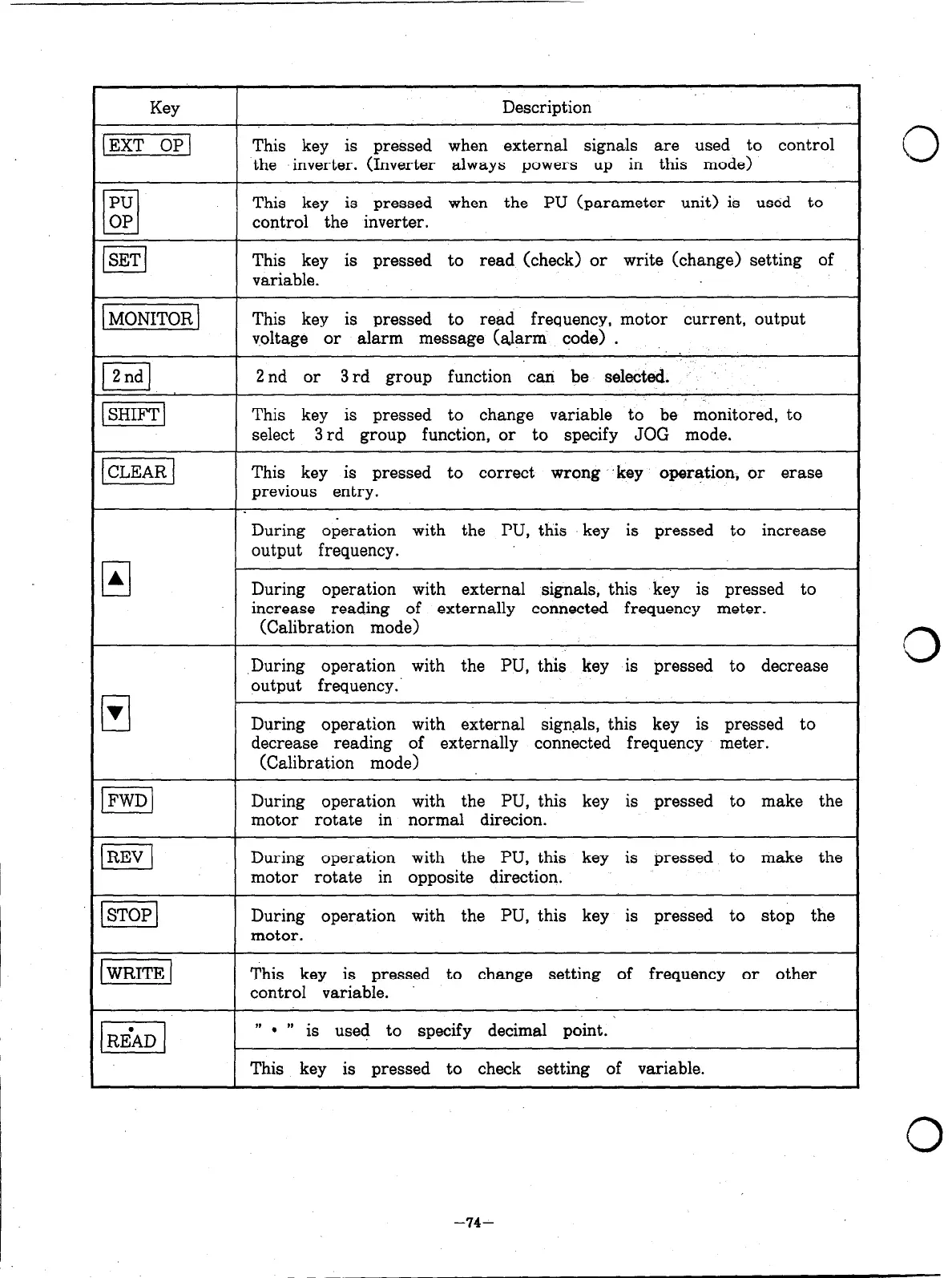

Key
Description
pzE?q
This key is pressed when external signals are used to control
the inverter. (Inverter always powers up in this mode)
This key is pressed when the PU (parameter unit) is used to
control the inverter.
I
SET
This key is pressed to read (check) or write (change) setting of
variable.
IMONITOR
This key is pressed to read frequency, motor current, output
v,oltage or alarm message (alarm code) .
0,
2nd
2 nd or 3 rd group function can be selected.
piiiiiq This key is pressed to change variable to be monitored, to
select 3 rd group function, or to specify JOG mode.
This key is pressed to correct wrong ‘key operation, or erase
previous entry.
tl
A
During operation with the PU, this key is pressed to increase
output frequency.
During operation with external signals, this key is pressed to
increase reading of externally connected frequency meter.
(Calibration mode)
q
v
.During operation with the PU, this key is pressed to decrease
output frequency.’
During operation with external signals, this key is pressed to
decrease reading of externally connected frequency meter.
(Calibration mode)
I
FWD
During operation with the PU, this key is pressed to make the
motor rotate in normal direcion.
El
REV
lsTop[
During operation with the PU, this key is pressed to make the
motor rotate in opposite direction.
During operation with the PU, this key is pressed to stop the
motor.
pfiiFq
This key is pressed to change setting of frequency or other
control variable.
~
ml ”
l
” is used to specify decimal point.
This key is pressed to check setting of variable.
0
0
0
-74-
