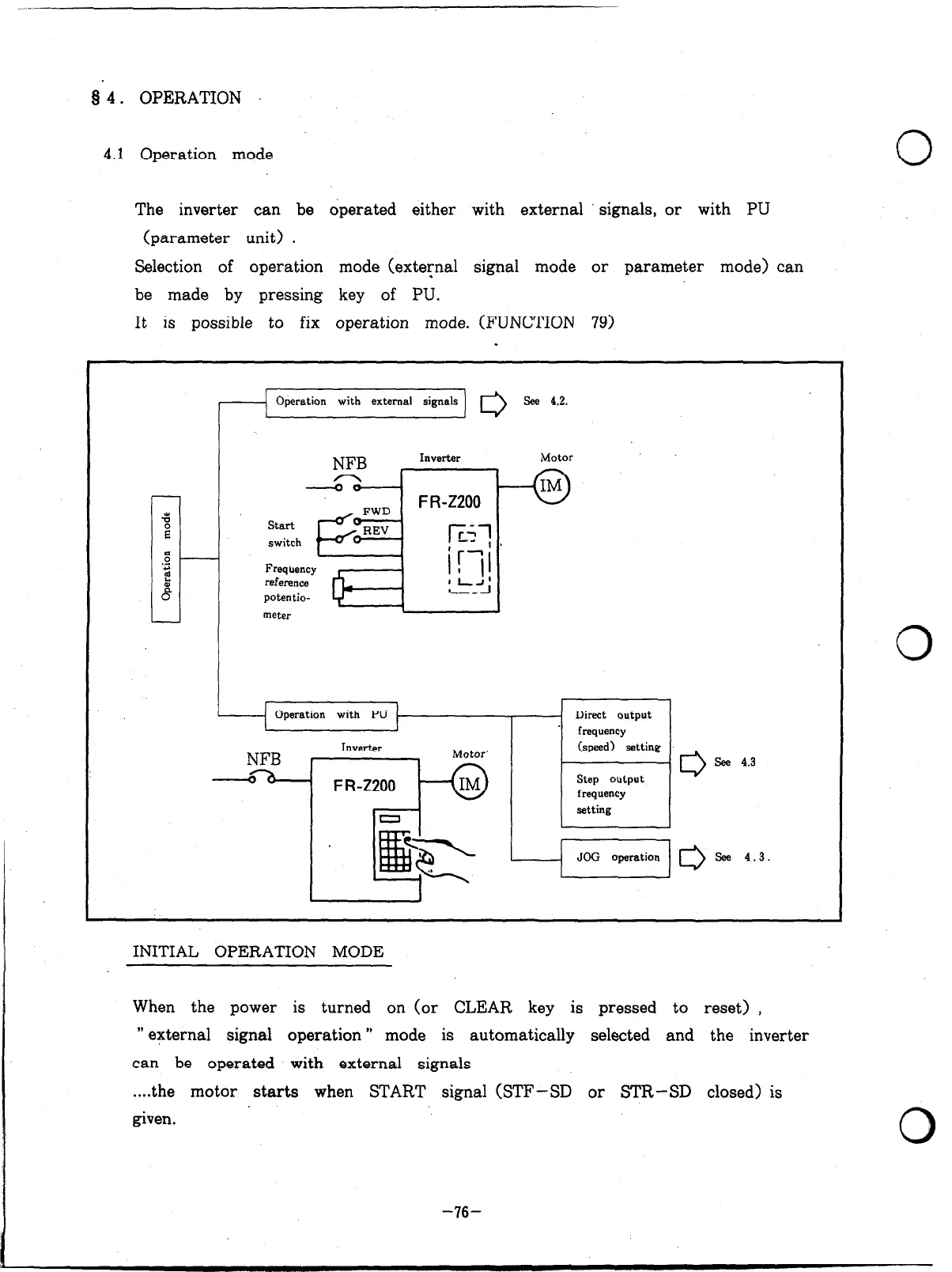

3’4 . OPERATION
4.1 Operation mode
The inverter can be operated either with external signals, or with PU
(parameter unit) .
Selection of operation mode (exte;nal signal mode or parameter mode) can
be made by pressing key of PU.
It is possible to fix operation mode. (FUNCTION 79)
Operation with external signals
Tc-----J o see 4.2.
NFB
IWWrter
n
I
Motor
0
IM
Direct output
frequency
NFB
Inverter
FR-Z200
Motor’
0
see 4.3
setting
3.
INITIAL OPERATION MODE
When the power is turned on (or CLEAR key is pressed to reset) ,
” external signal operation ” mode is automatically selected and the inverter
can be operated with external signals
. . ..the motor starts when START signal (STF-SD or STR-SD closed) is
given.
-76-
