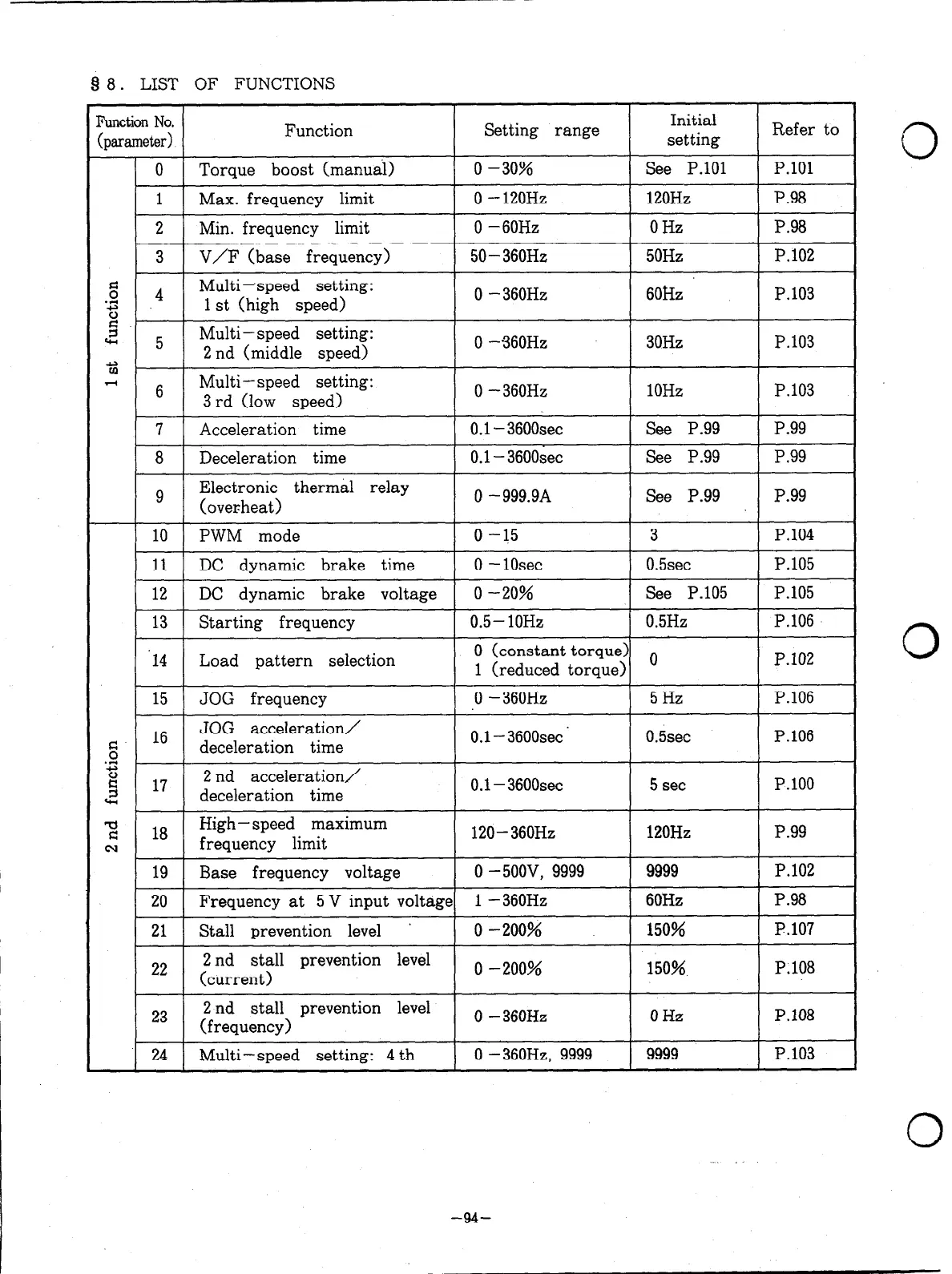

Q 8. LIST OF FUNCTIONS
Function No.
Initial
(parameter)
Function Setting range
setting
Refer to
0
Torque boost (manual) 0 -30%
See P.101
P.101
1 Max. frequency limit
0 -120Hz 120Hz P.98
2 Min. frequency limit
0 -6OHz
OHz P.98
3 V/F (base frequency) 50 - 360Hz 50Hz
P.102
Fi
4
Multiispeed setting:
. ..4 1 st (high speed)
0 -360Hz 608~ P.103
s
5
5 Multi-speed setting:
2 nd (middle speed)
0 -360Hz 30Hz
P.103
3
v-4
6
Multi- speed setting:
3 rd (low speed)
0 -360Hz
10Hz P.103
7 Acceleration time
0.1 - 3600sec See P.99 P.99
8 Deceleration time
0.1 - 3600sec See P.99 P.99
9
Electronic thermal relay
(overheat)
0 -999.9A
See P.99 P.99
10 PWM mode
0 -15 3 P.104
11 DC dynamic brake time 0 -1Osec
0.5sec P.105
12 DC dynamic brake voltage 0 -20%
See P.105 P-105
13 Starting frequency
0.5- 10Hz 0.5Hz P.106
‘14 Load pattern selection
0 (constant torque) o
1 (reduced torque)
P.102
15 JOG frequency
0 -360Hz 5Hz P.106
f3
16
JOG acceleration/
deceleration time
O.l-3600sec 0.5sec P.106
.”
s
2 17 deceleration 2 nd acceleration/ time 0.1 - 3600sec 5 set
P.100
3 18 High - speed maximum
frequency limit
120 - 360Hz 120Hz P-99
hl
19 Base frequency voltage 0 -5oov, 9999 9999
P.102
20 Frequency at 5 V input voltage
1 -360Hz 60Hz P.98
21 Stall prevention level ’
0 -200% 150%
P.107
22 2 nd stall prevention level
(current)
0 -200%
150% P.108
23 2 nd stall prevention level
(frequency)
0 -360Hz
OHz P.108
24 Multi-speed setting: 4 th 0 -360Hz. 9999 9999
P.103
0
0
0
-94-
