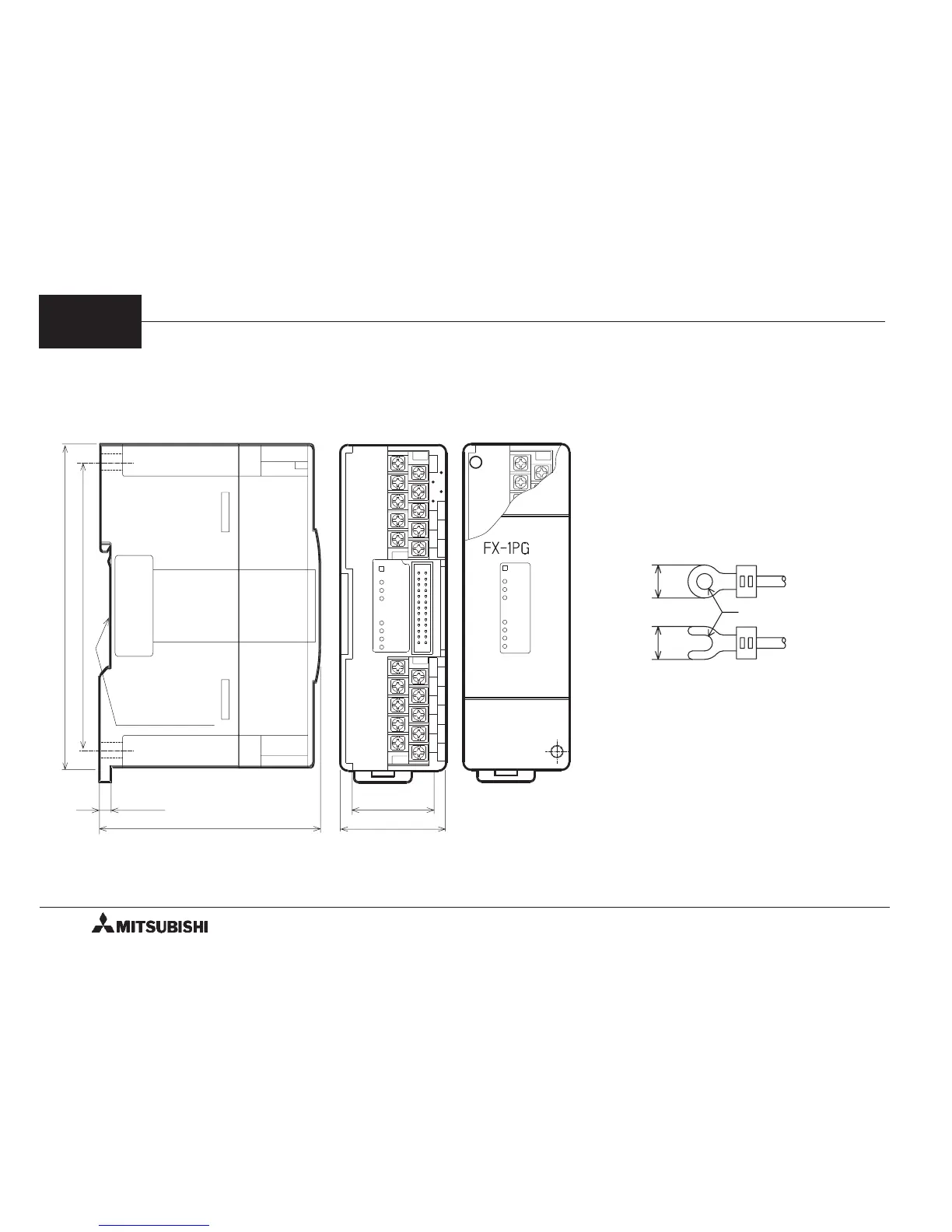

2. OUTSIDE DIMENSIONS
2.1 Outside Dimensions
FX-1PG
Mass(Weight): Approx. 0.3 kg (0.66 lbs)
Terminal screw: M3.5
Terminal screw tightening torque:
0.5 to 0.8 N⋅m
Applicable terminals:
Accessories: No. labels for special modules
Dimenssions : mm (inch)
•
The PGU is installed to the right side of a
main unit or an extension unit of an
FX/FX
2C Series PC or of an other extension block. The PGU can be installed using a DIN rail (DIN 46277, Width: 35 mm)
or directly installed using M4 screws.
(For the details, refer to the handy manual packed together with the main unit.)
STOP
DOG
PG0
FP
RP
CLR
ERR
POWER
POWER
STOP
DOG
PG0
FP
RP
CLR
ERR
1PG
COM1
FPVH RP
RP0
CLR
FP0VL
VL
COM0
SG PG0-
STOP
DOG
S/S PG0+
45(1.77)
140(5.51)
95(3.74)
125(4.92) Mounting holes
Attachment groove
35mm Wide
DIN 46277 rail
10(0.39)
Mounting holes
35(1.38)
For M3.5
6.8(0.27) or less
6.8(0.27) or less
2
FX-1PG/FX 2N -1PG PULSE GENERATOR UNIT OUTSIDE DIMENSIONS
2-1
