Mitsubishi HC7000 User Manual

EN-15
1
2
1
2
Connect one end of the optional video cable to the
VIDEO IN terminal of the projector.
Connect the other end of the video cable to the video
output terminal of the video equipment.
1.
2.
Also read the instruction manual of the equipment to be connected.
Contact your dealer for details of connection.
When a TV tuner or VCR is connected:
When you use this projector with a TV tuner or VCR connected, no image may appear or a message of NO SIGNAL
may appear on the screen when you change the channel via any channel that is not being received. In such a case,
set the channels of the TV tuner or VCR again. To avoid such symptom, use the TV tuner or VCR with its channel skip
function (that is a function not to display channels that are not being received) enabled.
Connecting to a DVD player or HDTV decoder
To connect this projector to video equipment that has component video output terminals, such as a DVD player, use
the COMPONENT VIDEO IN terminals.
•
•
The terminal’s names Y, P
B
, and P
R
are given as examples of when a HDTV decoder is connected.
The terminal’s names vary depending on the connected devices.
Images may not be projected correctly depending on the type of the DVD player you use.
Though it may take some time before an image is displayed on the screen depending on the type of the input
signal, such symptom is not a malfunction.
When connecting a HDTV decoder having RGB output terminals, set COMPUTER INPUT to RGB in the SIGNAL
menu.
•
•
•
•
•

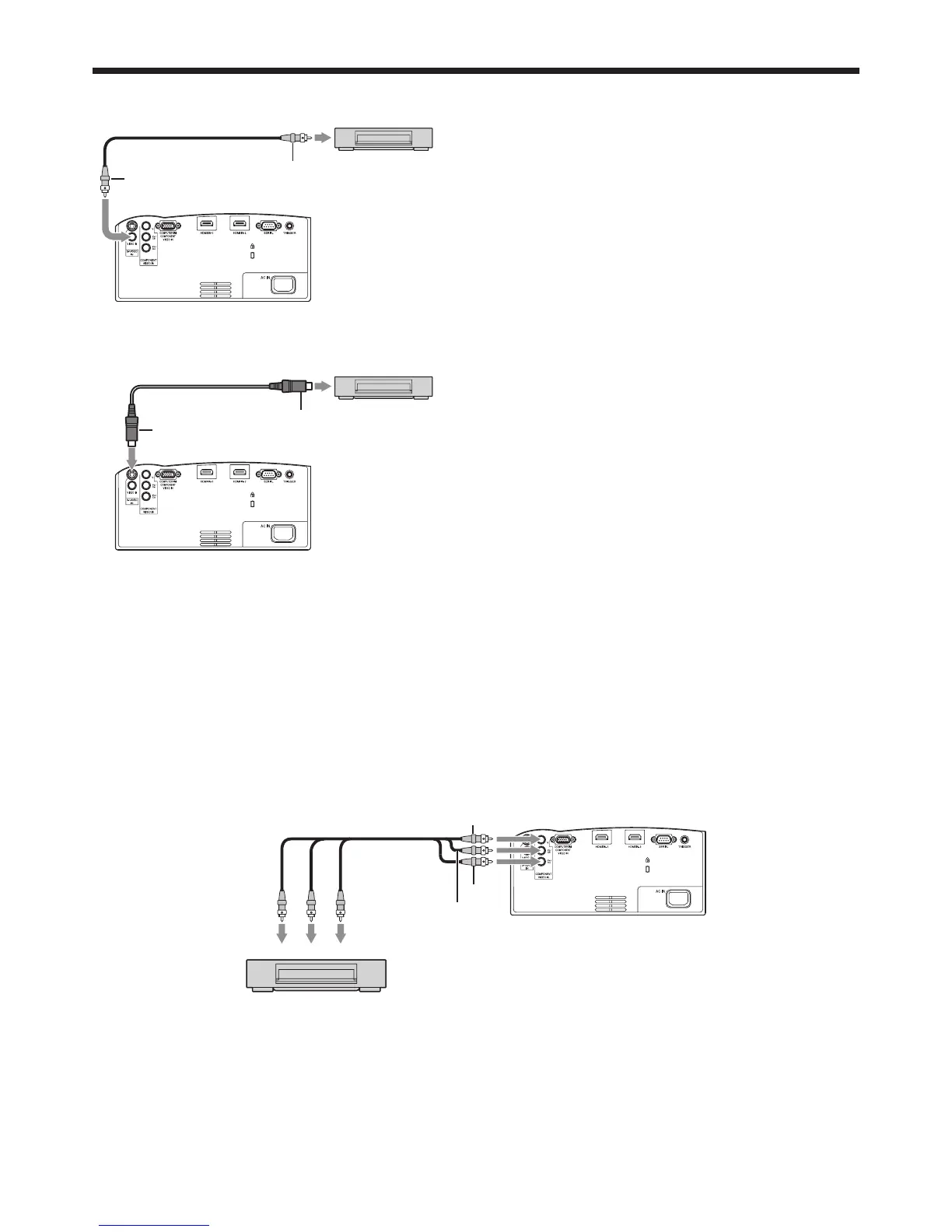

Connecting to a video player, etc.
To video output
terminal
Video cable (option)
S-video cable (option)
To S-VIDEO
IN terminal
To S-video
output terminal
To VIDEO
IN terminal
When the video equipment is equipped with the
S-video output terminal, make the connection as
follows:
Connect one end of the optional S-video cable to the
S-VIDEO IN terminal of the projector.
Connect the other end of the S-video cable to the S-
video output terminal of the video equipment.
1.
2.
PB/CB Y PR/CR
PB/CB
Y
P
R/CR
Y
Component cable (option)
DVD player or HDTV decoder
Video player, or the like
Video player, or the like
Viewing video images (continued)

Mitsubishi HC7000 Specifications

General

Matrix size	0.7 \
Vertical scan range	50 - 120 Hz
Horizontal scan range	15 - 100 kHz
Projection technology	LCD
Contrast ratio (typical)	-
Screen size compatibility	50 - 300 \
Keystone correction, vertical	-15/15 °
Lamp power	160 W
Light source type	Lamp
Service life of light source (economic mode)	5000 h
Focal length range	23.5 - 37.6 mm
Audio input	1
Dimensions (WxDxH)	427 x 440 x 159 mm
Power requirements	AC 100-240V, 50/60Hz
Connectivity technology	Wireless
Noise level	17 dB
Dot clock scanning frequency	162 MHz
Full HD	No
Analog signal format system	NTSC, PAL, SECAM
Serial interface type	RS-232
Power consumption (typical)	250 W

Weight and Dimensions

Weight	7500 g
