Mitsubishi HC7000 User Manual

EN-46
Specifi cations (continued)

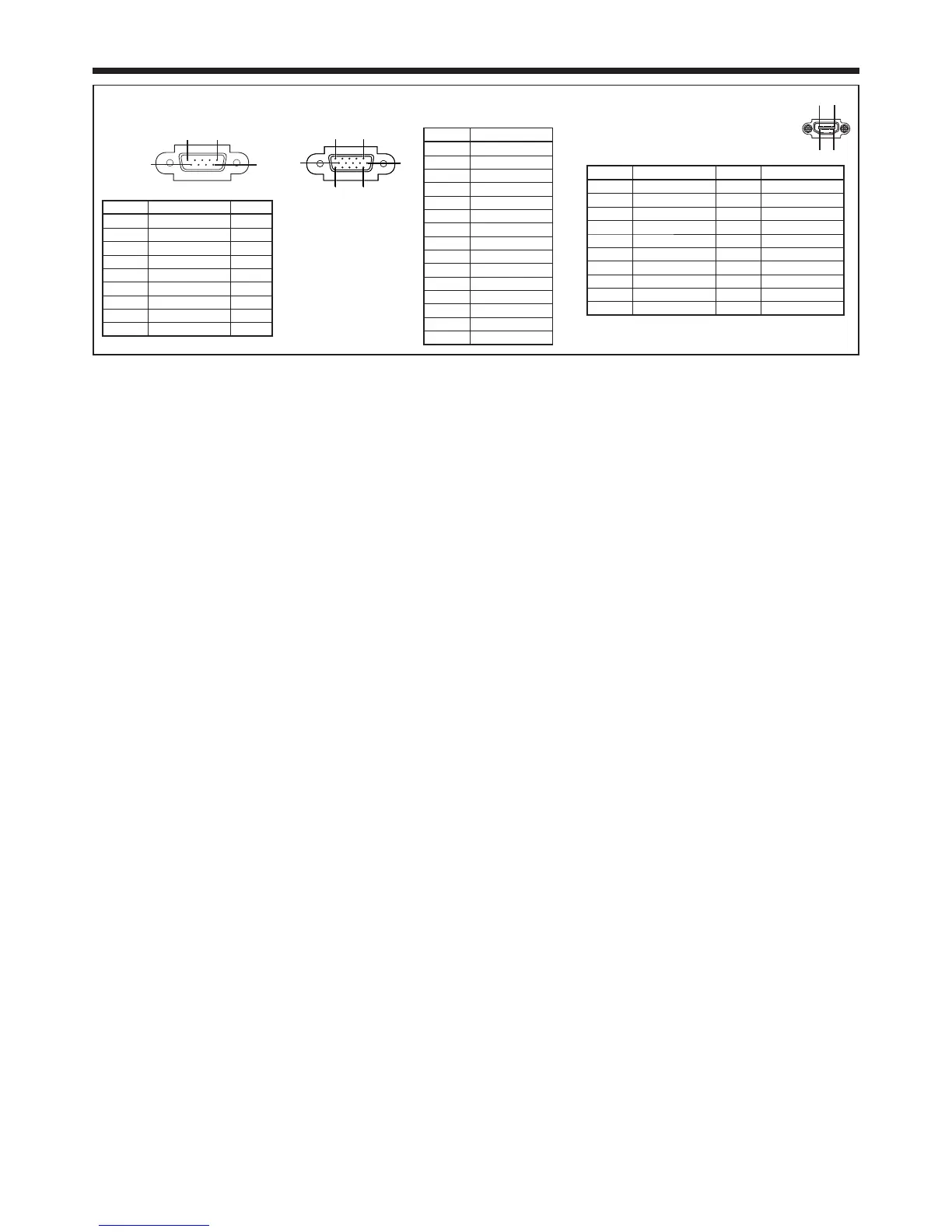

Connectors
SERIAL (D-SUB 9-pin)
1 5
6
9
Pin No. Name I/O
1––
2 TXD IN
3 RXD OUT
4––
5 GND –
6––
7––
8––
9––
COMPUTER IN/COMPONENT VIDEO IN
(Mini D-SUB 15-pin)
Pin No. Spec.
1 R(RED)/P
R
/C
R
2 G(GREEN)/Y
3 B(BLUE)/P
B
/C
B
4 GND
5 GND
6 GND
7 GND
8 GND
9 DDC 5V
10 GND
11 GND
12 DDC Data
13 HD/CS
14 VD
15 DDC Clock
HDMI IN
(HDMI 19-pin)
19
1
2
18
PIN No. Spec. PIN No. Spec.
1 TMDS Data2+ 11 TMDS Clock Shield
2 TMDS Data2 Shield 12 TMDS Clock-
3 TMDS Data2- 13 CEC
4 TMDS Data1+ 14 –
5 TMDS Data1 Shield 15 SCL
6 TMDS Data1- 16 SDA
7 TMDS Data0+ 17 DDC Ground
8
TMDS Data0 Shield 18 +5 V Power
9 TMDS Data0- 19 Hot Plug Detect
10 TMDS Clock+
Replacement part (option/not included in the box)
Spare lamp VLT-HC7000LP
Option fi lter CF6000
15
11
6
10
15
15
11
6
10
15

Mitsubishi HC7000 Specifications

General

Matrix size	0.7 \
Vertical scan range	50 - 120 Hz
Horizontal scan range	15 - 100 kHz
Projection technology	LCD
Contrast ratio (typical)	-
Screen size compatibility	50 - 300 \
Keystone correction, vertical	-15/15 °
Lamp power	160 W
Light source type	Lamp
Service life of light source (economic mode)	5000 h
Focal length range	23.5 - 37.6 mm
Audio input	1
Dimensions (WxDxH)	427 x 440 x 159 mm
Power requirements	AC 100-240V, 50/60Hz
Connectivity technology	Wireless
Noise level	17 dB
Dot clock scanning frequency	162 MHz
Full HD	No
Analog signal format system	NTSC, PAL, SECAM
Serial interface type	RS-232
Power consumption (typical)	250 W

Weight and Dimensions

Weight	7500 g
