3 Controller
Outside dimensions/Installation dimensions 3-46
3.3.3 Cable lead-in and dimension
The controller has the openings parts for pulling out the cable as shown in Fig. 3-11.

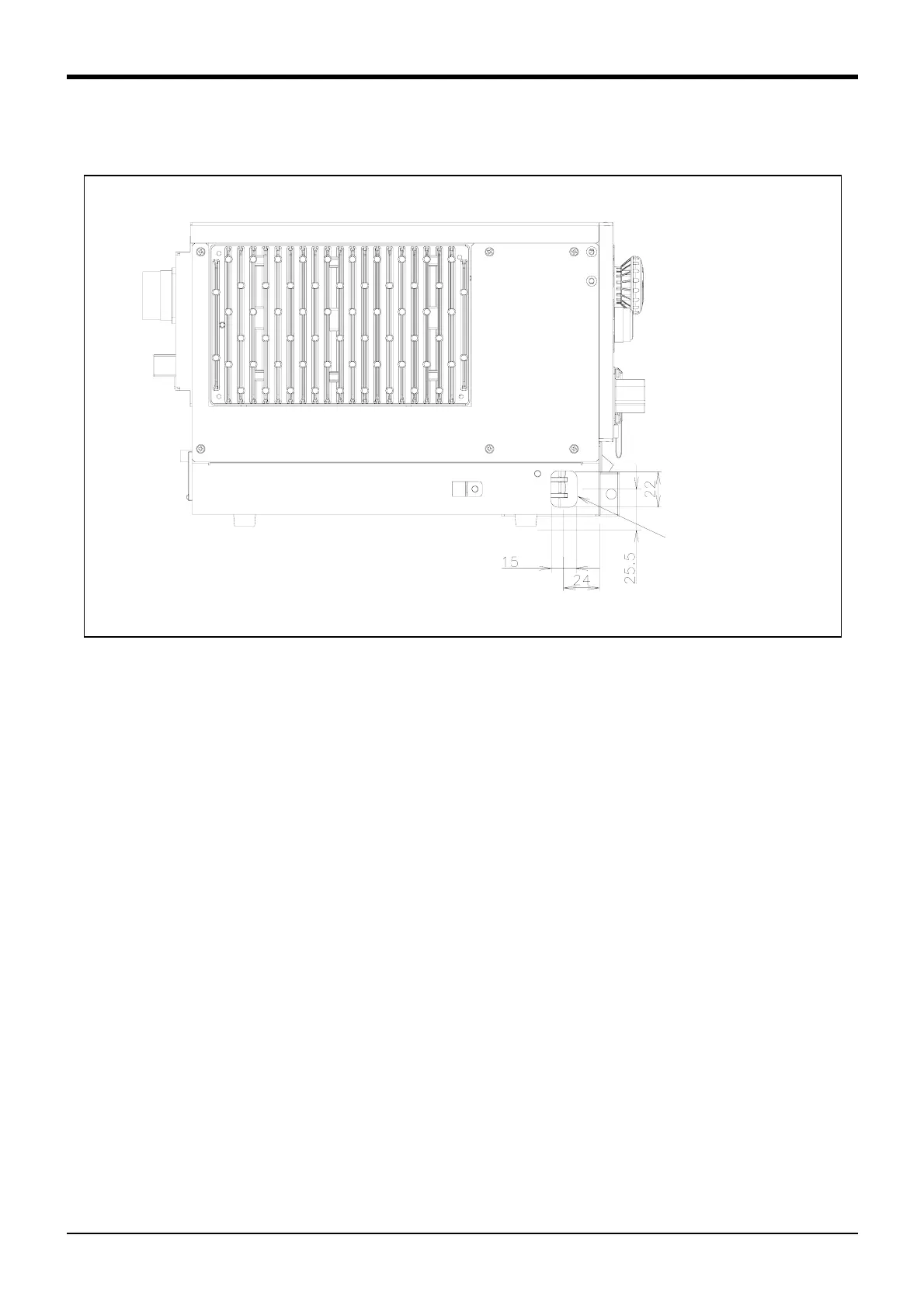

Fig.3-11 ： Cable lead-in and dimension of the controller (CR1DA-700 series)
<CR1DA-700 series>
* Although the figure is standard specification, CE specification is the same.
Input power supply lead-in
(15x22)
