Mitsubishi MELSEC F2-40MR - AC Input Handlings

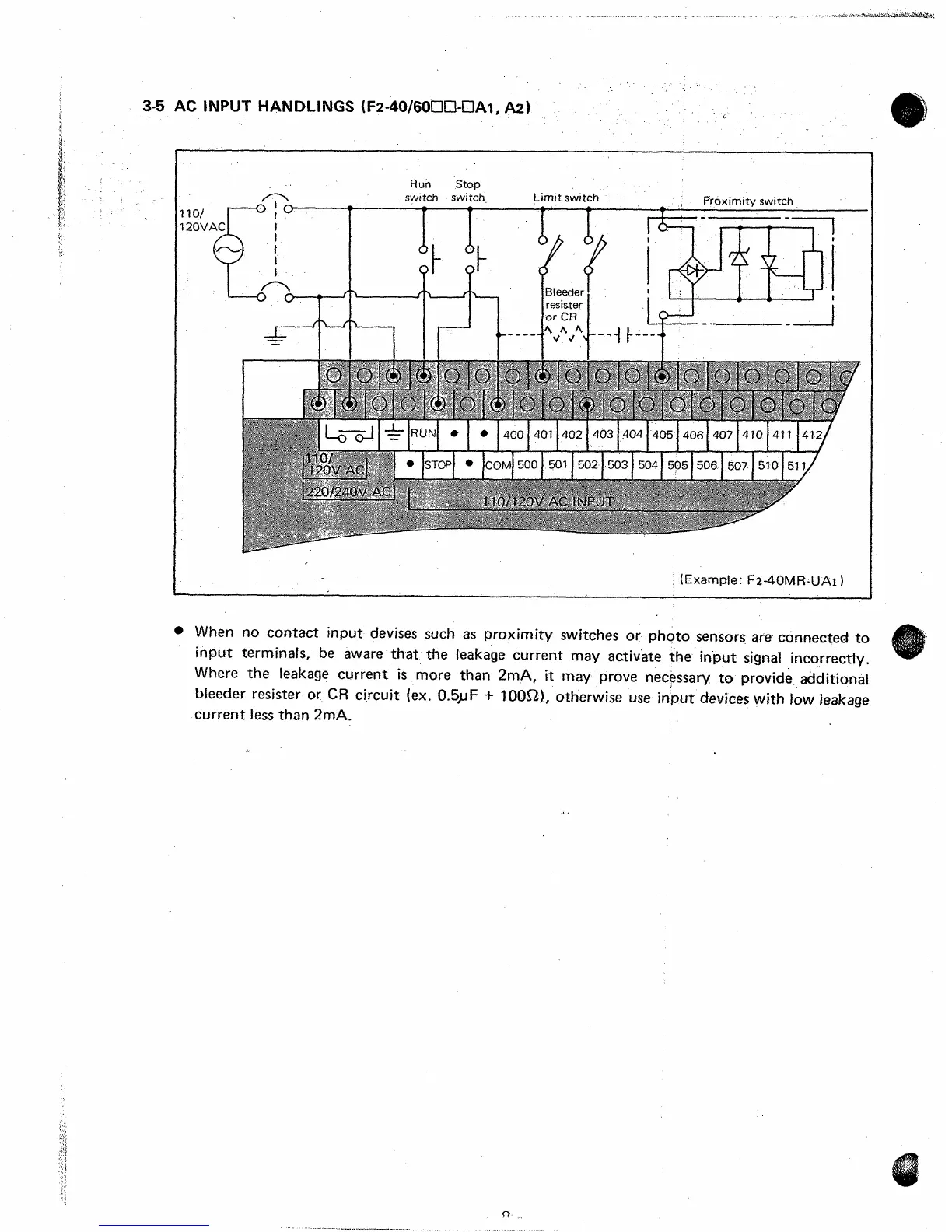

3-5 AC INPUT HANDLINGS (F2-40/60OO-C1A1, A2)
When no contacr input devises such as proximity switches or photo sensors are connected to
input terminals, be aware that the leakage current may activate the input signal incorrectly.
Where the leakage current
is more than 2mA, it may prove necessary to provide additional
bleeder resister
or CR circuit (ex. 0.5yF + IOOSt), otherwise use input devices with tow leakage
current
less than 2mA.
Run stop
switch switch Limit switch
1 IO/
I20V
- (Example: F2-40MR-UAi 1
