Mitsubishi MELSEC F2-40MR User Manual

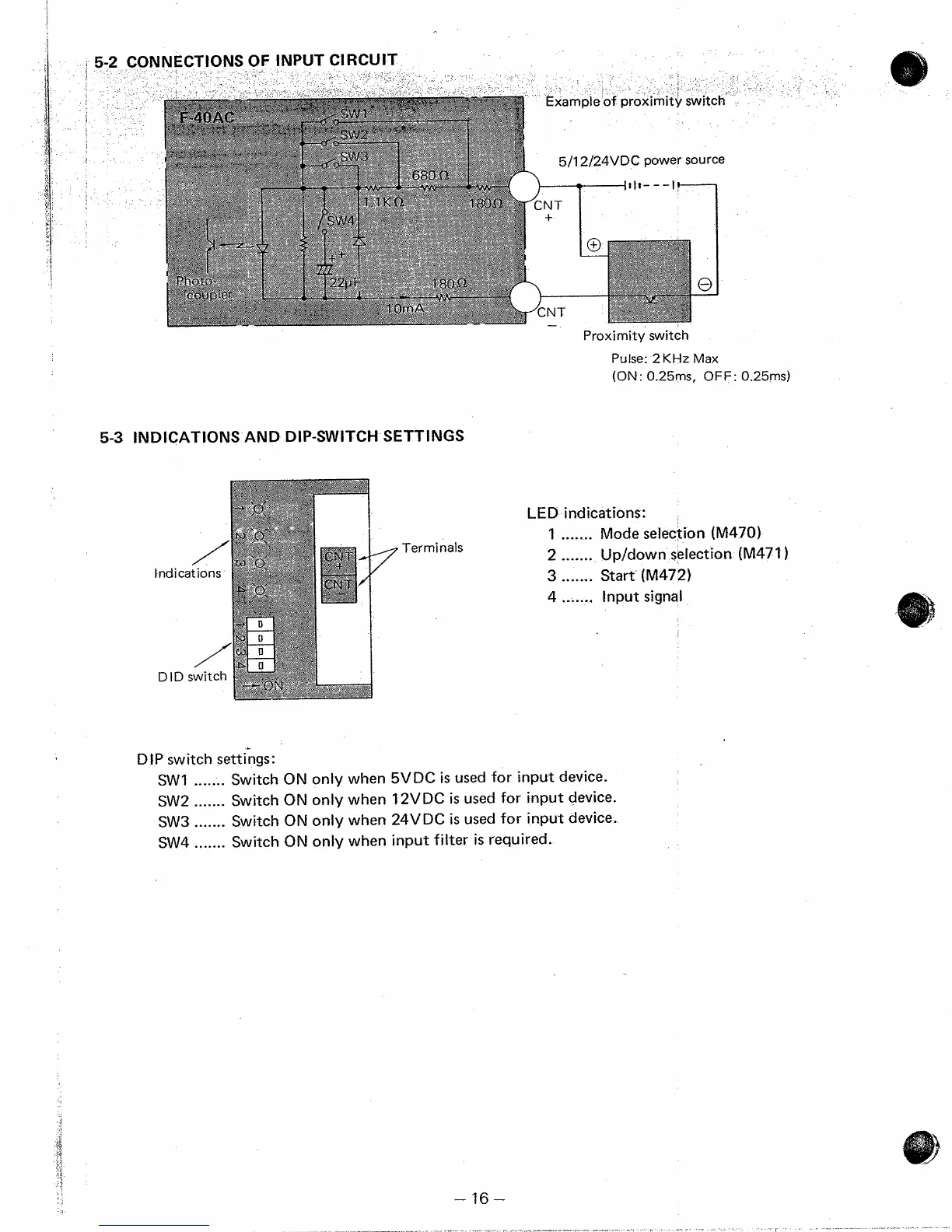

3 5-2 CONNECTIONS OF INPUT CIRCUIT
Example of proximity switch
lt---ll---
Proximity switch
Pulse: 2KMz Max
(ON: 0.25ms, OFF: 0.25ms)
5-3 INDICATIONS AND DIP-SWITCH SETTINGS
Terminals
LED indications:
1 ....... Mode selection tM470)
2
....... Up/down selection (M471)
3 ....... Start (M472)
4 ....... input signal
DIP switch
setthgs:
SWI ....... Switch ON only when 5VDC is used for input device.
SW2 ....... Switch ON only when 12VDC is used for input device.
SW3 ....... Switch ON only when 24VDC is used for input device.
SW4 ....... Switch ON only when input filter is required.
-16-
"_ .......... .....
... ..... .............
. ..
.. .... . 1- L.- " '-1
yl_ ..,... .-,-- ,~-..," I
~ "".,~,,, ~, ;,,: ~,,,~,""- -,l._ll.ll II .-.I" -.,.,.-" I
