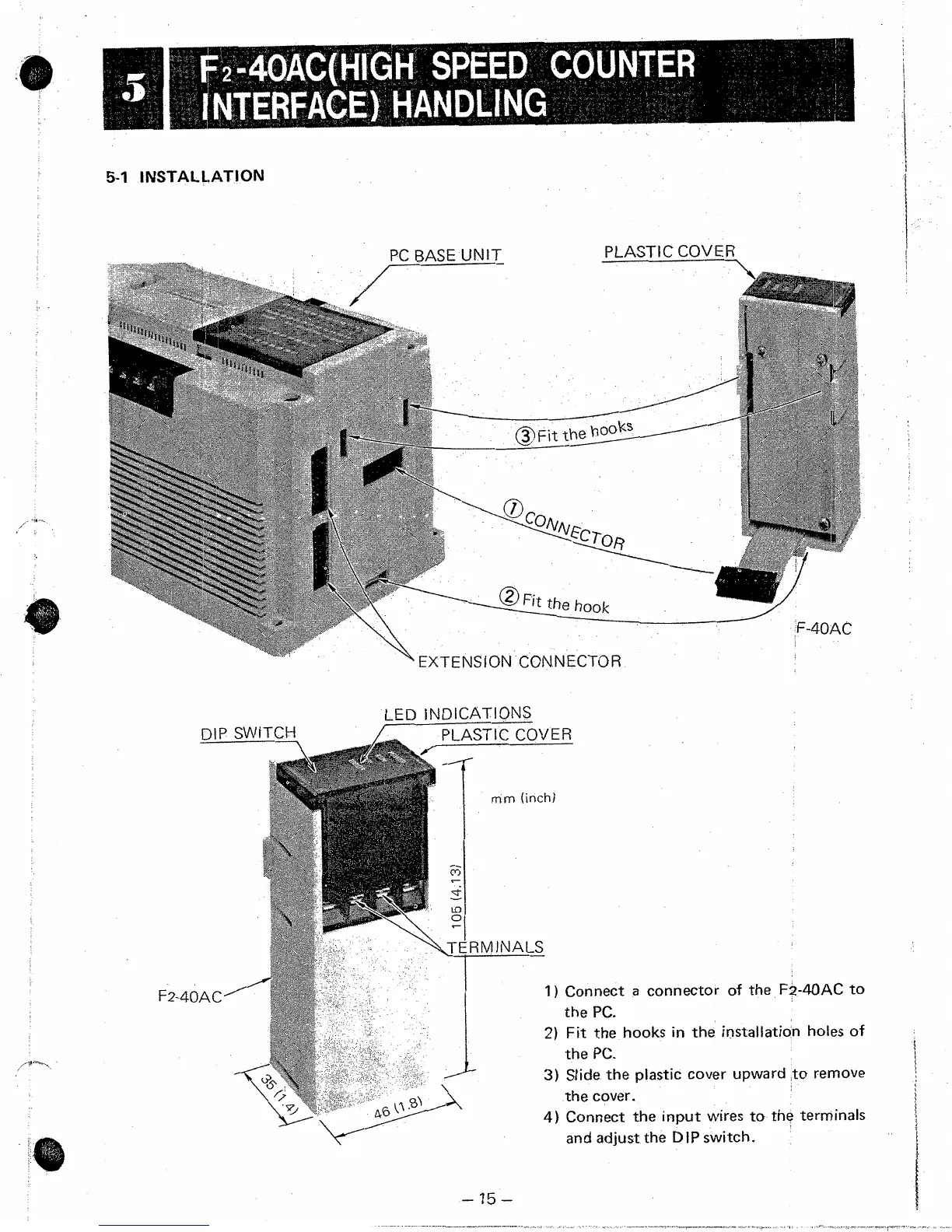

Mitsubishi MELSEC F2-40MR - 5 F2-40 AC (HIGH SPEED COUNTER INTERFACE) HANDLING; 5-1 Installation

--
5-1 I NSTAL LATI ON
'ER
1) Connect a connector of the F2-4OAC to
2) Fit the hooks in the installation holes of
3) Slide the plastic cover upward ,to remove
4) Connect the input wires to the terminals
the
PC.
the PC.
the cover.
and adjust the
DIP switch.
- 15-
I
