Mitsubishi MELSEC Q Series Handbook

3 ETHERNET INTERFACE MODULE REPLACEMENT
3 - 12
(1) Comparison between A/AnS series and Q series
: Compatible, : Partial change required, ×: Incompatible

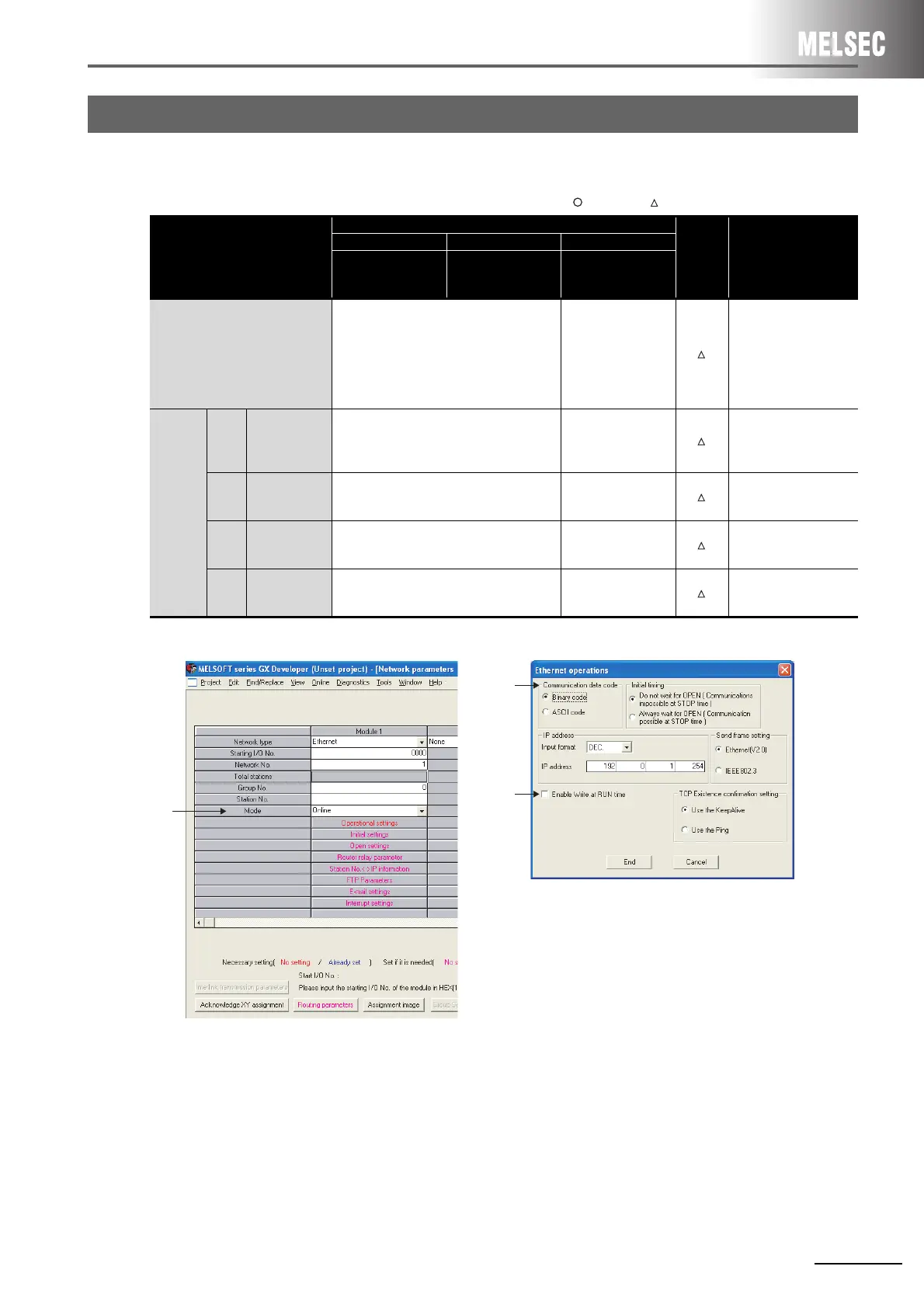

*1 GX Developer network parameters
3.4 Switch Setting Comparison
Switch name
Description
Compat-
ibility
Precautions for
replacement
A series AnS series Q series
AJ71E71N3-T
AJ71E71N-B5
AJ71E71N-B2
A1SJ71E71N3-T
A1SJ71E71N-B5
A1SJ71E71N-B2
QJ71E71-100
QJ71E71-B5
QJ71E71-B2
Operation mode setting switch
Selects the operation mode.
0: Online
1: Offline
2
: Test 1
(self-loopback test)
3: Test 2 (RAM test)
4: Test 3 (ROM test)
-
Set in GX Developer
network parameters.
(1) in *1)
Exchange
condition
setting
switch
SW1
Selection of line
processing at a
TCP timeout
error
Selects line processing when a TCP ULP
timeout error occurs.
OFF: Closes the line
ON: Does not close the line
-
Closes the line when a
TCP ULP timeout error
occurs.
SW2
Data code
setting
Selects the communications data code type.
OFF: Binary code
ON: ASCII code
-
Set in GX Developer
network parameters.
(2) in *1)
SW7
CPU
communications
timing setting
Selects write during RUN enable/disable.
OFF: Write during RUN disabled
ON: Write during RUN enabled
-
Set in GX Developer
network parameters.
(3) in *1)
SW8 Initial timing
Selects the initial processing startup timing.
OFF: Quick start
ON: Normal start
-
A quick start is performed
(Initial processing starts
up with no delay time.)
3)
2)
1)
