― 32 ―

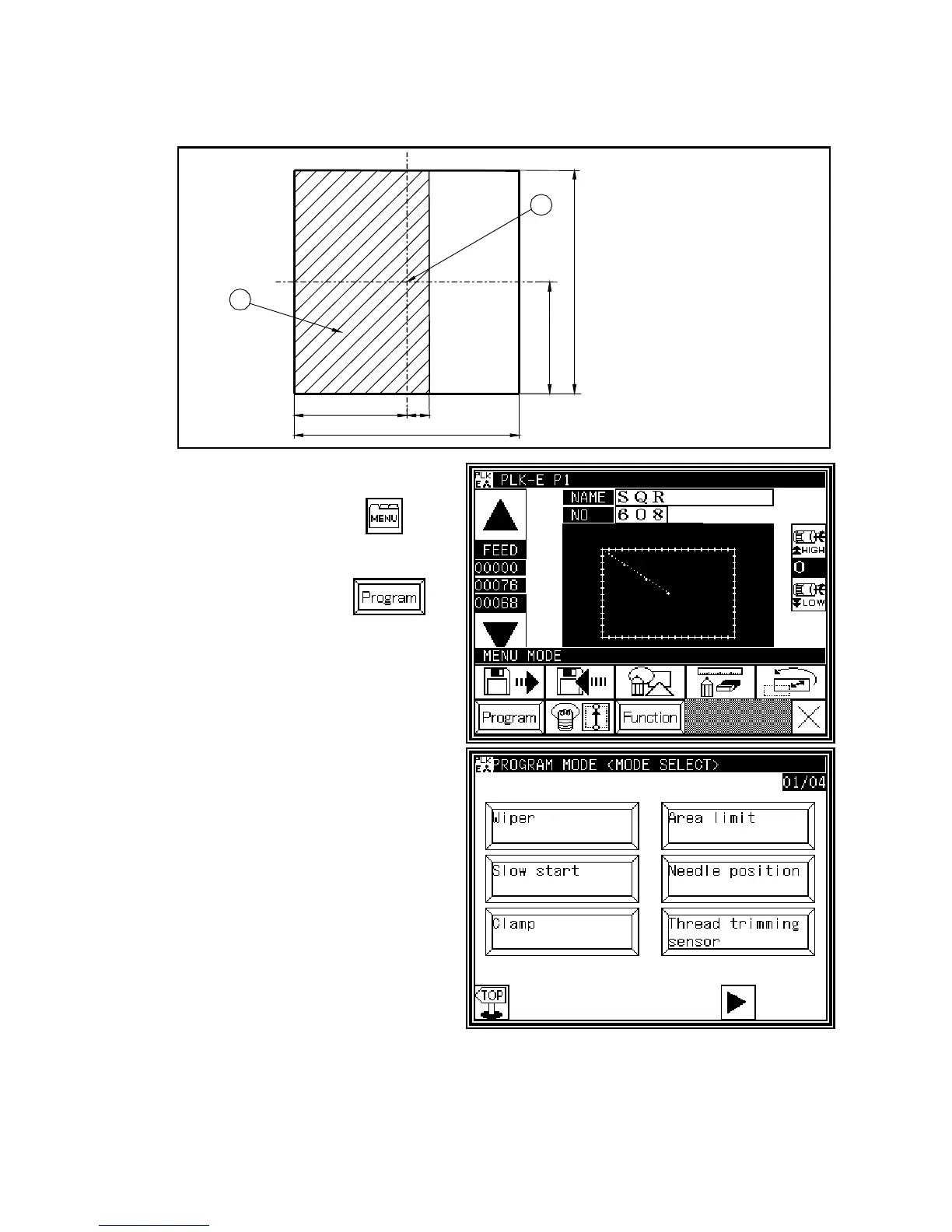

7-19. Adjustment of the mechanical home position
[NOTE] The mechanical home position is fixed at the center of the sewing area when the
sewing machine is shipped from the factory. However, it can be moved within the
area covered with diagonal lines.
50
100
50
10
100
[
Front side
]
[
Rear side
]
2
1
(1) Turn the power switch ON and cancel the
sewing area limit with the operation panel.
For this cancellation, press key at
the normal mode condition, then MENU
MODE is appeared. Press
key. And press [Area limit] button.
Please select [Area limit control (ALC)].
If you select ALC=ON, area limit control is
canceled.
[NOTE] If do not cancel the sewing area
limit, shifting the mechanical
home position make the
effective sewing area narrower
than the original.
(2) After the cancellation of the sewing area
limit, once, turn the power switch OFF.
7-19-1. Shifting the mechanical home
position to the X direction
(1) Remove the X-Y cover (right), (left) and X cover.
(2) Loosen the detector plate fix screws (2 pieces) (No.1). If move the detector plate
(No.2) to the right, the mechanical home position is shifted to the left and if it is
moved to the left, the mechanical home position is shifted to the right.
(1) Original home position
(2) Adjustable
To Next Page
