8 - 21
MELSEC-Q
8 OPR CONTROL
Restrictions
When this method is used, a deviation will occur in the stop position (OP)
compared to other OPR methods because an error of about 1ms occurs in taking
in the near-point dog ON.
Precautions during operation
(1) An error "Count method movement amount fault" (error code: 206) will occur
and the operation will not start if the "
Pr.50
Setting for the movement
amount after near-point dog ON" is smaller than the deceleration distance
from the "
Pr.46
OPR speed" to "
Pr.47
Creep speed".
(2) If the speed is changed to a speed faster than "
Pr.46
OPR speed" by the
speed change function (refer to Section 12.5.1 "Speed change function".)
during a machine OPR, the distance to decelerate to "
Pr.47
Creep speed"
may not be ensured, depending on the setting value of "
Pr.50
Setting for the
movement amount after near-point dog ON". In this case, the error "Count
method movement amount fault" (error code: 206) occurs and the Machine
OPR is stopped.
(3) The following shows the operation when a machine OPR is started while the
near-point dog is ON.
Pr.50 Setting for the movement amount after
near-point dog ON
ON
1)
5)
4)
3)
2)
Near-point dog OFF
[Operation when a machine OPR is started at
the near-point dog ON position]
1) A machine OPR is started.
2) The machine moves at the OPR speed in the
opposite direction of an OPR.
3) Deceleration processing is carried out by
"
Pr.39
Stop group 3 sudden stop
selection" when the near-point dog OFF is
detected.
4) After the machine stops, a machine OPR is
carried out in the OPR direction.
5) The machine OPR is completed after moving
the movement amount set in the "
Pr.50
Setting for the movement amount after near-
point dog ON".

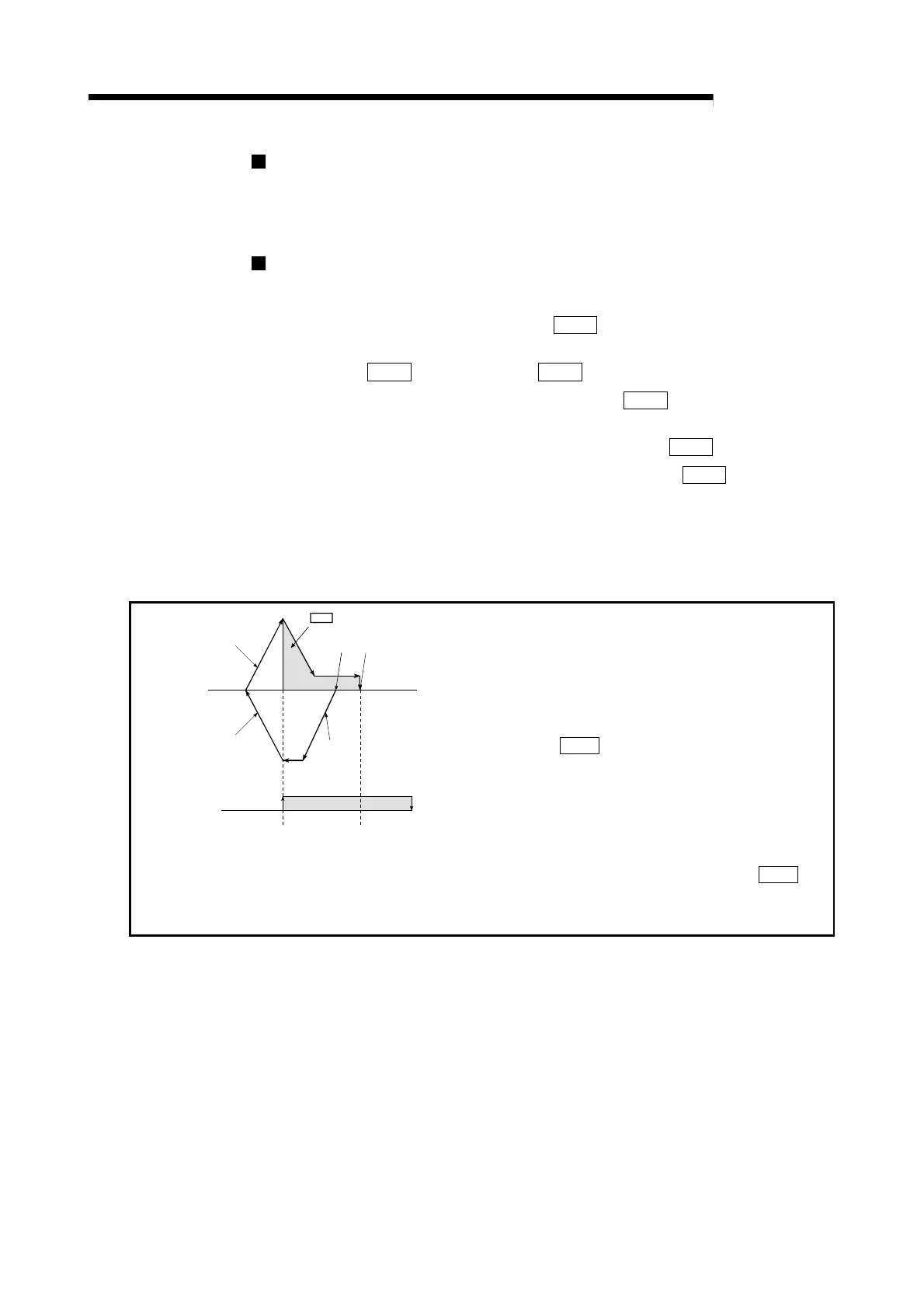

Fig. 8.15 Count method 2) machine OPR on the near-point dog ON position
(4) Turn OFF the near-point dog at a sufficient distance from the OP.
Although there is no harm in operation if the near-point dog is turned OFF
during a machine OPR, it is recommended to leave a sufficient distance from
the OP when the near-point dog is turned OFF for the following reason.
If machine OPRs are performed consecutively after the near-point dog is
turned OFF at the time of machine OPR completion, operation will be
performed at the OPR speed until the hardware stroke limit (upper/lower limit)
is reached.
If a sufficient distance cannot be kept, consider the use of the OPR retry
function.
To Next Page
