Mitsubishi QD75P1N User Manual

9 - 72
MELSEC-Q
9 MAJOR POSITIONING CONTROL

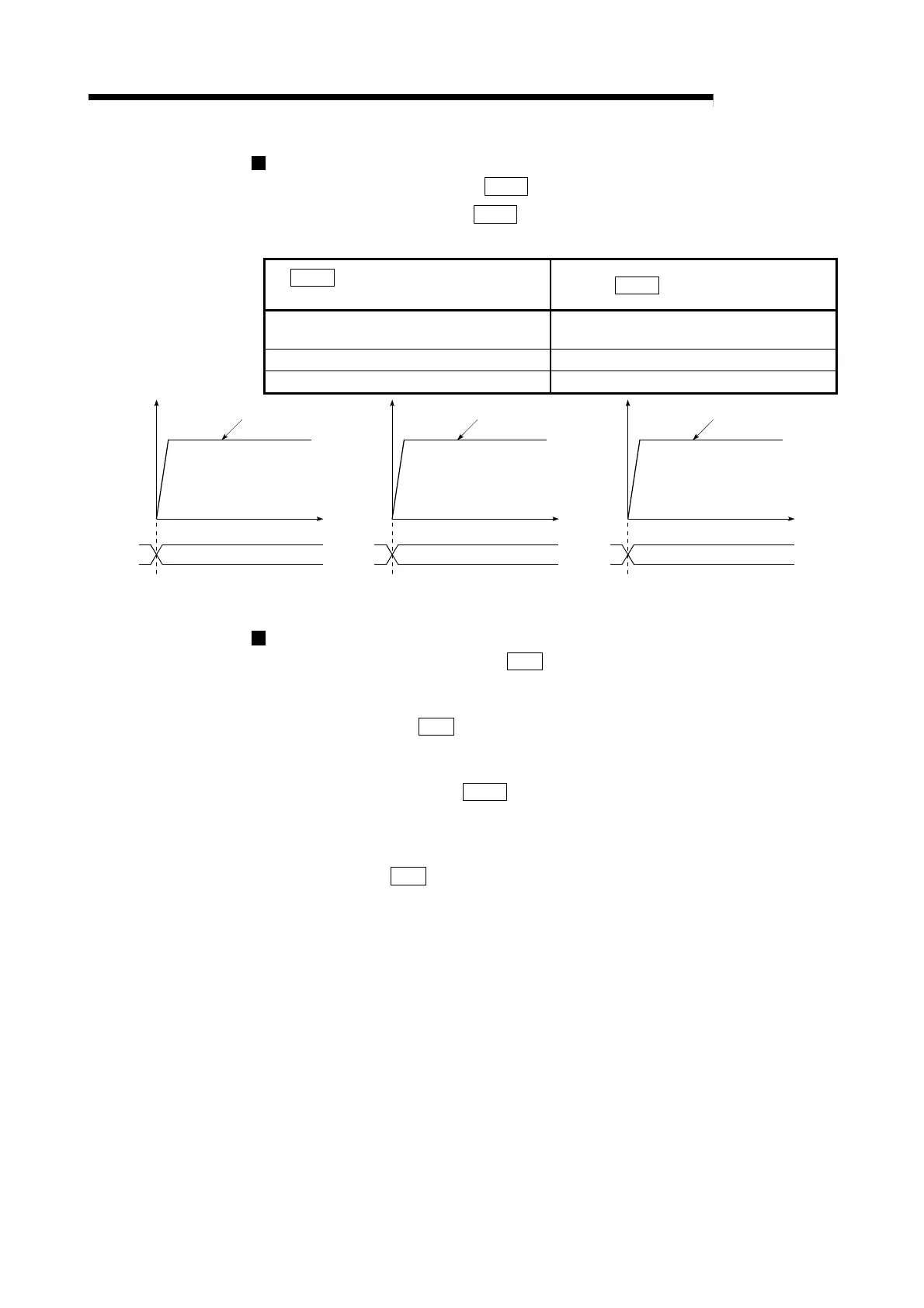

Current feed value during 1-axis speed control
The following table shows the "
Md.20
Current feed value" during 1-axis speed
control corresponding to the "
Pr.21
Current feed value during speed control"
settings.
"
Pr.21
Current feed value during speed
control" setting
Md.20
Current feed value
0: Do not update current feed value
The current feed value at speed control start
is maintained.
1: Update current feed value The current feed value is updated.
2: Zero clear current feed value The current feed value is fixed at 0.
Speed
t
In speed control
Current feed value during speed control start is maintained
(a) Current feed value not updated
t
Current feed value is updated
(b) Current feed value updated
(c) Current feed value zero cleared
t
0
Speed
In speed control
In speed control
Speed
Restrictions
(1) Set "Positioning complete" in "
Da.1
Operation pattern". An axis error
"Continuous path control not possible" (error code: 516) will occur and the
operation cannot start if "continuous positioning control" or "continuous path
control" is set in "
Da.1
Operation pattern".
("Continuous positioning control" and "continuous path control" cannot be set
in speed control.)
(2) Set the WITH mode in "
Pr.18
M code ON signal output timing" when using
an M code. The M code will not be output, and the M code ON signal will not
turn ON if the AFTER mode is set.
(3) An error "No command speed" (error code: 503) will occur if the current speed
(-1) is set in "
Da.8
Command speed".
(4) The software stroke limit check will not carried out if the control unit is set to
"degree".
