9 - 101
MELSEC-Q
9 MAJOR POSITIONING CONTROL
Restrictions
(1) The axis error "Continuous path control not possible" (error code: 516) will
occur, and the operation cannot start if "continuous path control" is set in
"
Da.1
Operation pattern".
(2) "Speed-position switching control" cannot be set in "
Da.2
Control system" of
the positioning data when "continuous path control" has been set in "
Da.1
Operation pattern" of the immediately prior positioning data. (For example, if
the operation pattern of positioning data No. 1 is "continuous path control",
"speed-position switching control" cannot be set in positioning data No. 2.) The
axis error "Continuous path control not possible" (error code: 516) will occur
and the machine will carry out a deceleration stop if this type of setting is
carried out.
(3) The error "No command speed" (error code: 503) will occur if "current speed
(-1)" is set in "
Da.8
Command speed".
(4) If the value set in "
Da.6
Positioning address/movement amount" is negative,
the error "Outside address range" (error code: 530) will occur.
(5) Even though the axis control data "
Cd.23
Speed-position switching control
movement amount change register" was set in speed-position switching
control (ABS mode), it would not function. The set value is ignored.
(6) To exercise speed-position switching control (ABS mode), the following
conditions must be satisfied:
(a) "
Pr.1
Unit setting" is "2: degree"
(b) The software stroke limit function is invalid (upper limit value = lower limit
value)
(c) "
Pr.21
Current feed value during speed control" is "1: Update current
feed value"
(d) The setting range of "
Da.6
Positioning address/movement amount" is
within 0 to 359.99999 (degree)
(If the value is outside of the range, the error "Outside address range"
(error code: 530) will occur at the start.)
(e) The "
Pr.150
Speed-position function selection" setting is "2: Speed-
position switching control (ABS mode)".
(7) If any of the conditions in (6)(a) to (6)(c) is not satisfied in the case of (6)(e),
the error "Speed-position function selection error" (error code: 935) will occur
when the PLC READY [Y0] turns from OFF to ON.
(8) If the axis reaches the positioning address midway through deceleration after
automatic deceleration started at the input of the speed-position switching
signal, the axis will not stop immediately at the positioning address. The axis
will stop at the positioning address after N revolutions so that automatic
deceleration can always be made. (N: Natural number)

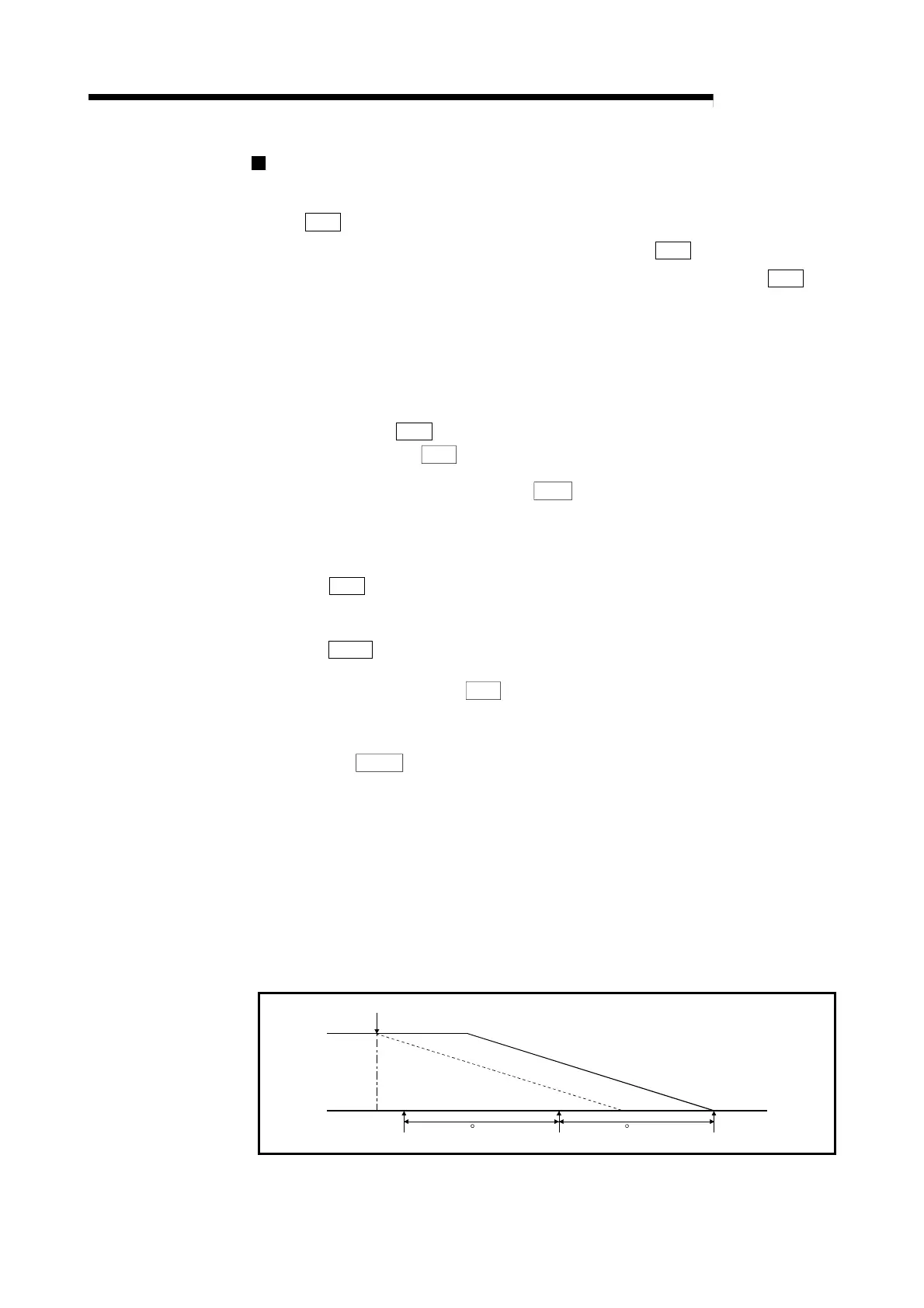

In the following example, since making deceleration in the path of dotted line
will cause the axis to exceed the positioning addresses twice, the axis will
decelerate to a stop at the third positioning address.
Speed-position switching signal
positioning address
360 added 360 added
positioning address positioning address
