Mitsubishi QD75P1N - Page 463

10 - 27
MELSEC-Q
10 HIGH-LEVEL POSITIONING CONTROL

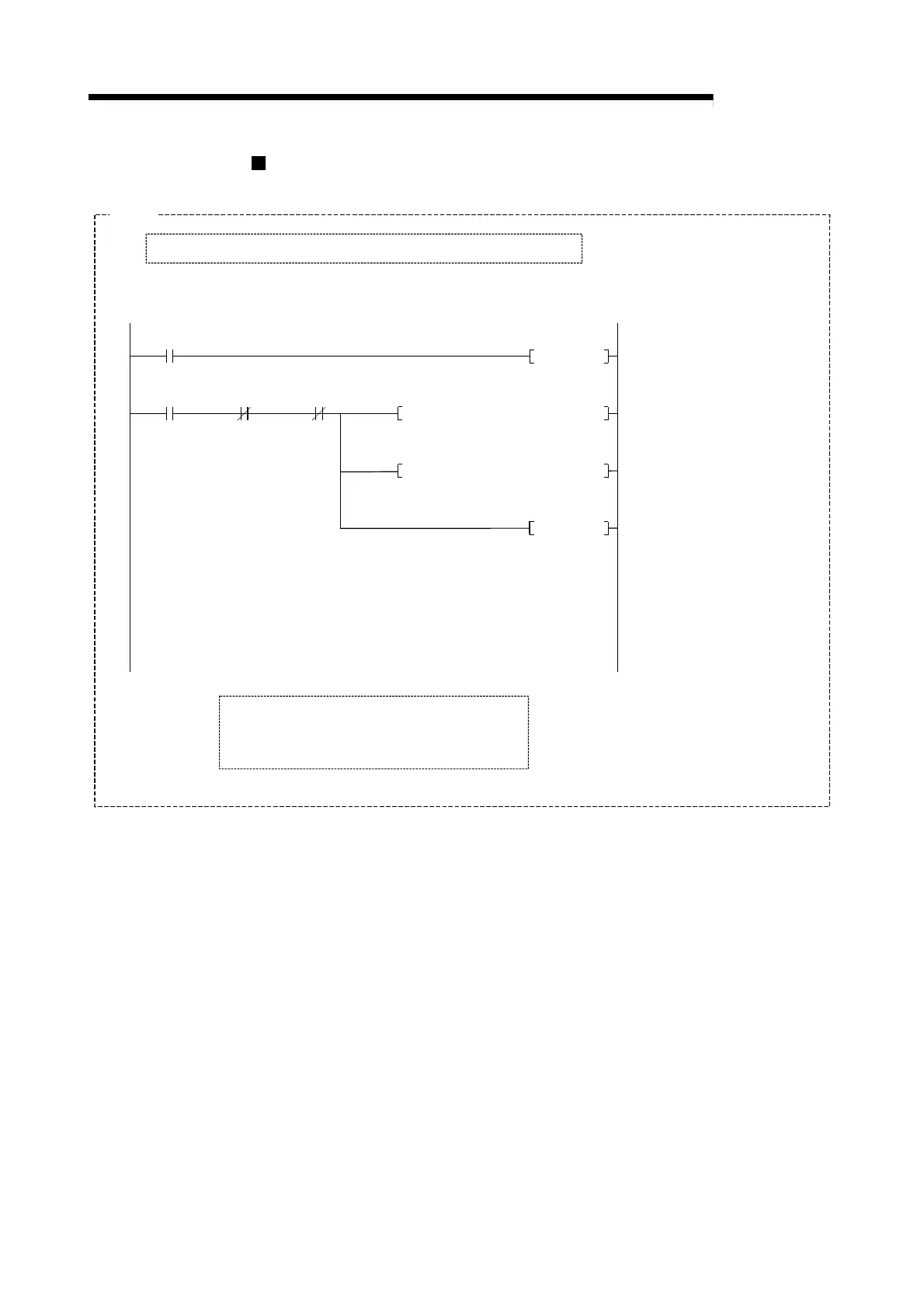

Creating the program
<Pulse the positioning start command.>
M104PLS
Y10
M104
<Turn ON the positioning start signal.>
Y10SET
K1K1K1501H0TO
<Write the positioning start point No.>
K1K7000K1500H0TO
<Write the positioning data No. 7000
for block positioning.>
X10
Set the block start data beforehand.
Y10: Positioning start signal
X10: Start complete signal
M104: Positioning start command pulse
Example
Positioning
start
command
