8 INSPECTION AND MAINTENANCE
Mitsubishi Diesel Engine S12R OPERATION & MAINTENANCE MANUAL
128
Pub. No. 291Y1-40720 Revision: 5

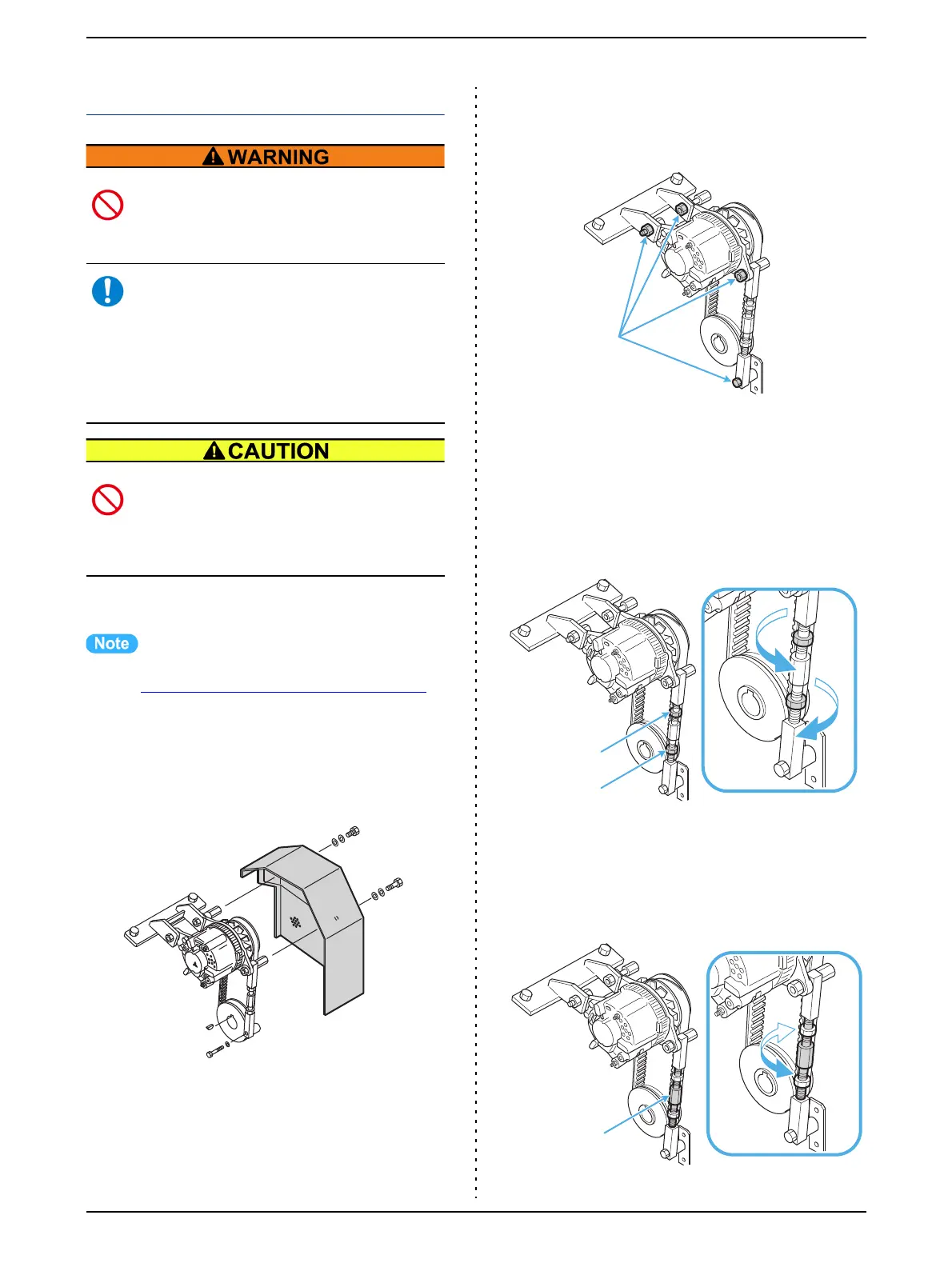

Belt Tension (Alternator) - Adjust
Adjust the alternator belt tension.
• For the location of the alternator, refer
to "2
ENGINE - OUTLINE" (→ Page 75).
1 Remove the belt cover of the
alternator.
• Tool: Wrench
Fig. 8-5 Belt Cover - Remove
2 Loosen all retaining bolts (1) of the
alternator and the adjusting rod.
•Tool: Wrench
Fig. 8-6 Belt Tension - Adjust (Retaining Bolt)
3 Loosen the lock nut of adjusting rod.
• The upper lock nut (2) has a right-hand
thread.
• The lower lock nut (3) has a left-hand thread.
•Tool: Wrench
Fig. 8-7 Belt Tension - Adjust (Lock Nut)
4 Turn the turn buckle (4) of the
adjusting bolt to adjust the belt
tension.
Fig. 8-8 Belt Tension - Adjust (Turn Buckle)
Stay away from rotating parts during
operation.
* Otherwise you may get caught in the rotating
parts and seriously injured.
Adjust the belt tension properly in
accordance with the procedures
recommended by MHIET.
* Otherwise, the service life of the alternator,
bearing, or belt may be shortened.
* After you replaced the belt with a new one,
check the tension again after the initial stretch
of the belt is settled.
Keep the belt for the crankshaft
pulley or alternator free from oil and
grease.
* Otherwise, a slip may occur, which shortens the
service life of the belt.
(1)
(3)
(2)
(4)
